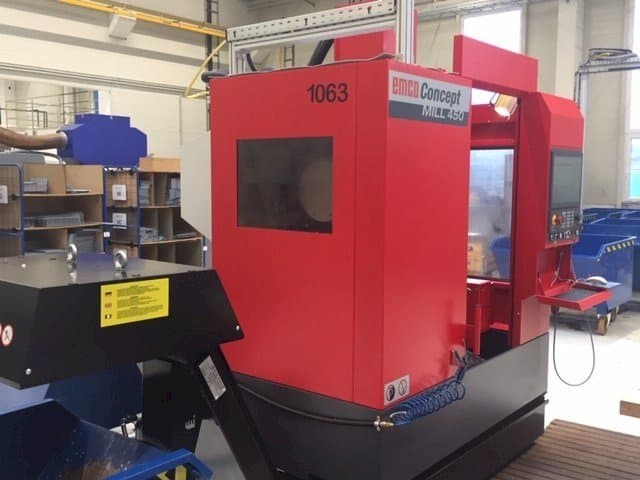

Front view of EMCO Concept Mill 450 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

EMCO Concept Mill 450

Photo Gallery

EMCO - Concept Mill 450AT-MIL-EMC-2017-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO Concept Mill 450 - Milling Machine

Show in original language

This EMCO Concept Mill 450 Milling Machine was made in Austria in the year 2017. It has been working for only 6855 hours since then. It is equipped through a Emco Win NC control unit. This machine can work with a spindle speed between 50 to 12000 rpm. This machine is as good as new, and has only been used for educational purposes.

Overview

brand: EMCO
year: 2017
MODEL: Concept Mill 450
production hours: 6855
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: EMCO

Technical Information - EMCO Concept Mill 450

General Data

Measurements width: 2040 mm
Measurements depth: 2545 mm
Measurements height: 2920 mm
Machine weight: 4200 kg

Control Unit

Model: WIN NC
CNC main language: German
CNC language customizable: Yes
Brand: EMCO

Main drive

Number of spindles: 1
Spindle speed range: 50 - 12000 1/MIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 700 mm
Outer width: 520 mm
Distance between: 100 mm

Tools

Slots in storage: 20
Max weight: 8 KG
Max tool diameter: 80 - 125 mm
Max tool length: 250 mm
Type of tool holder: SK40 DIN 69871

Media

Main electronic connection: 3x400 V

Additional Information

Additional equipment

4 axes indexable

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
