EMCO E45 SMY Lathe

Show in original language

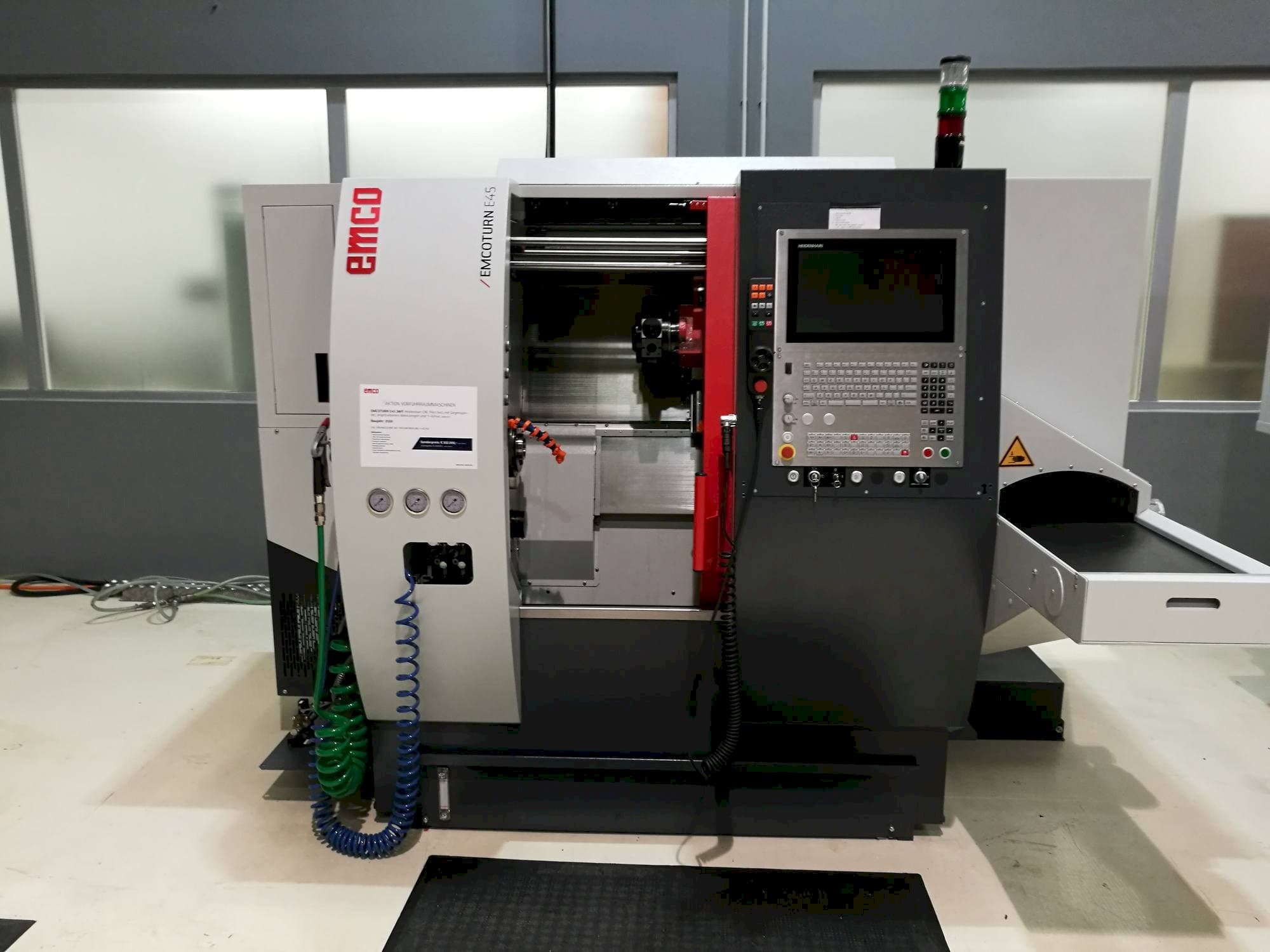

This EMCO E45 SMY Lathe was built in 2018 in Austria, and was used as demo machine. It is operated through a Heidenhain CNC Pilot 640 control unit. It counts with a spindle speed up to 5000 rpm. This machine is equipped with a counter spindle, a driven tools, and an electrical hand wheel. It is as new.

Overview

brand: EMCO
year: 2018
MODEL: E45 SMY
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - EMCO E45 SMY

General Data

Measurements width: 2275 mm
Measurements depth: 1790 mm
Measurements height: 1958 mm
Machine weight: 4000 kg

Control Unit

Model: CNC Pilot 640
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 2
Spindle speed range: 0 - 5000 1/MIN

Movement

X-AXIS Movement: 160 mm
Y-AXIS Movement: 70 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece drm over bed: 220 mm

Turret

Number of turrets: 1

Tools

Type of tool holder: VDI30

Media

Main electronic connection: 3 x 400 V

Additional equipment

- Counter spindle
- Y axes
- Driven tool
- 14 bar high pressure
- Toll measuring radial
- Machine status lamp (Green Red Yellow)
- Worlpiece catching device
- Electric hand-wheel

Additional Information

Machine history

Material type: Steel, aluminum
End product: Parts

Machine Benefits

Technical Machine Benefits:
- - High thermo stability
- - High precision
- - Y-axes
Qualitative Machine Benefits:
- - Austrian quality
- - Unused
- - Just as demo
- - As new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
