➤ Used EMCO EmcoMill E900 For Sale | gindumac.com

Show in original language

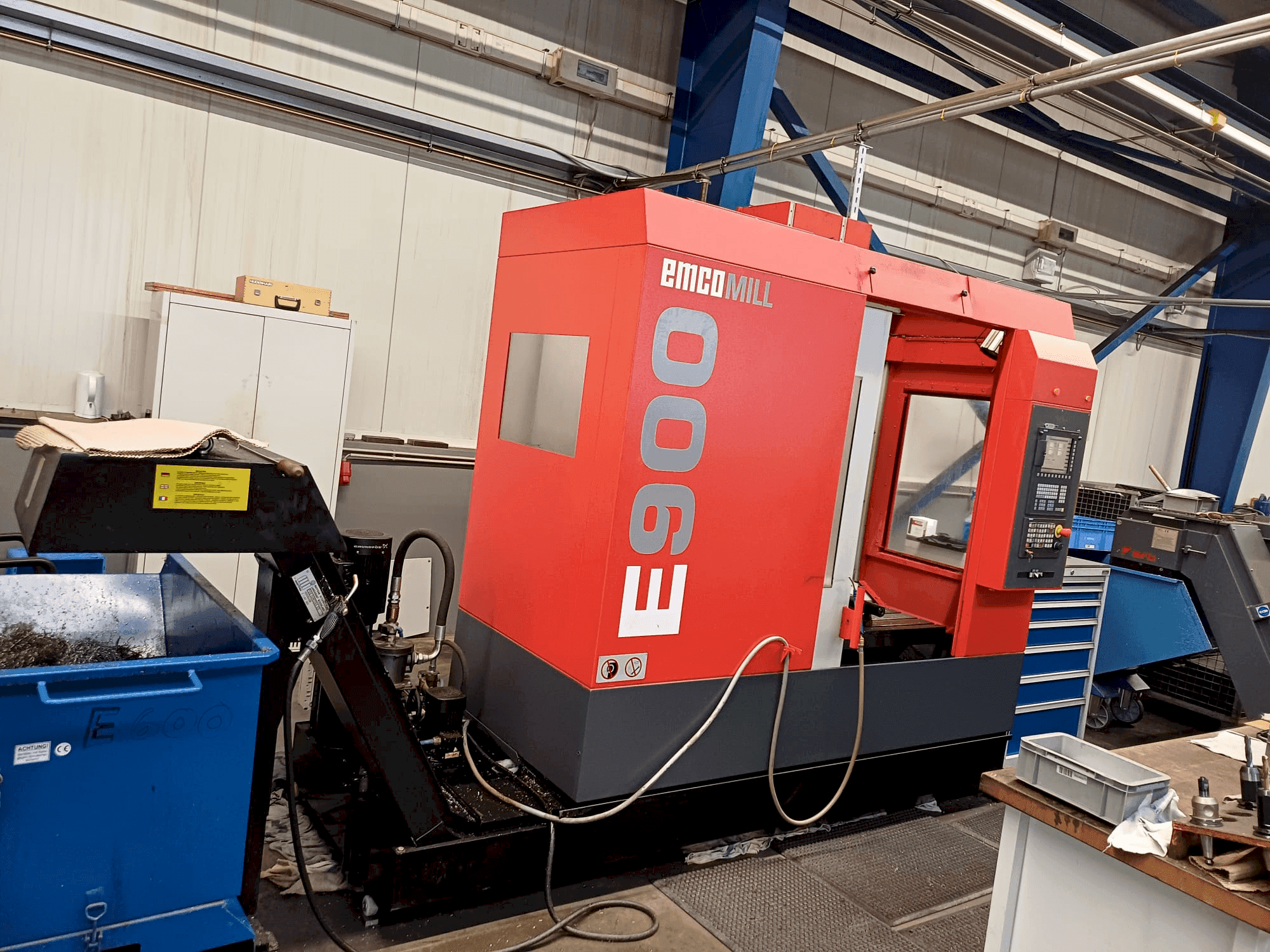

This 3-axis EMCO EmcoMill E900 was manufactured in 2014. A vertical machining center featuring a Siemens 828D control, it offers a spindle speed up to 12,000 rpm and torque of 83 Nm. It has a travel distance of X 900mm, Y 500mm, Z 500mm, and a rapid traverse rate of 24m/min. The machine includes a chip conveyor, a 360l cooling medium tray, and a 20-tool magazine. If you are looking to get high-quality milling capabilities consider the EMCO EmcoMill E900 machine we have for sale. Contact us for more information.

Overview

brand: EMCO
year: 2014
MODEL: EmcoMill E900
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - EMCO EmcoMill E900

Control Unit

Brand: SIEMENS
Model: 828 D

Main drive

Spindle speed range: 50-12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 900 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 1000 mm
Outer width: 520 mm
Min distance between vertical spindle and table: 100 mm
Max distance between vertical spindle and table: 600 mm
Table load: 800 kg

Tools

Slots in storage: 20

Media

Chip conveyor: Yes

Additional equipment

- Rinsing gun
- Cooling medium tray 360l
- IKZ 15 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 83 nm
- - Cast iron table with t-slots: number-width-distance 5-18-100
- - Automatic workpiece measurement: heidenhain ts 640 measuring probe

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
