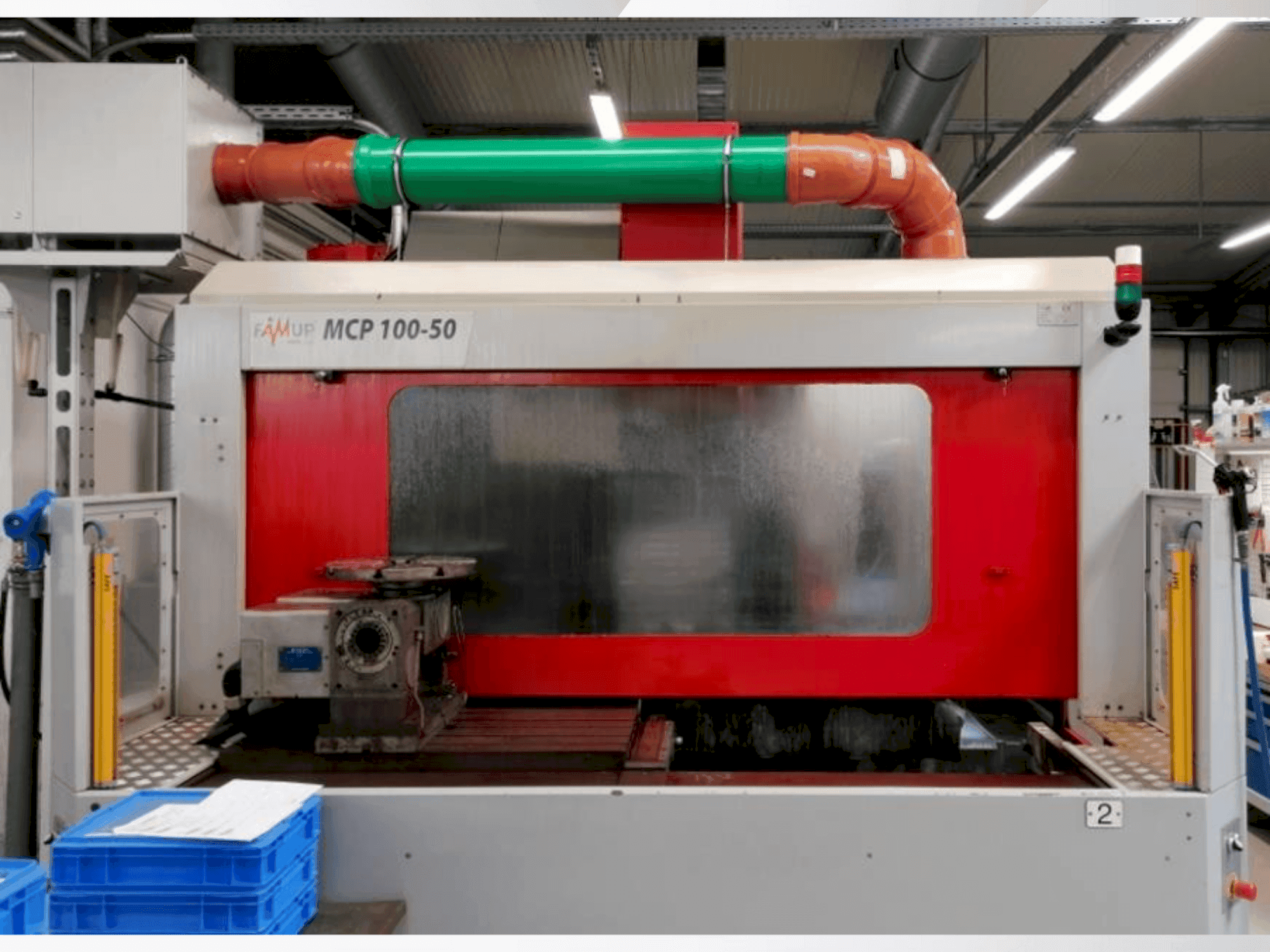

This 3-axis EMCO FamUp MCP 100-50 vertical machining center was manufactured in 2007. It features a Siemens 840-D control system, a 2-fold pallet changer, and a 30-fold tool changer with holders. The machine includes a screw chip conveyor and a fully protected cabin with safety doors. Ideal for operations requiring a table load up to 600 kg and speeds up to 10,000 rpm. Reach out for further details regarding this vertical machining center.

Overview

brand: EMCO
year: 2007
MODEL: FamUp MCP 100-50
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - EMCO FamUp MCP 100-50

Control Unit

Model: 840-D
Brand: SIEMENS

Main drive

Spindle speed range: 50 - 10000 1/MIN

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 640 mm

Table

Outer length: 1000 mm
Outer width: 450 mm
Table load: 600 kg

Additional equipment

- 2-fold pallet changer
- 1 spindle cooling
- Linear guide
- 30-fold tool changer incl. tool holders
- Coolant preparation with cooling incl. filter unit
- Screw chip conveyor
- Fully protected cabin with safety doors, electrically fused
- Ball screw in all axes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine only ran in 1-shift operation, maximum 3 days a week

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
