➤ Used EMCO TURN 332 MCPlus For Sale | gindumac.com

Show in original language

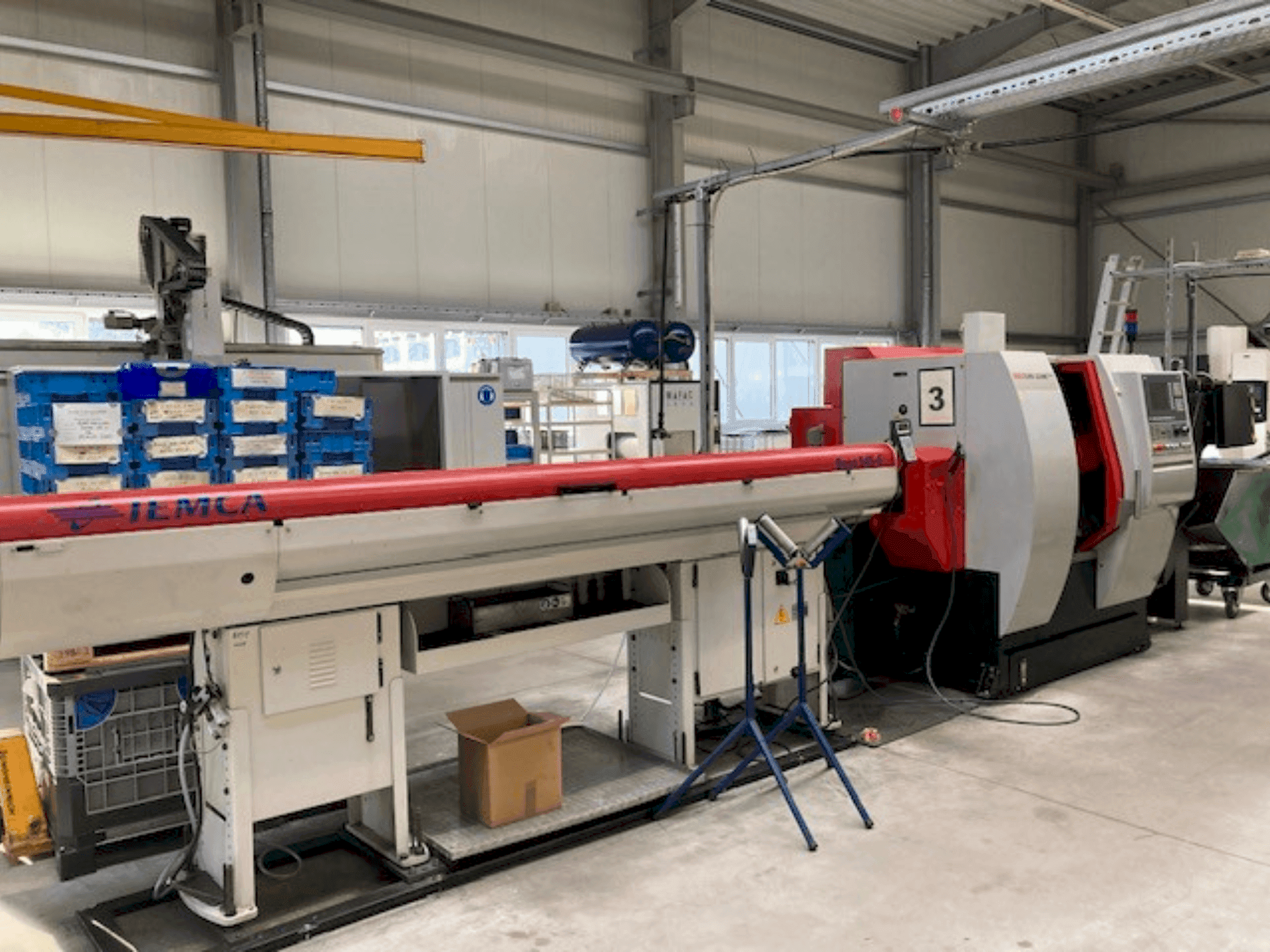

This 4-axis EMCO TURN 332 MCPlus was manufactured in 2004. It features a CNC lathe with dual spindles capable of speeds up to 6300 and 7000 rpm respectively, and two 12-slot tool turrets. Includes high-pressure coolant systems, a chip conveyor, and a bar feeder for efficient operation. Ideal for precision turning tasks. Contact us for more information about this machine.

Overview

brand: EMCO
year: 2004
MODEL: TURN 332 MCPlus
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO TURN 332 MCPlus

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Number of spindles: 2
Spindle speed range: 6300 1/MIN
Spindle motor power: 10 KW
Number of axis: 4

Table

Number of tslots: 12

Turret

Number of turrets: 2
Tool taper: VDI 25

Media

Chip conveyor: Yes

Additional equipment

- Oil mist separator
- 2 coolant pumps for spindle flushing
- 2 high-pressure coolant pumps (10 bar)
- Parts ejector with flushing through counter spindle
- Bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar diameter: 6-45 mm
- - Bar length: 3000 mm
- - C-axis for main and counter spindle
- - Provided are at least 15 tool holders and 15 collets (hainbuch)
- - 2 x 12-slot tool turret vdi 25
- - For up to 2 x 12 driven tools
- - Maximum power: 5 kw, 6000 rpm

Extra information

- 2024 keyboard/control Boss Genius from the 3 meter bar feeder was purchased new.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
