➤ Used Engel Insert 200V/60 rotary | Moulding

Show in original language

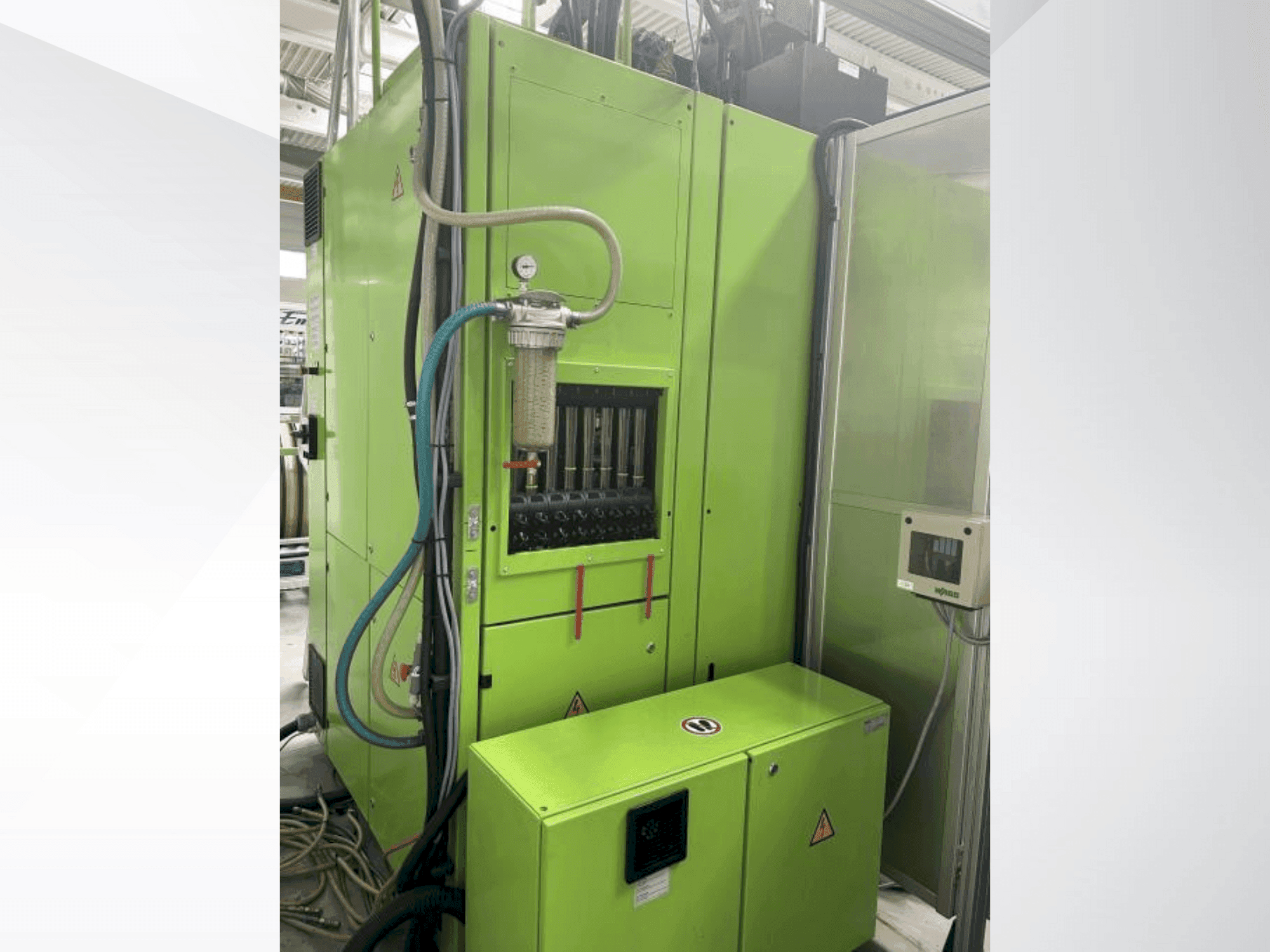

This Engel Insert 200V/60 rotary was manufactured in 2013. A vertical injection moulding machine, it represents a reliable option for precision moulding tasks. Consider the opportunity to buy this Engel Insert 200V/60 rotary vertical injection moulding machine. Contact us for more information.

Overview

brand: Engel
year: 2013
MODEL: Insert 200V/60 rotary
application type: Injection Moulding
Location: Germany
machine type: Vertical Injection Moulding Machine

Technical Information - Engel Insert 200V/60 rotary

Injection Unit

Screw diameter: 35 mm, 40 mm, 45 mm
Injection pressure: 1703 bar, 1297 bar, 1030 bar
Screw speed: 400 r/min, 320 r/min (current)
Nozzle pressure: 51.9 kN

Clamping unit

Clamping force: 800 kN
Opening stroke: 458 mm
Ejector stroke: 100 mm
Ejector force for / back: 39.8 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max swept volume: 192 cm³, 251 cm³, 318 cm³
- - Injection rate: 151 cm³/s, 197 cm³/s, 250 cm³/s
- - Increased injection rate: 98 cm³/s, 128 cm³/s, 162 cm³/s
- - Increased specific injection pressure: 2390 bar, 2023 bar, 1598 bar
- - Nozzle stroke: 300 mm
- - Pump drive power: 15 kw
- - Viper is included / 43684 operating hours

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
