➤ Used Engel Insert 80V/40 For Sale | gindumac.com

Show in original language

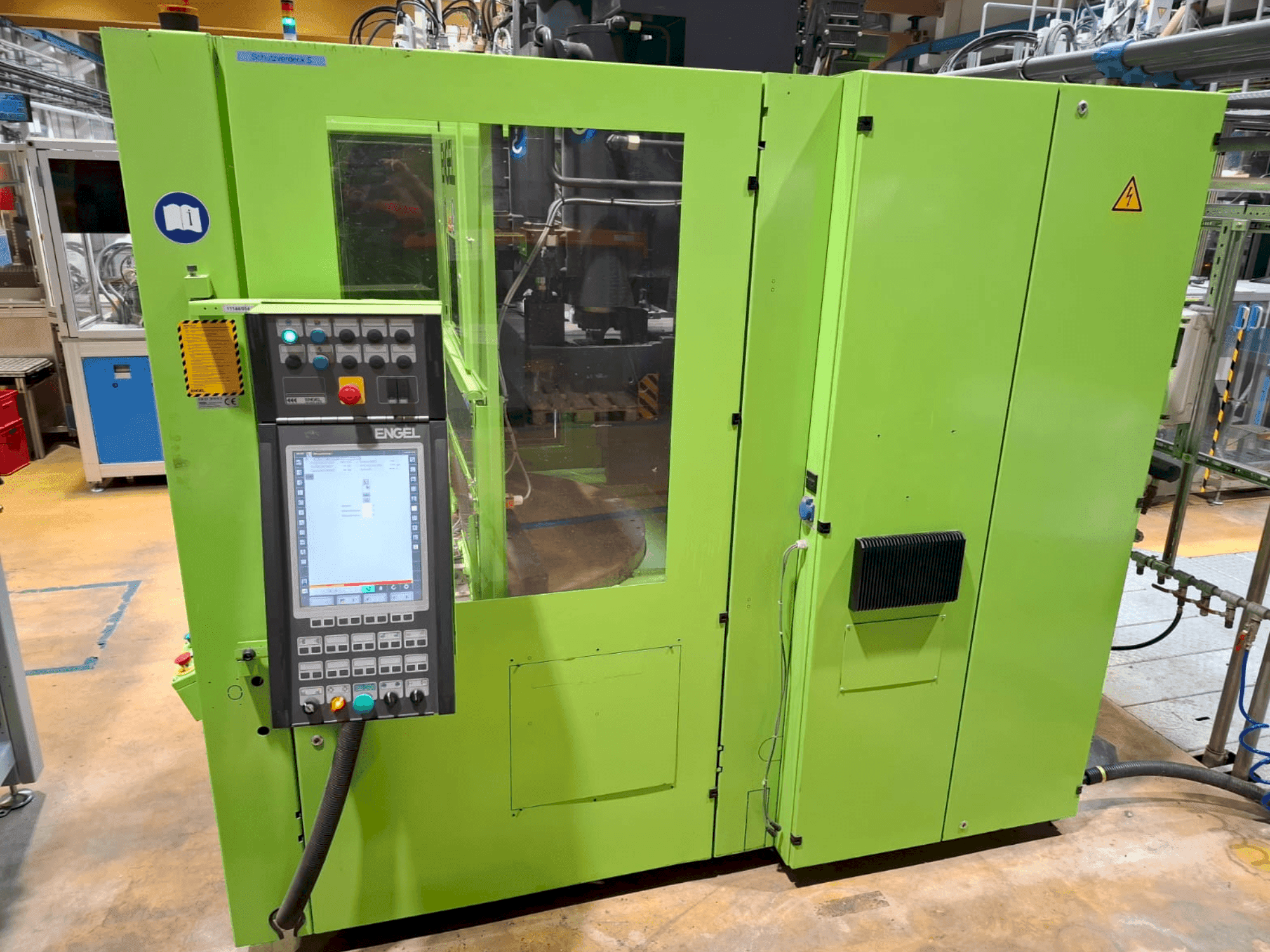

This Engel Insert 80V/40 was manufactured in 2011. A vertical injection moulding machine, it's ideal for precision thermoplastic parts. Consider the opportunity to buy this Engel Insert 80V/40 vertical injection moulding machine. Contact us for more information.

Overview

brand: Engel
year: 2011
MODEL: Insert 80V/40
application type: Injection Moulding
Location: Austria
machine type: Vertical Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel Insert 80V/40

General Data

Machine weight: 5850 kg

Control Unit

Brand: ENGEL
Model: n/a

Injection Unit

Screw diameter: 18 mm
Stroke volume: 25 cm³
Injection pressure: 2200 bar
Plasticizing rate max.: 36 cm³/s
Screw speed: 450 r/min
Nozzle pressure: 28.3 kN

Clamping unit

Clamping force: 400 kN
Opening stroke: 338 mm
Ejector force for / back: 20.1 kN

Media

Pump drive power: 15 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ejector travel: 105 mm
- - Nozzle travel: 380 mm
- - Turntable diameter: 1200 mm
- - Rotary table drive: hydraulic
- - Ejector drive: hydraulic
- - Connected load: 22 kw
- - Maximum opening 520mm /minimum opening 185mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
