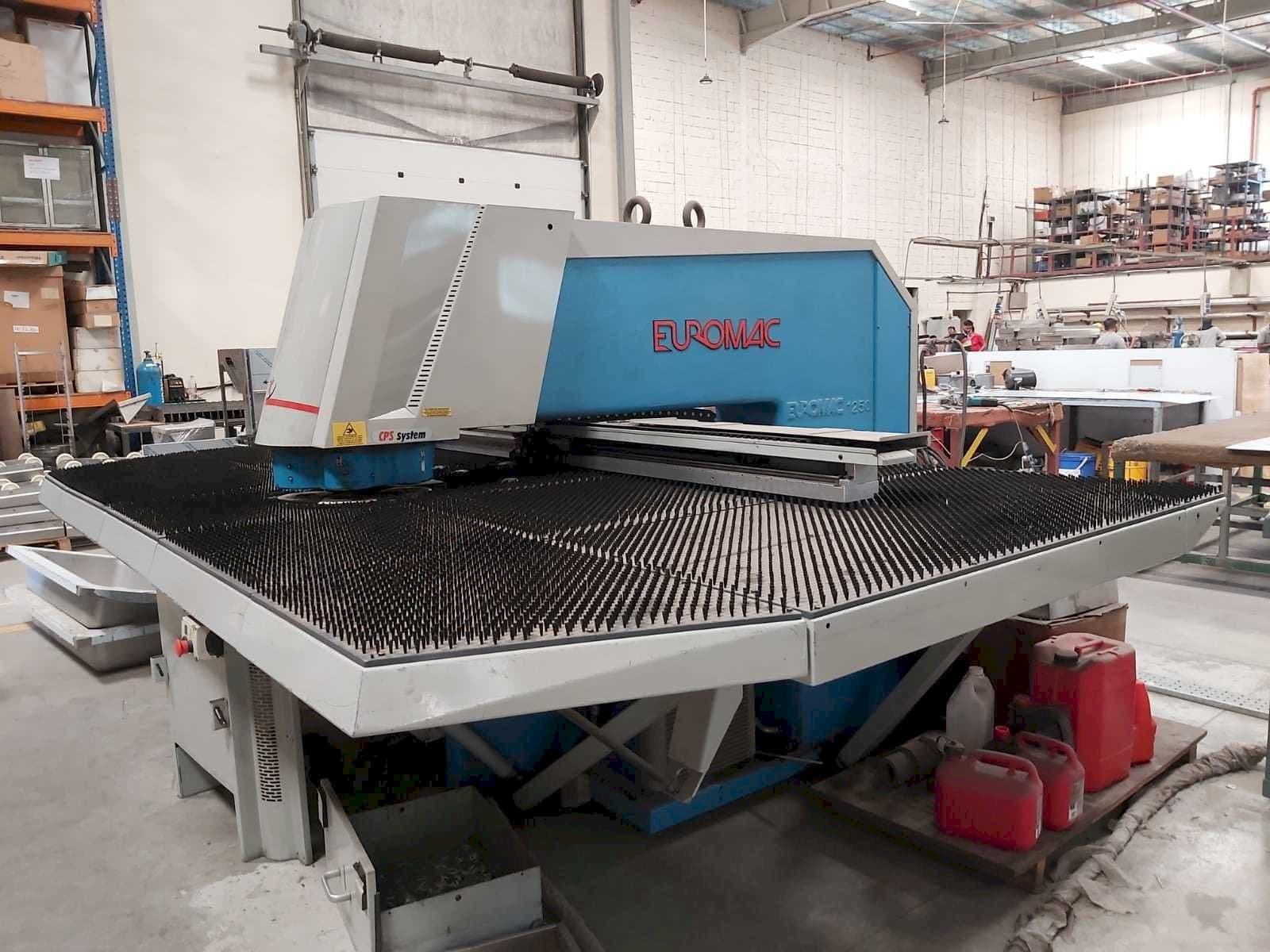

Euromac MTX 1250 Punching machine

Show in original language

This Euromac MTX 1250 Punching machine was made in the year 2007 in Italy. This machine is controlled by a control unit of the same brand. This machine comes with a punching force of 300 kN. Tools set is available for selling optionally

Overview

brand: Euromac
year: 2007
MODEL: MTX 1250
application type: Punching
Location: United Arab Emirates
machine type: CNC Punch Press
availability: Sold

Technical Information - Euromac MTX 1250

General Data

Machine weight: 8400 kg

Main drive

Pressing force: 300 kN
Punching force: 300 kN
Maximum sheet thickness: 0.6-6 mm
Main motor power: 7.5 kW

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1300 mm

Tools

Number of index: 3
Number of stations: 6

Max Material thickness

Steel: 6 mm
Stainless steel: 5 mm
Aluminum: 6 mm

Media

Main electronic connection: 400 V/50 HZ
Power consumption: 7,5 kW
Oil tank: 135 L

Additional equipment

- MULTITOOL

Additional Information

Machine history

Material type: Stainless steel
Material thickness: 6 mm
End product: Electrical cabinets
Industries: Power industry

Machine Benefits

Technical Machine Benefits:
- - Automatic repositioning up to 10000 mm
- - Working height 980 mm
- - Single tool thick turret
- - Max punch stroke thick turret 30 mm
- - Max opening of standars clamps 7 mm
Qualitative Machine Benefits:
- - Very less working time
- - All parts are in perfect conditon
- - Done the full inspection and general maintenance a month ago

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
