➤ Used FANUC α-D14MiA - 2016 - Vertical Machining Center

Show in original language

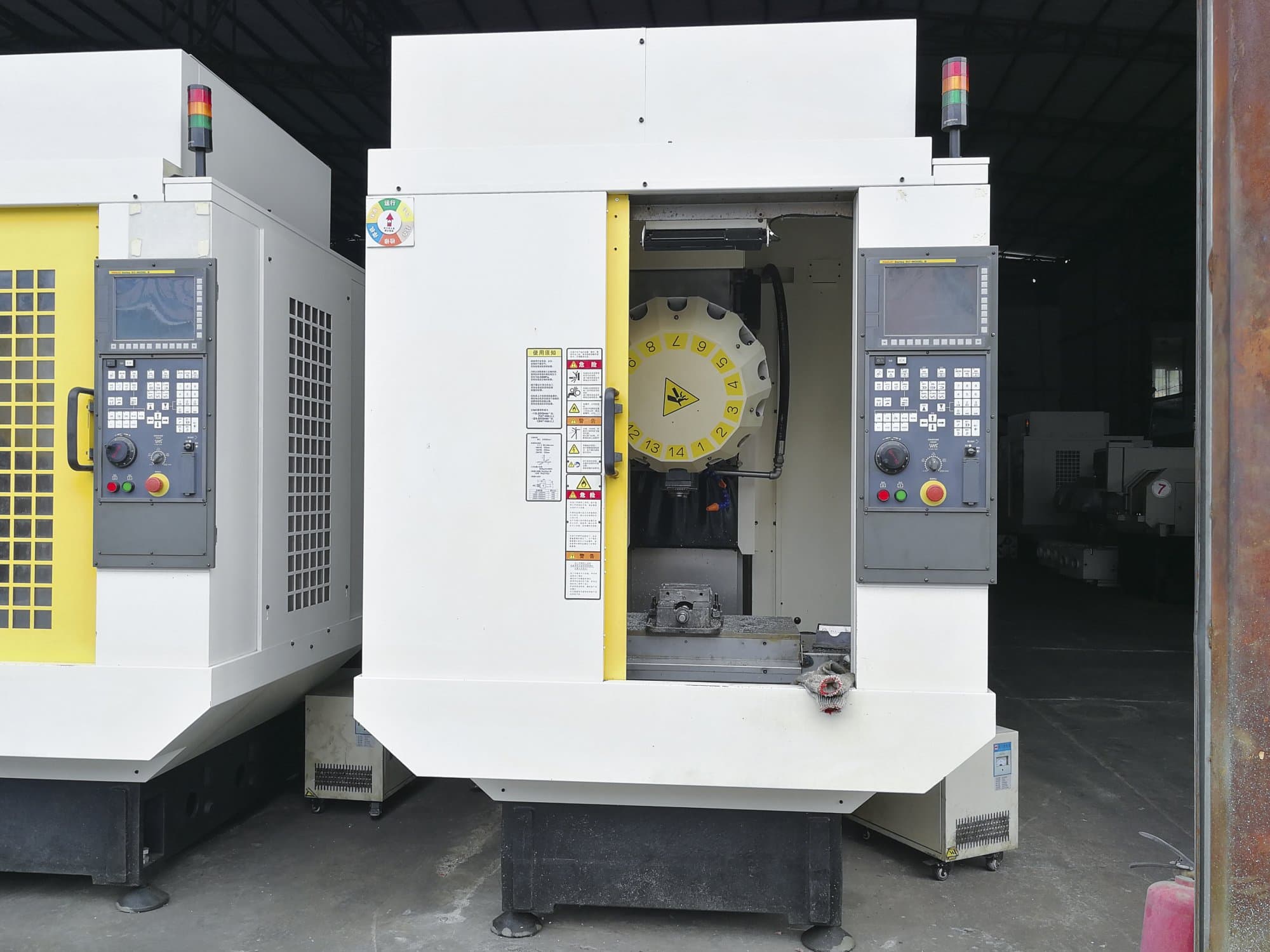

This FANUC α-D14MiA Machining Center was built in Japan in year 2016 in Japan and has a record of estimated 2190 production hours. With a FANUC 31i-B Control unit, the machine stands in excellent conditions as it is a very young equipment with few working hours. Additionally, the model stands out for its compact size and for offering a stable operation and high-efficiency results.

Overview

brand: FANUC
year: 2016
MODEL: α-D14MiA
production hours: 2190
application type: Milling
Location: China
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC α-D14MiA

General Data

Measurements width: 1565 mm
Measurements depth: 2236 mm
Measurements height: 2040 mm
Machine weight: 2000 kg

Control Unit

Model: 31i-B
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/min
Spindle motor power: 26 kW
Spindle bore: 0.006 - 0.02 mm

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece x: 650 mm
Workpiece y: 400 mm
Workpiece z: 150-480 mm
Workpiece weight: 300 kg

Table

Outer length: 1565 mm
Outer width: 2040 mm
Height adjustment: 2.236±10 mm
TSlots size: 14x125x3 mm
Number of tslots: 3
Distance between: 125 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 480 mm

Tools

Slots in storage: 14
Max weight: 2 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Media

Power consumption: 10 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
