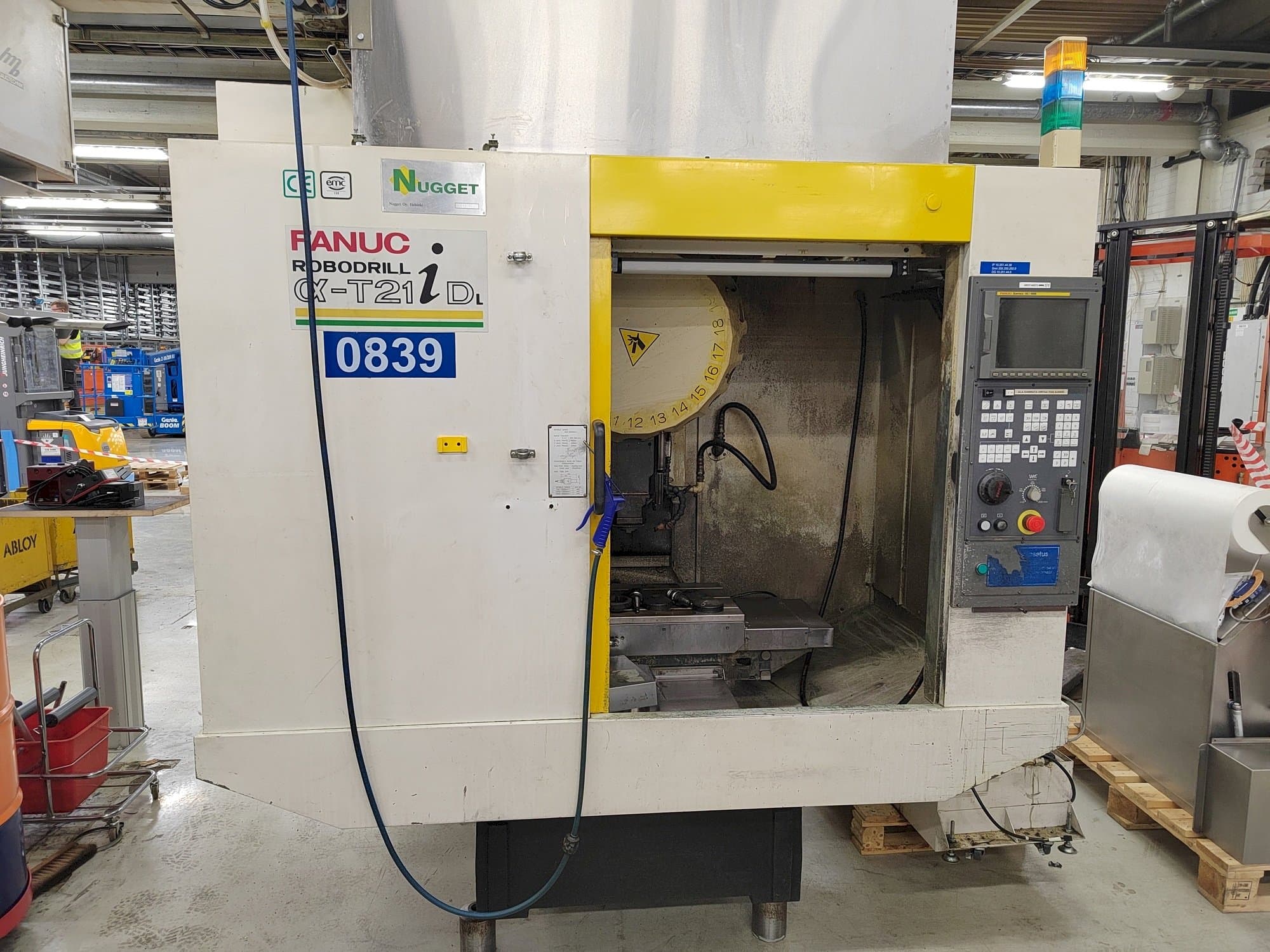

Front view of FANUC Robodrill Alpha-T21iDL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill Alpha-T21iDL

Photo Gallery

FANUC - Robodrill Alpha-T21iDLFI-MIL-FAN-2003-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC Robodrill Alpha-T21iDL Vertical Machining

Show in original language

This FANUC Robodrill Alpha-T21iDL Vertical Machining center was manufactured in 2003 in Japan. It is equipped with Fanuc Series 16i-MB control unit and has 3 axis. The machine has a spindle speed of 20000 rpm and has lubricating tank with pump as additional equipment.

Overview

brand: FANUC
year: 2003
MODEL: Robodrill Alpha-T21iDL
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha-T21iDL

General Data

Measurements width: 2115 mm
Measurements depth: 2040 mm
Measurements height: 2600 mm
Machine weight: 2200 kg

Control Unit

Model: Series 16i-MB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 21
Type of tool holder: BT 30

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Lubricating tank with pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
