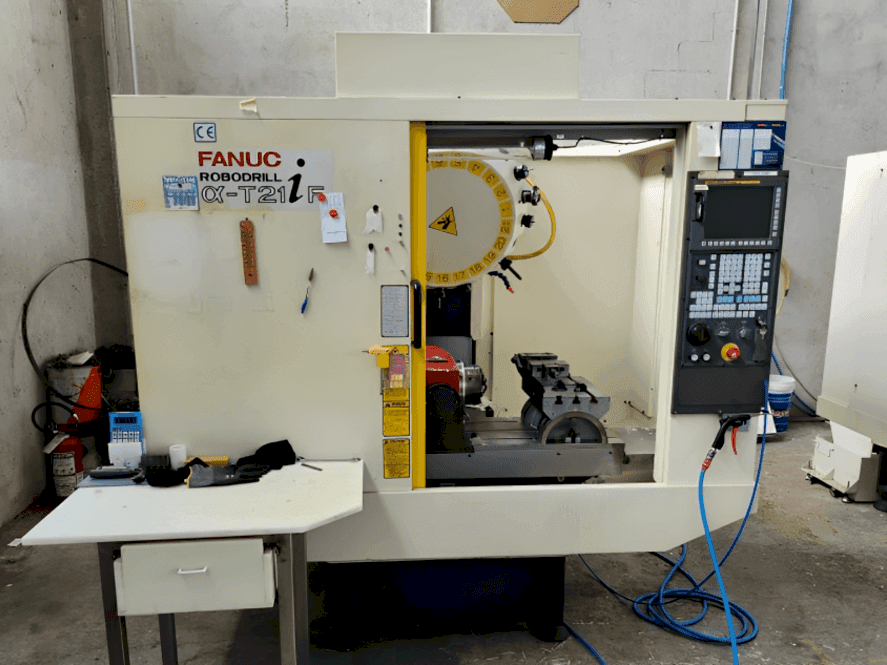

Front view of FANUC Robodrill Alpha T21iF machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill Alpha T21iF

Photo Gallery

FANUC - Robodrill Alpha T21iFIT-MIL-FAN-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC Robodrill Alpha T21iF Vertical Machining center

Show in original language

This FANUC Robodrill Alpha T21iF Vertical Machine Center was built in the year 2008. It is equipped with a Fanuc 31i A5 CNC control unit and has 5 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: FANUC
year: 2008
MODEL: Robodrill Alpha T21iF
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha T21iF

General Data

Measurements width: 1570 mm
Measurements depth: 2040 mm
Measurements height: 2240 mm
Machine weight: 2100 kg

Control Unit

Model: 31i A5
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5,5 kw
Number of axis: 5

Movement

X-AXIS Movement: 700 mm
X-AXIS Rapid traverse: 54 M/Min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 54 M/Min
Z-AXIS Movement: 330 mm
Z-AXIS Rapid traverse: 54 M/Min

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 250 kg

Tools

Slots in storage: 21

Additional Information

Additional equipment

Continuous Table 5th Axis T5x 200

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
