Feeler QM-22A Machining Center

Show in original language

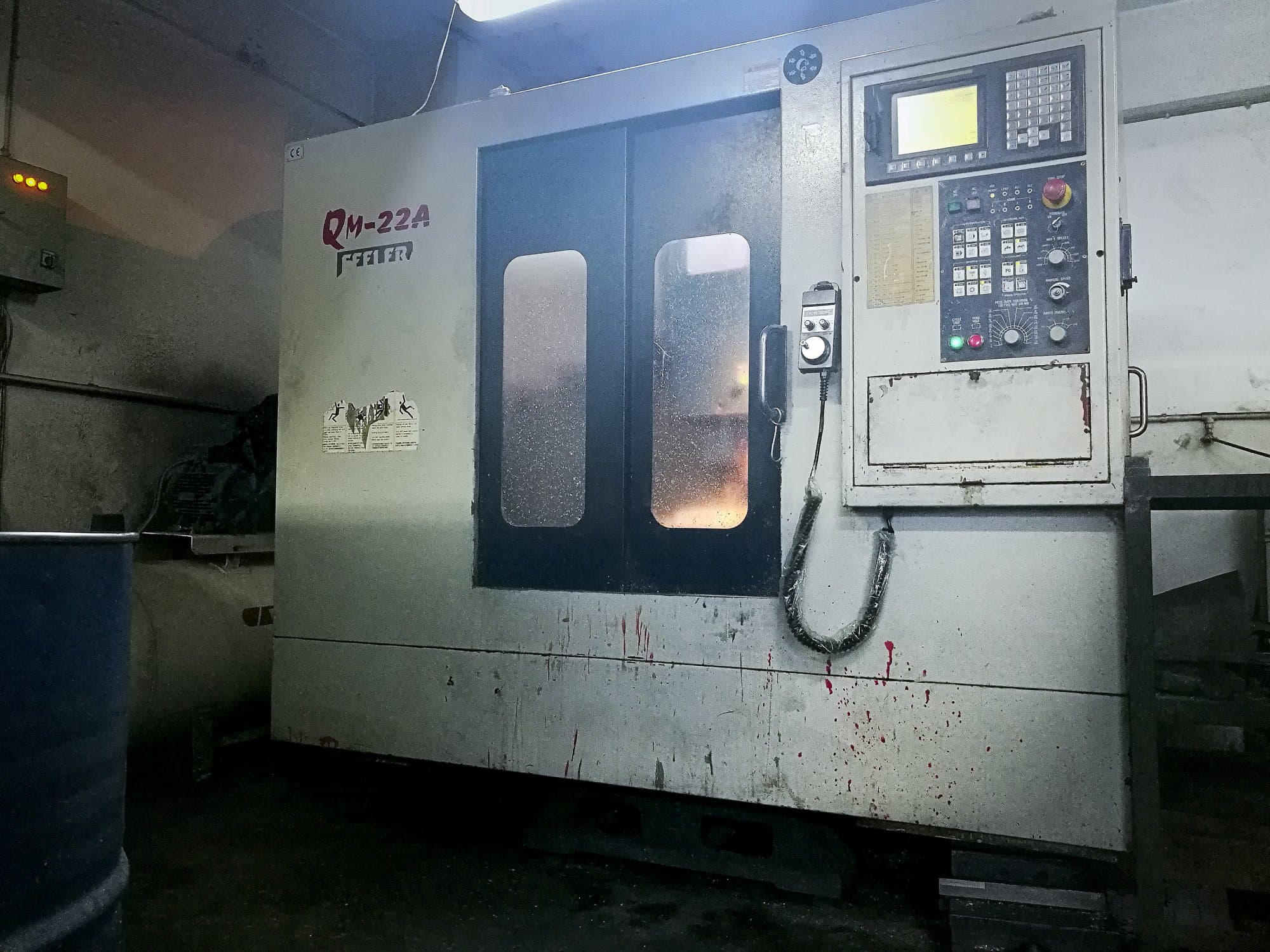

This Feeler QM-22A Machining Center from 2006 is operated through a FANUC 0i-MC Control unit and comes with a spacious table of 1100 x 600 millimeters (L x W). The equipment stands out for its 20x tool changer, which allows a quicker operation and a reduction of non-productive time, as well as for its high spindle speed (measurable in 10000 rounds per minute).

Overview

brand: Feeler
year: 2006
MODEL: QM-22A
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Feeler QM-22A

General Data

Measurements width: 2645 mm
Measurements depth: 3875 mm
Measurements height: 3140 mm
Machine weight: 3000 kg

Control Unit

Model: 0i-MC
Remote control: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min
Spindle motor power: 11 kW
Tool taper: 40

Movement

X-AXIS Movement: 1020 mm
X-AXIS Working Feed: 0-24 m/min
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 0-24 m/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Working Feed: 0-24 m/min
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1100 mm
Outer width: 600 mm
TSlots size: 18 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Slots in storage: 20
Max weight: 7 kg
Max tool diameter: 80/130 mm
Max tool length: 250 mm

Media

Main electronic connection: 220V / 3P / 50Hz
Power consumption: 30 kVA
Air pressure: 6-8 bar
Lubrication tank: 500 L
Oil tank: 40 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
