FEHLMANN PICOMAX 54 Milling Machine

Show in original language

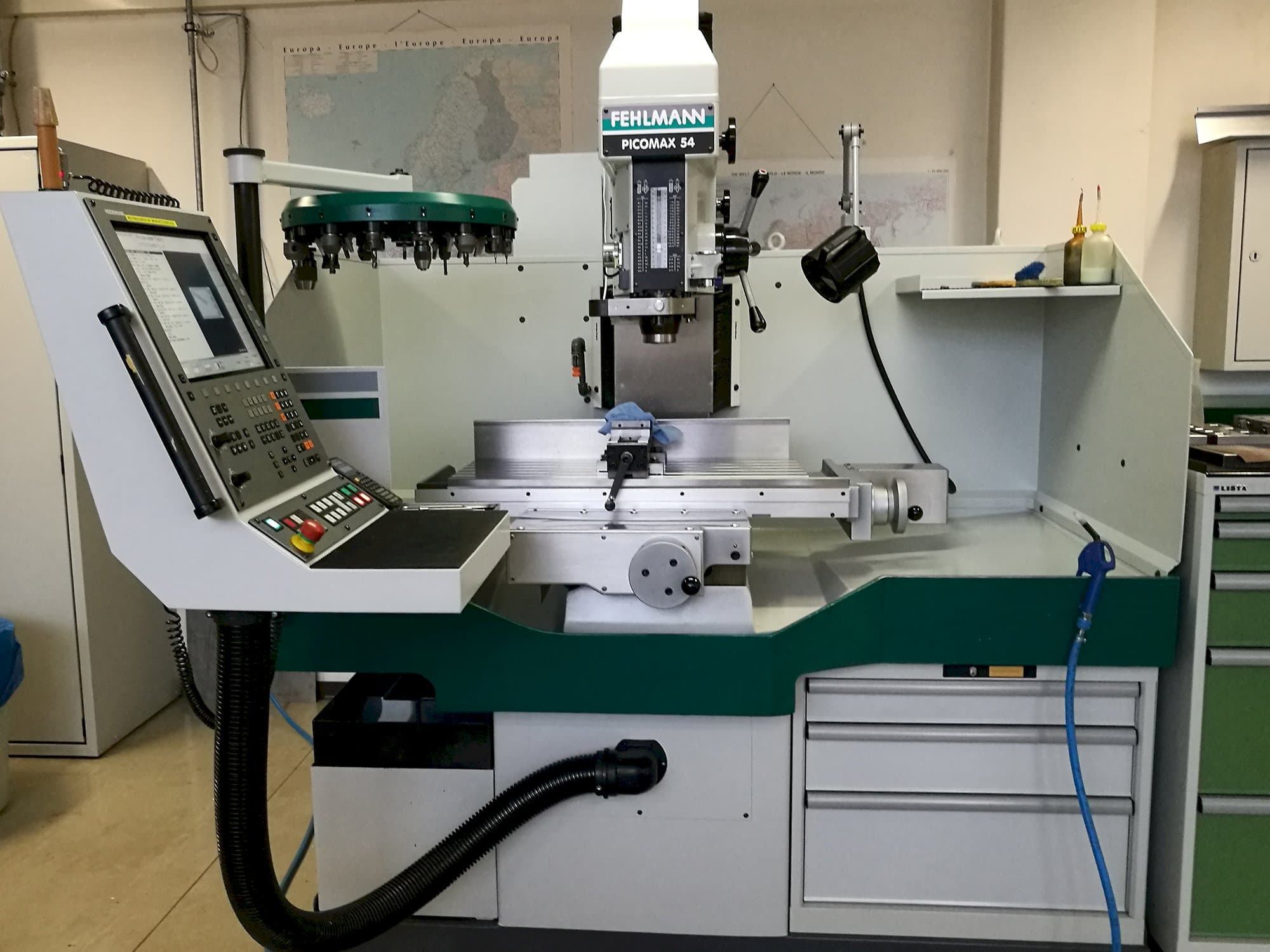

This FEHLMANN PICOMAX 54 Milling Machine was manufactured in 2008 in Switzerland and has a working record of 12295 hours. Equipped with a Heidenhain TNC 320 Control unit, this versatile machine has worked with steel, copper, aluminum and plastics during the past. It presents perfect conditions, as it has been regularly serviced. One set of toolholders is included as additional equipment.

Overview

brand: FEHLMANN
year: 2008
MODEL: PICOMAX 54
production hours: 12295
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - FEHLMANN PICOMAX 54

General Data

Measurements width: 1800 mm
Measurements depth: 1430 mm
Measurements height: 2100 mm
Machine weight: 2150 kg

Control Unit

Model: TNC 320
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 50-7100 rpm 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 260 mm
Z-AXIS Movement: 150 mm

Workpiece

Workpiece x: 550 mm
Workpiece y: 320 mm
Workpiece weight: 300 kg

Table

Outer length: 550 mm
Outer width: 320 mm
Number of tslots: 5
Distance between: 50 mm

Tools

Slots in storage: 12
Type of tool holder: SF 32

Media

Main electronic connection: 3x400 V
Power consumption: 10 kVA
Internal cooling: Yes

Additional equipment

- 1 set toolholders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
