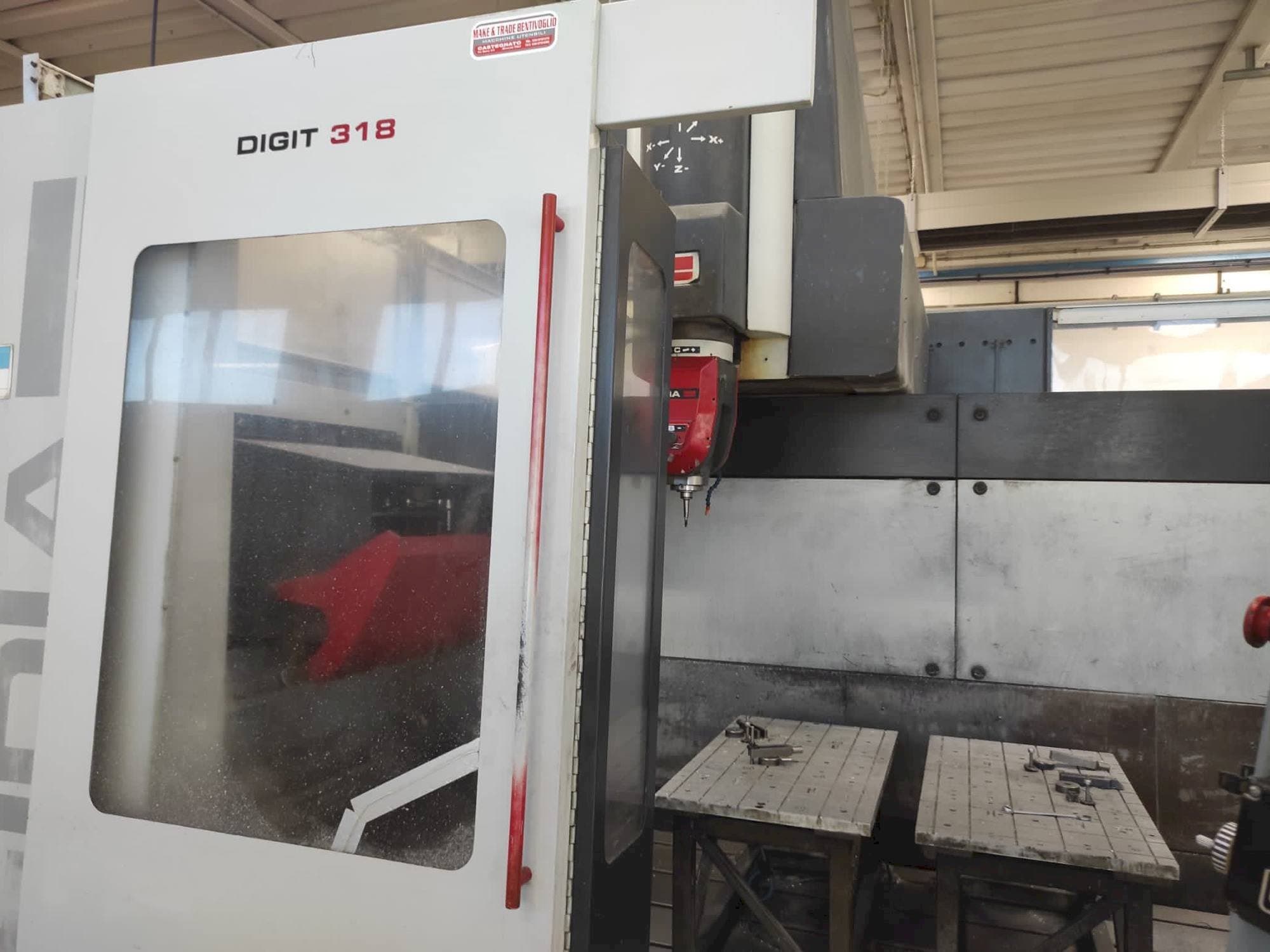

Left side view of Fidia Digit 318 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Fidia Digit 318

Photo Gallery

Fidia - Digit 318IT-MIL-FID-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Fidia Digit 318 Milling

Show in original language

This Fidia Digit 318 Milling machine was built in the year 2000. This 5 axis machine can work with a spindle speed up to 30000 rpm.

Overview

brand: Fidia
year: 2000
MODEL: Digit 318
production hours: 0
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Fidia Digit 318

Main drive

Spindle speed range: 30000 1/MIN
Number of axis: 5

Tools

Type of tool holder: HSK 50 E

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle lubrication air, oil
- - Axis b- number of positions: 11
- - Axis b- step: 5º
- - Axis b- stroke: -25 º / +25 º
- - Axis c- number of positions: 120
- - Axis c- step: 3º
- - Axis c- stroke: +180 º / -177 º
- - Max speed of rotation: 30000 rpm
- - Max power- continuous service: 20 kw - intermittent service: 27 kw
- - Constant power range: 24000-30000 rpm
Qualitative Machine Benefits:
- - Max distance, spindle-plane nose (spindle vertical position) 1030 mm
- - Distance min. Spindle-bed axis 315/ 355 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
