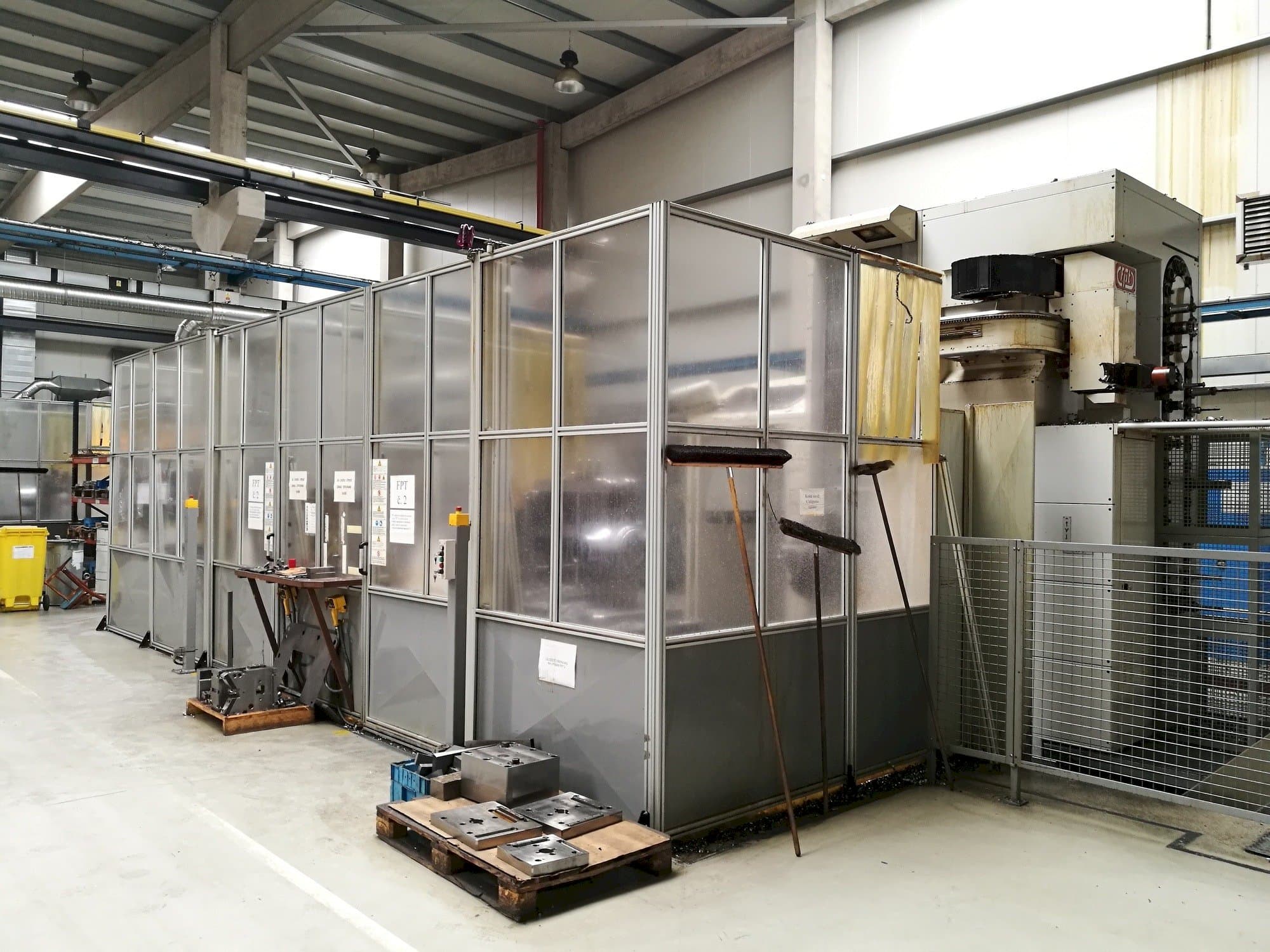

These FPT Area M Milling Machines were manufactured in Italy in the years 2008 and 2009 respectively. Equipped with a SIEMENS SINUMERIK 840 D Control unit, these machines can operate with a spindle speed up to 3000 rpm. Both machines are sold together and include several additional equipment such as milling heads and tool holders.

Overview

brand: FPT
year: 2008
MODEL: Area M
production hours: 12000
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - FPT Area M

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/MIN
Spindle motor power: 37 kW

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 2000 mm

Workpiece

Workpiece weight: 7000 kg

Table

Outer length: 1000 mm
Outer width: 1000 mm

Tools

Max weight: 20 kg
Max tool diameter: 230/125 mm
Max tool length: 400 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Angle head
- 2x Straight milling head
- 2x D'andrea head
- tool holders

Additional Information

Machine history

End product: Valves
Industries: Oil & gas

Machine Benefits

Technical Machine Benefits:
- - Cooling thru spindle 20 bar
- - Atc 40 positions
- - Table indexation 0,5°
- - Spindle taper iso 50
- - Storage rack for 3 heads
- - Hydrostatic guideways on x,y,z axes
- - 2 pallet system for each machine
- - Automatic loading/unloading of the milling heads

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
