➤ Used +GF+ AGIE CHARMILLES VCE 800 PRO | Machining Center

Show in original language

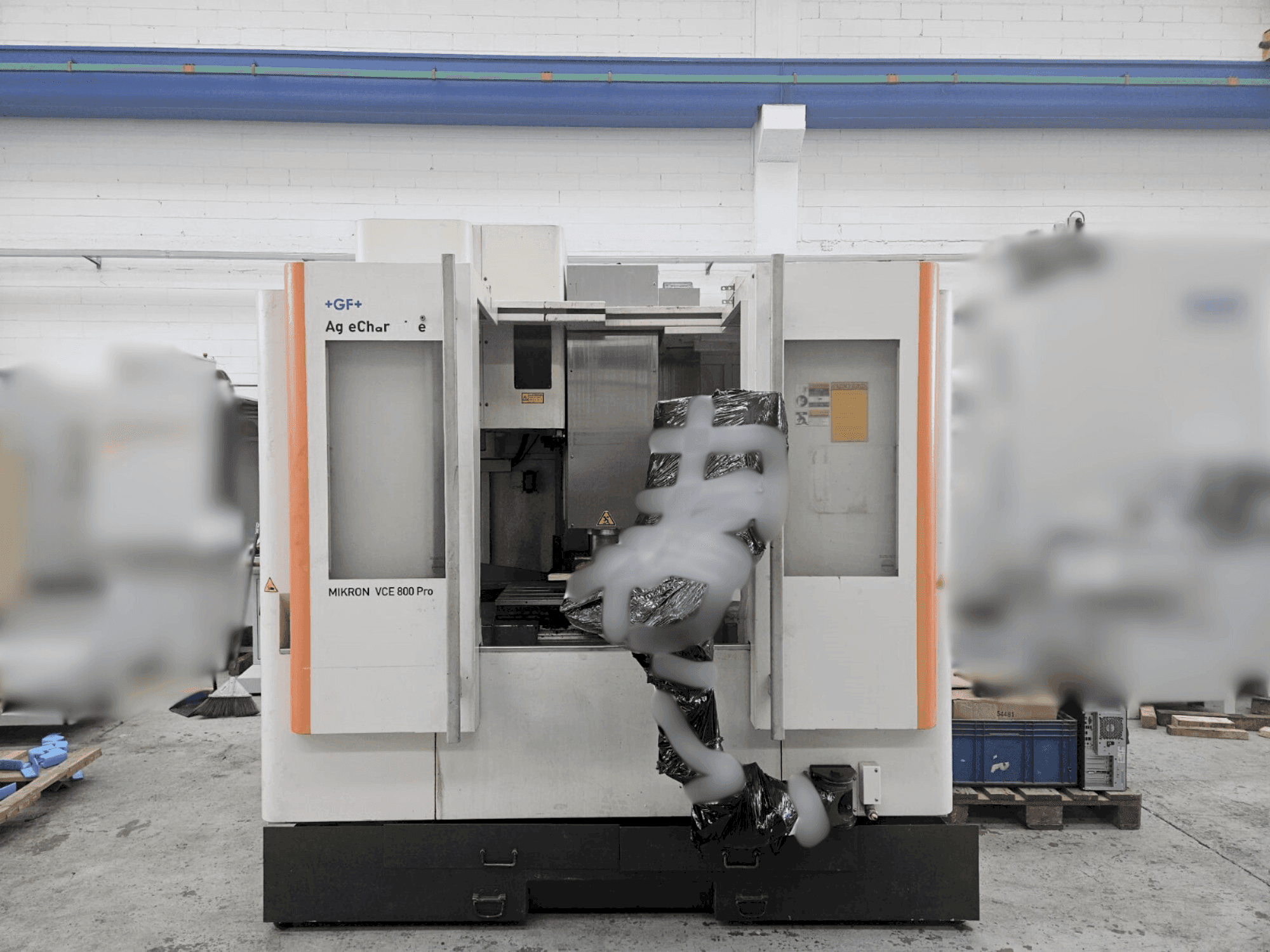

This 3-axis +GF+ AGIE CHARMILLES VCE 800 PRO vertical machining centre was manufactured in 2014. It features a robust HEIDENHAIN iTNC530 control, a maximum spindle speed of 10,000 min/¹, and a tool holder of ISO 40. The work table measures 910x500 mm, supporting up to 1100 kg. Ideal for precision machining, it includes a 24-position tool changer. If you are looking to get high-quality milling capabilities consider the +GF+ AGIE CHARMILLES VCE 800 PRO machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: +GF+
year: 2014
MODEL: AGIE CHARMILLES VCE 800 PRO
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - +GF+ AGIE CHARMILLES VCE 800 PRO

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530

Dimensions

Table Length: 910 mm
Table Load: 1100 kg
Table Width: 500 mm

Movement

Number of Axes: 3
X-axis Travel: 800 mm
Y-axis Travel: 500 mm
Z-axis Travel: 540 mm

Technical Specification

Max. Tool Weight: 6 kg
Spindle Power: 12 kW
Spindle Speed: 10000 RPM
Taper Size: ISO 40
Tool Stations: 24

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
