Goodway GS-260MYS

Photo Gallery

Goodway - GS-260MYSIE-TUR-GOO-2006-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathe GOODWAY GS-260MYS (2006) for sale | GINDUMAC.COM

Show in original language

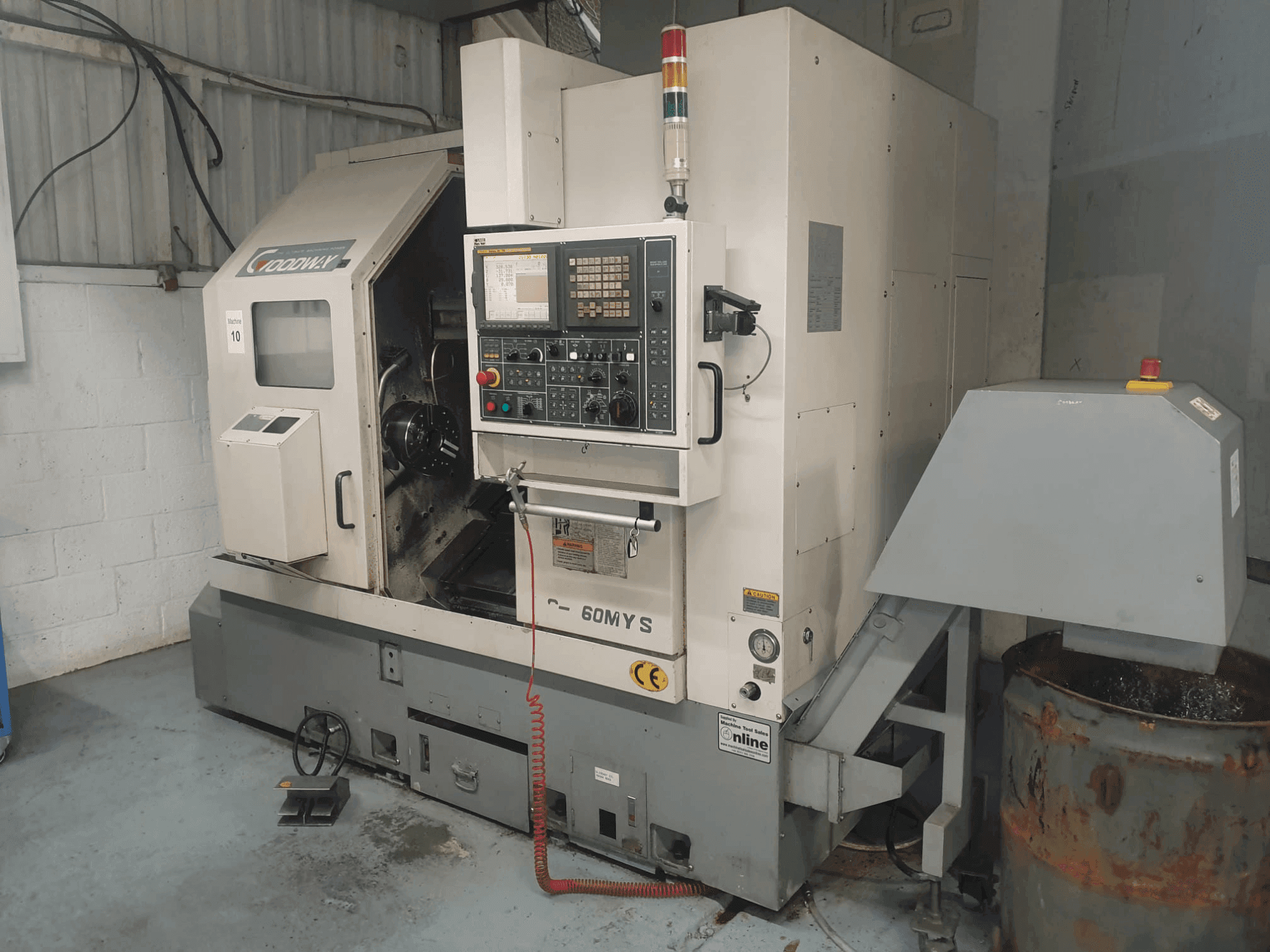

This GOODWAY GS-260MYS Lathe was manufactured in the year 2006 and has 6000 production hours. It is equipped with a Fanuc 18i-TB control unit with CU Language Customizable. This machine has 2 spindles (4000 rpm) and have simultaneous axis operation (one of these is a counter spindle). Disposes of a turret and a chip conveyor. It can be included a Kitagawa B210 Chuck, an Auto Sirona N206 Chuck and a selection of Toolholders.

Overview

brand: Goodway
year: 2006
MODEL: GS-260MYS
production hours: 6000
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Goodway GS-260MYS

General Data

Measurements width: 2670 mm
Measurements depth: 1920 mm
Measurements height: 2260 mm
Machine weight: 5800 kg

Control Unit

Model: 18i-TB
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 230 mm
Y-AXIS Movement: 110 mm
Z-AXIS Movement: 600 mm
C-AXIS Movement: 360º

Workpiece

Workpiece drm over bed: 420 mm
Workpiece z: 560 mm
Workpiece weight: 230 kg

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: ER32

Media

Main electronic connection: 400 V
Power consumption: 38 kVA
Chip conveyor: Yes

Additional Information

Machine history

Material type: Steel
End product: Cutters for wood working machines

Machine Benefits

Technical Machine Benefits:
- - Machine with sub spindle
- - Machine with driven tool turret
Qualitative Machine Benefits:
- - Low machining hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
