HAAS EC400

Photo Gallery

HAAS - EC400IL-MIL-HAA-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HAAS EC400 Milling

Show in original language

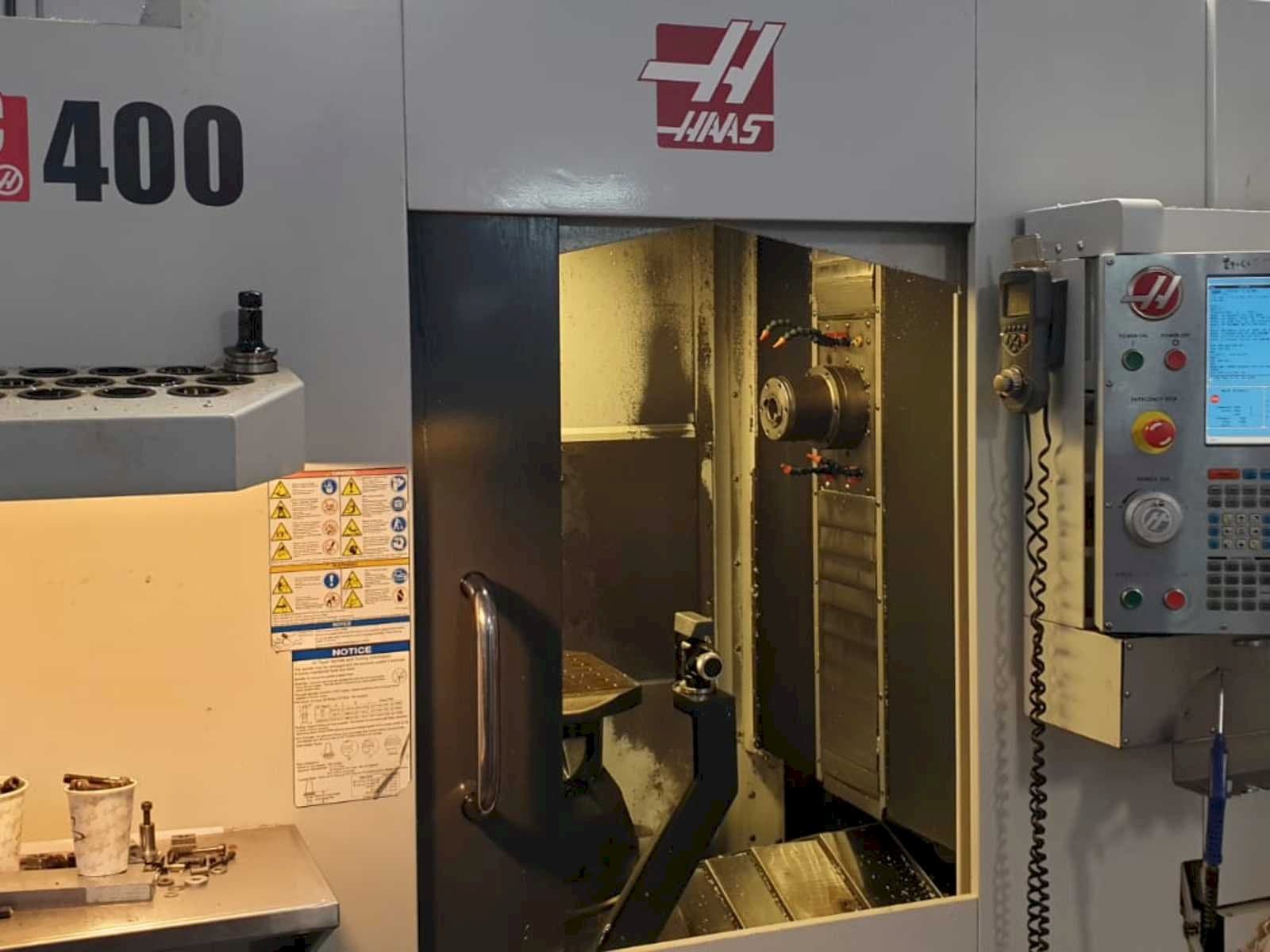

This HAAS EC400 Horizontal Machining center was manufactured in 2012. The 4 axis machine operates through a Haas CNC control unit. It has a spindle speed up to 12000 rpm. The machine comes with full ATC 70 Tools.

Overview

brand: HAAS
year: 2012
MODEL: EC400
production hours: 0
application type: Milling
Location: Israel
machine type: Horizontal Machining Centre
control unit brand: HAAS

Technical Information - HAAS EC400

General Data

Machine weight: 9525 kg

Control Unit

Model: CNC
Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 508 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Additional equipment

- Belt Type Chip Conveyor
- Intuitive Probing, Renishaw
- Tool Tray
- Lifting kit
- Rigid tapping
- Remote Jog Handle
- Power Fault Detection Module
- Programmable Coolant Nozzle
- Disk & Hard Drive
- Coordinate Rotation & Scaling

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pallet size: 400 mm x 400 mm
- - Change time 8 sec
- - Optional full 4th axis
- - Capacity 660 lbs
- - Indexing accuracy +/-15 arc-sec
- - 90 deg. Rotation time 3 sec.
- - Drive system inline direct drive
- - Max. Torque 90ft-lb @ 2000 rpm
- - Max. Rating 30 hp
- - Rapids 1000 ipm
Qualitative Machine Benefits:
- - Max. Cutting 500 ipm
- - Tool changer: capacity 70+1
- - Tool type/taper cat 40
- - Coolant capacity 80 gal
- - Power required (min) 195-260 vac 3-phase
- - 30 hp main drive motor
- - 70 position automatic tool changer
- - Rigid tapping
- - Coolant thru spindle, 300 psi

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
