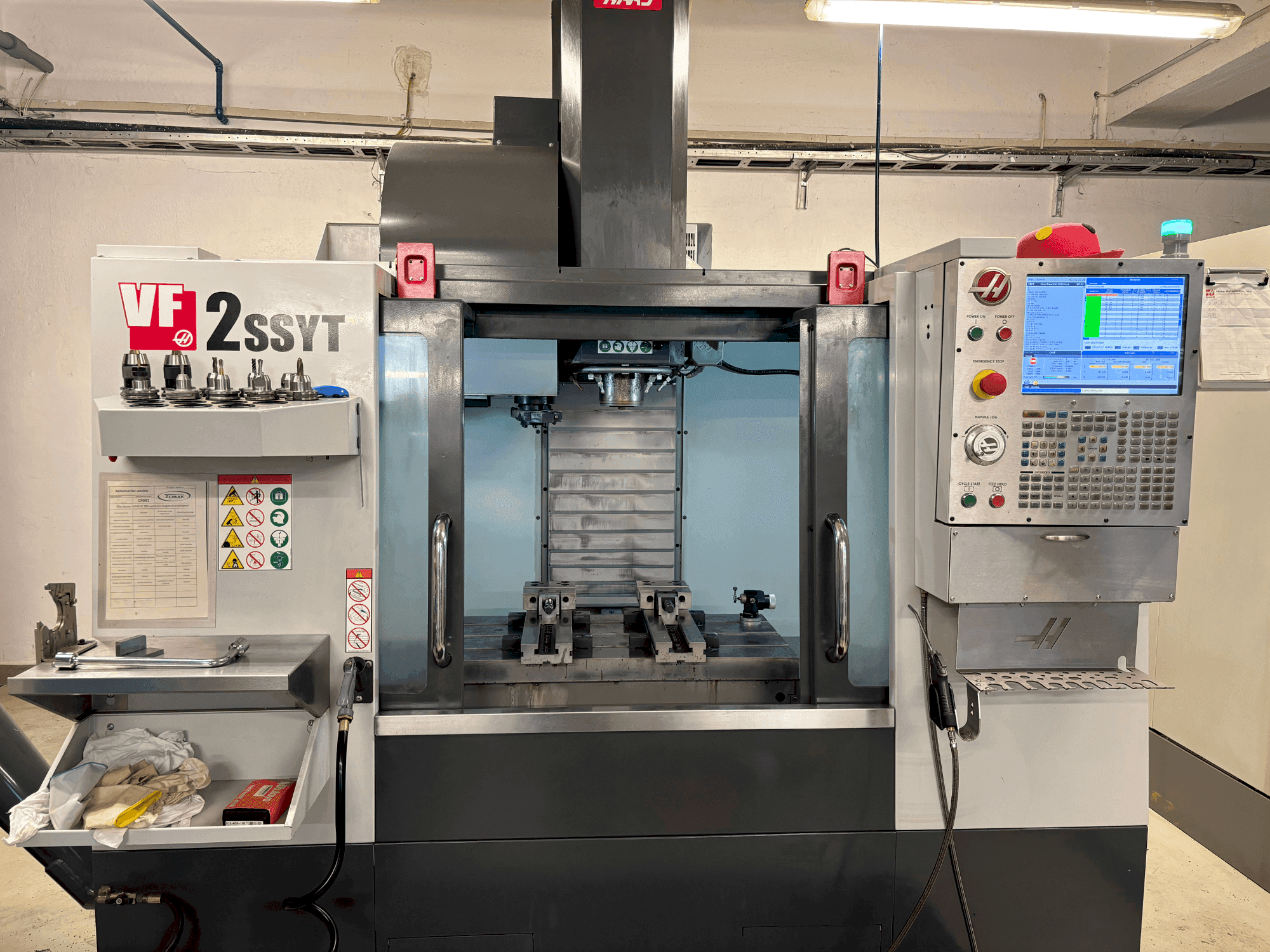

Front view of HAAS HAAS VF-2SSYT machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAAS HAAS VF-2SSYT

Photo Gallery

HAAS - HAAS VF-2SSYTHU-MIL-HAA-2016-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS HAAS VF-2SSYT For Sale | gindumac.com

Show in original language

This 3-axis HAAS VF-2SSYT vertical machining centre was manufactured in 2016. It features a 30.0 hp spindle with a maximum speed of 12000 rpm and a torque of 122.0 Nm at 2000 rpm. The machine includes a 30+1 side-mount tool changer and supports a maximum table load of 680 kg. Rapid traverse rates reach up to 35.6 m/min. If you are looking to get high-quality milling capabilities, consider the HAAS VF-2SSYT machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2016
MODEL: HAAS VF-2SSYT
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS HAAS VF-2SSYT

General Data

Machine weight: 4500 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Tool taper: CT40 / BT40 / HSK-A63
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
X-AXIS Rapid traverse: 35.6 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 35.6 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 35.6 m/min

Table

Number of tslots: 3
Table load: 680 kg

Tools

Number of index: 30+1
Max weight: 5 kg
Max tool diameter: 64 mm
Max tool length: 279 mm
Type of tool holder: SMTC

Media

Air pressure: 5.5 bar

Additional Information

Additional equipment

Air Requirement: 113 L/min at 6.9 bar
Internal Air Hose: 3/8 in
Air Coupling: 3/8 in
Min. Air Pressure: 5.5 bar
Coolant Capacity: 208 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
