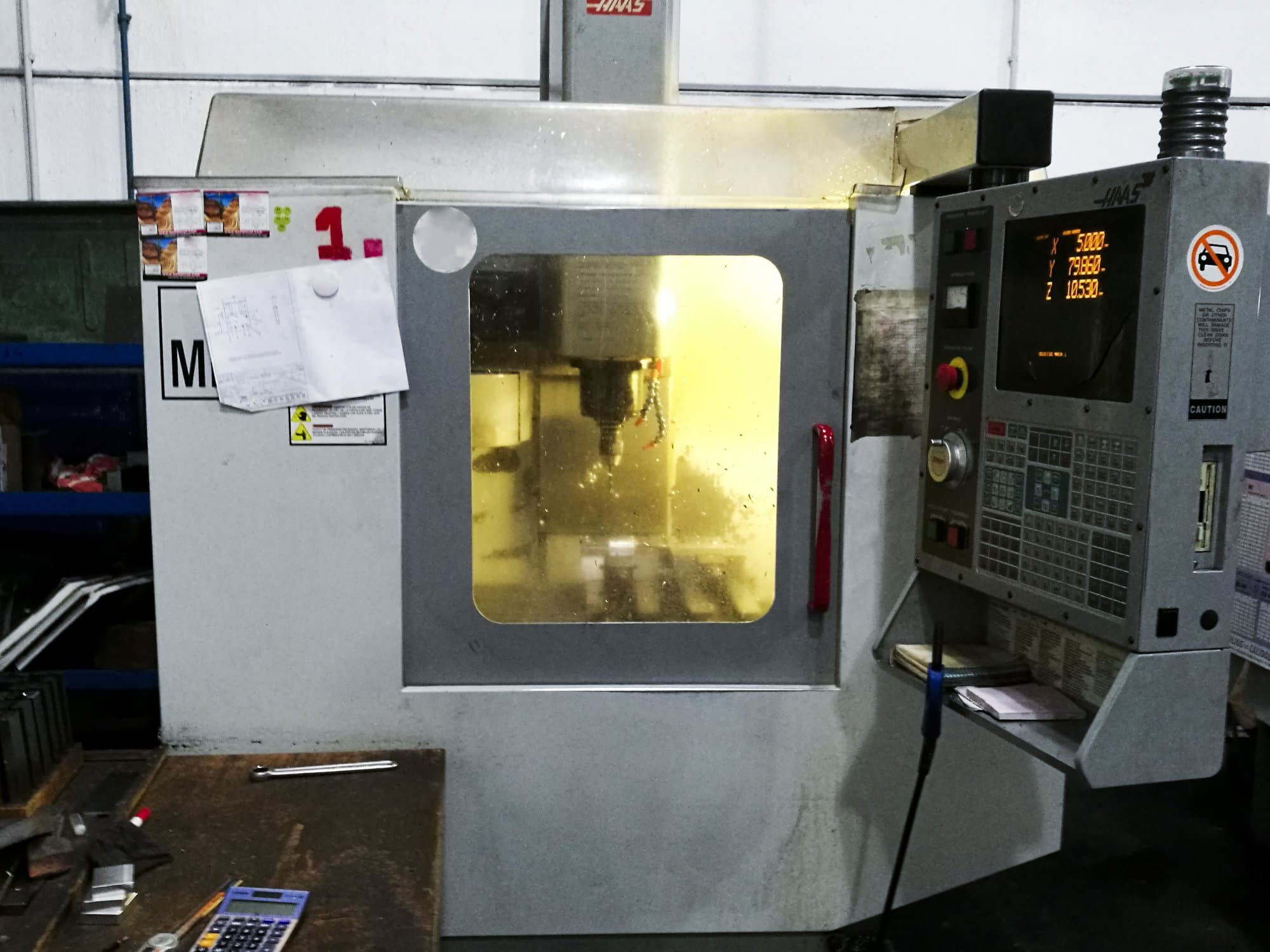

Working room of HAAS Mini-Mill HE Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAAS Mini-Mill HE

Photo Gallery

HAAS - Mini-Mill HEES-MIL-HAA-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HAAS Mini-Mill HE Machining Center

Show in original language

This HAAS Mini-Mill HE Machining Center was manufactured in 2002 and has a record of 7500 production hours ever since. Operated through a HAAS with remote control Control unit, the model is compact and precise, and ideal to handle smaller pieces. In the past, this machine has produced mainly special pieces for the Machine tool industry.

Overview

brand: HAAS
year: 2002
MODEL: Mini-Mill HE
production hours: 7500
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS Mini-Mill HE

General Data

Measurements width: 1731 mm
Measurements depth: 1372 mm
Measurements height: 2489 mm
Machine weight: 1543 kg

Control Unit

Brand: HAAS
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min
Spindle motor power: 5.6 kW
Tool taper: BT-40

Movement

X-AXIS Movement: 406 mm
X-AXIS Working Feed: 12700 mm/m
X-AXIS Rapid traverse: 16510 mm/m
Y-AXIS Movement: 305 mm
Y-AXIS Working Feed: 12700 mm/m
Y-AXIS Rapid traverse: 16510 mm/m
Z-AXIS Movement: 254 mm
Z-AXIS Working Feed: 12700 mm/m
Z-AXIS Rapid traverse: 16510 mm/m

Workpiece

Workpiece weight: 227 kg

Table

Outer length: 914 mm
Outer width: 305 mm
Number of tslots: 3
Distance between: 15875 mm

Tools

Slots in storage: 10
Max weight: 5.44 kg
Max tool diameter: 88.9 mm

Media

Main electronic connection: 366/425 V
Air pressure: 6.9 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
