➤ Used HAAS UMC - 750 Vertical Machining Center

Show in original language

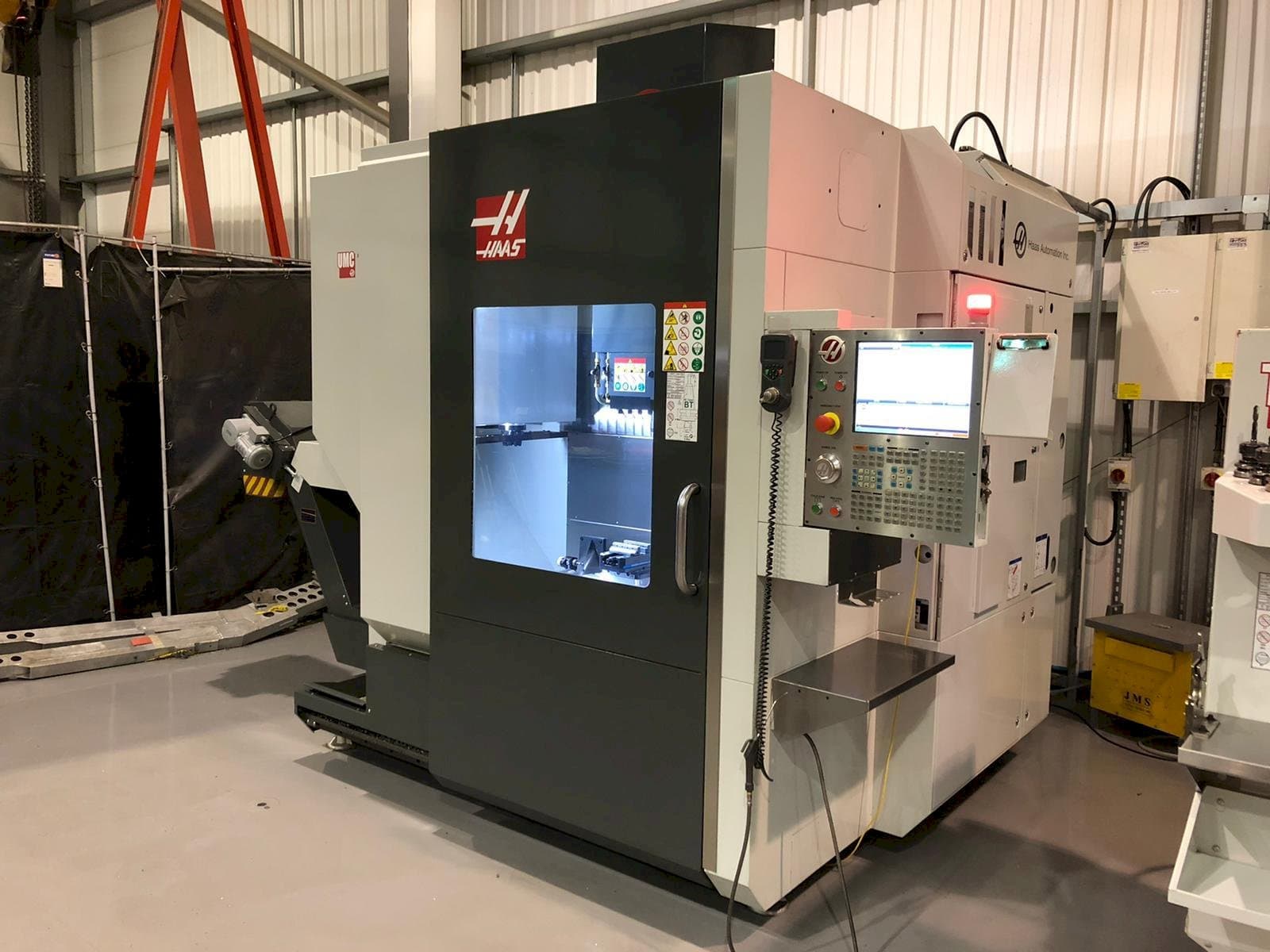

This HAAS UMC - 750 Vertical Machining Center was manufactured in the year 2017. Equipped with a control unit from the same brand, this machine operates with a spindle speed up to 12000 rpm with a simultaneous axis operation.

Overview

brand: HAAS
year: 2017
MODEL: UMC - 750
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS UMC - 750

General Data

Measurements width: 3978 mm
Measurements depth: 2387 mm
Measurements height: 2565 mm
Machine weight: 8700 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm
B-AXIS Movement: +110 ° /-35° MM
C-AXIS Movement: 360 ° MM

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 40
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. -max. Height under spindle: 102-610 mm
- - Feedrate: 16. 5 m/min
- - Rapid feedrate: 30. 5 m/min
- - Swarf conveyor
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
