HAAS UMC 1000

Photo Gallery

HAAS - UMC 1000DE-MIL-HAA-2023-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS UMC 1000 For Sale | gindumac.com

Show in original language

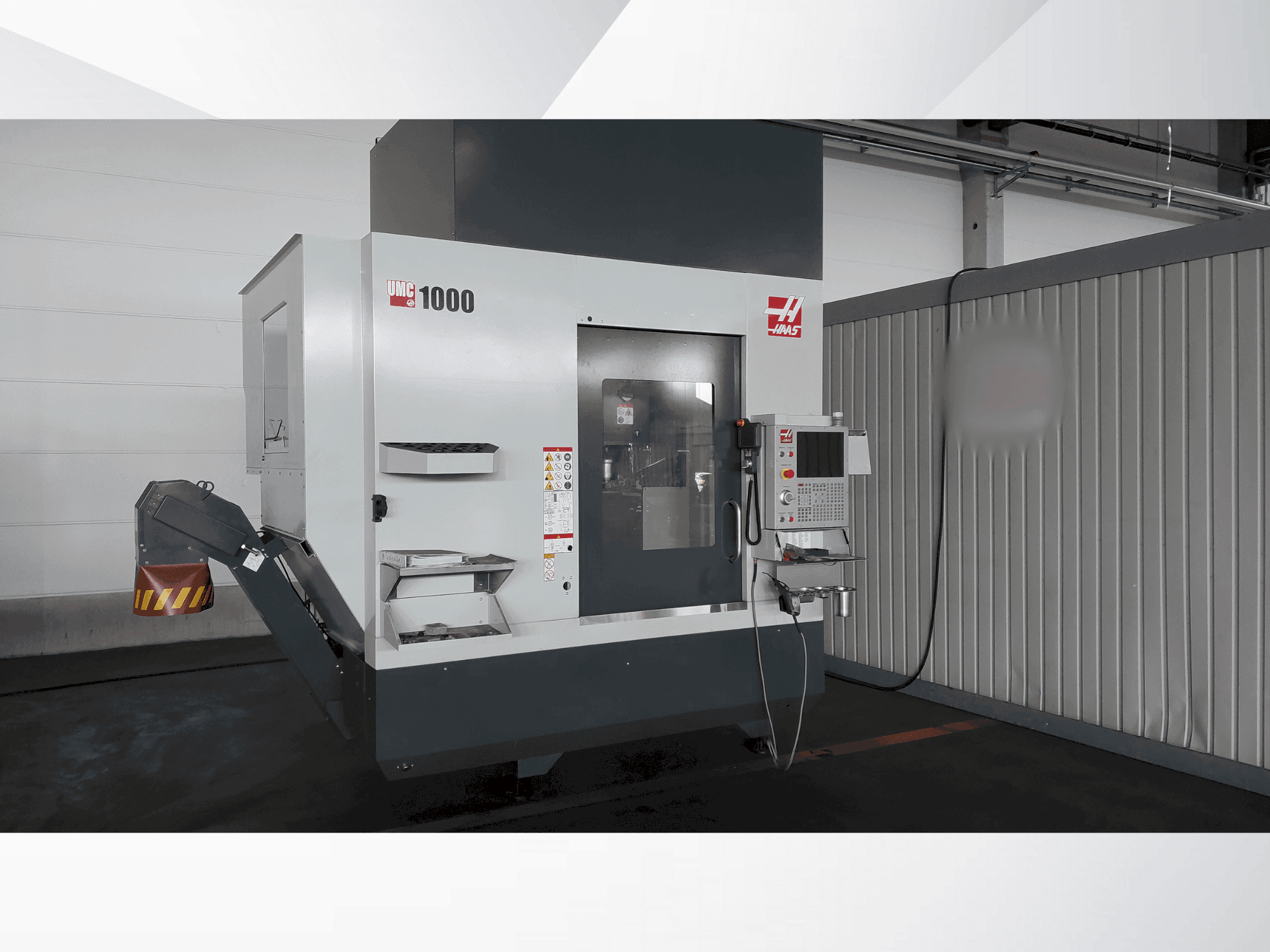

This 5-axis HAAS UMC 1000 universal machining centre was manufactured in 2023. It features a Ø 635 mm table, SK40 tool holder, and a main spindle speed of 8,100 min-1. The machine supports a max. table load of 454 kg and includes a 30 + 1 tool magazine. Additional features include a Renishaw touch probe system, portable control panel with XL touchscreen, and HAAS CNC control. Consider the opportunity to buy this HAAS UMC 1000 universal machining centre. Contact us for more information.

Overview

brand: HAAS
year: 2023
MODEL: UMC 1000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC 1000

General Data

Measurements width: 3600 MM
Measurements depth: 3150 MM
Measurements height: 3410 MM
Machine weight: 7500 KG

Control Unit

Brand: HAAS

Main drive

Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 1016 mm
X-AXIS Working Feed: 16.5 m/min
X-AXIS Rapid traverse: 22.9 m/min
Y-AXIS Movement: 635 mm
Y-AXIS Working Feed: 16.5 m/min
Y-AXIS Rapid traverse: 22.9 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Working Feed: 16.5 m/min
Z-AXIS Rapid traverse: 22.9 m/min
B-AXIS Movement: +120° to -35°
B-AXIS Working Feed: 50°/s
B-AXIS Rapid traverse: 50°/s
C-AXIS Movement: 360°
C-AXIS Working Feed: 50°/s
C-AXIS Rapid traverse: 50°/s

Table

Min distance between vertical spindle and table: 102 mm
Max distance between vertical spindle and table: 737 mm

Tools

Slots in storage: 30 + 1
Max weight: 5.4 kg
Max tool diameter: (Full / Secondary Positions Free): 63.5 / 127 mm
Max tool length: 305 mm

Additional Information

Additional equipment

Rotary & Swivel Table with Scale Measuring System for Better Accuracy
Intuitive, Wireless Touch Probe System from Renishaw
Portable Control Panel with XL Touchscreen
Blowing Out of the Spindle Cone with Every Tool Change
Button to Manually Release the Tool
Automatic Minimum Quantity Lubrication System for Axes and Spindle
Air Conditioning for Cooling the Control Cabinet
Flood Coolant System with Variable Pump Capacity
External Coolant Tank with 208 Liter Capacity
ca. 25 working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
