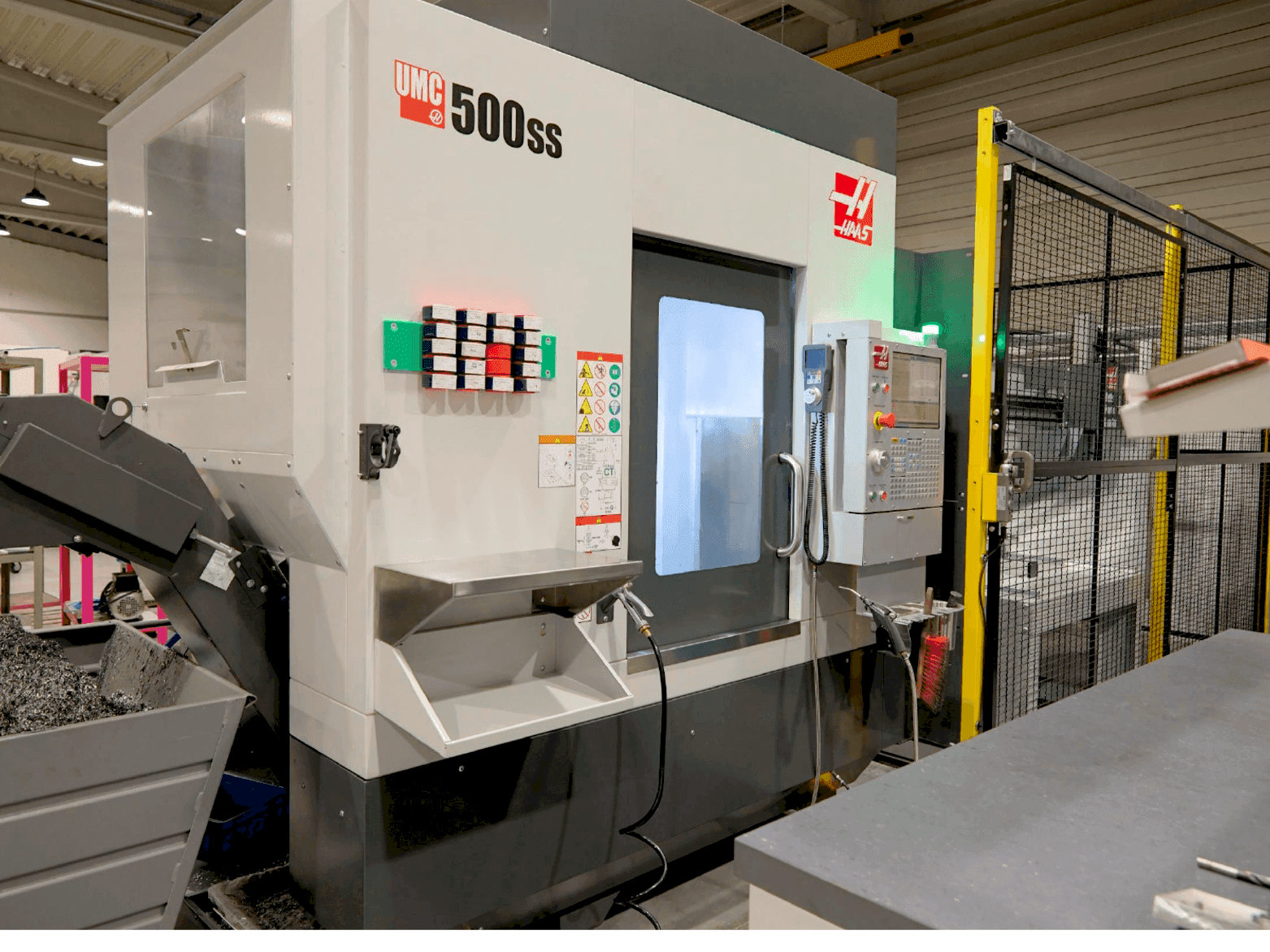

HAAS UMC 500-SS MIT APL Vertical Machining Center

Show in original language

This HAAS UMC 500-SS MIT APL Vertical Machining Center was manufactured in 2021 in the United States and has 4650 production hours, of which 2243 are spindle hours. It is controlled by a HAAS control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2021
MODEL: UMC 500-SS MIT APL
production hours: 4650
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS UMC 500-SS MIT APL

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 5

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 406 mm
B-AXIS Movement: -35° / +120° MM
C-AXIS Movement: 360° MM

Table

Outer length: 400 mm

Tools

Slots in storage: 30
Max weight: 5,4 kg
Max tool diameter: 127 mm
Max tool length: 305 mm
Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse: 30m/min in x-, y- and z-axis
- - Direct path measuring system in all 3 axes
- - Clamping hydraulic 2514 nm in b and c
- - Renishaw workpiece and tool measuring probe
- - 208l coolant tank
- - Variable coolant pressure, adjustable via m-function
- - Control cabinet cooling ,touchscreen contro
- - M130 media display, haasconnect remote monitoring
- - Early detection module for power failure
- - Ethernet interface
Qualitative Machine Benefits:
- - Wlan interface, haas save run
- - Continued haas drop - wireless data transmission
- - Handwheel with touch screen
- - Synchronous thread cutting
- - Dynamic workpiece offset and tool centre point control
- - "high-speed machining 1gb programme memory
- - Measuring system in the rotary axes
- - Automatic workpiece loader (apl)
- - Ce-compliant safety fence for apl
- - Continuation 2-channel hydraulic rotary feed-through in the swivel rotary table incl.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
