➤ Used HAAS VF-2 Machining Center

Show in original language

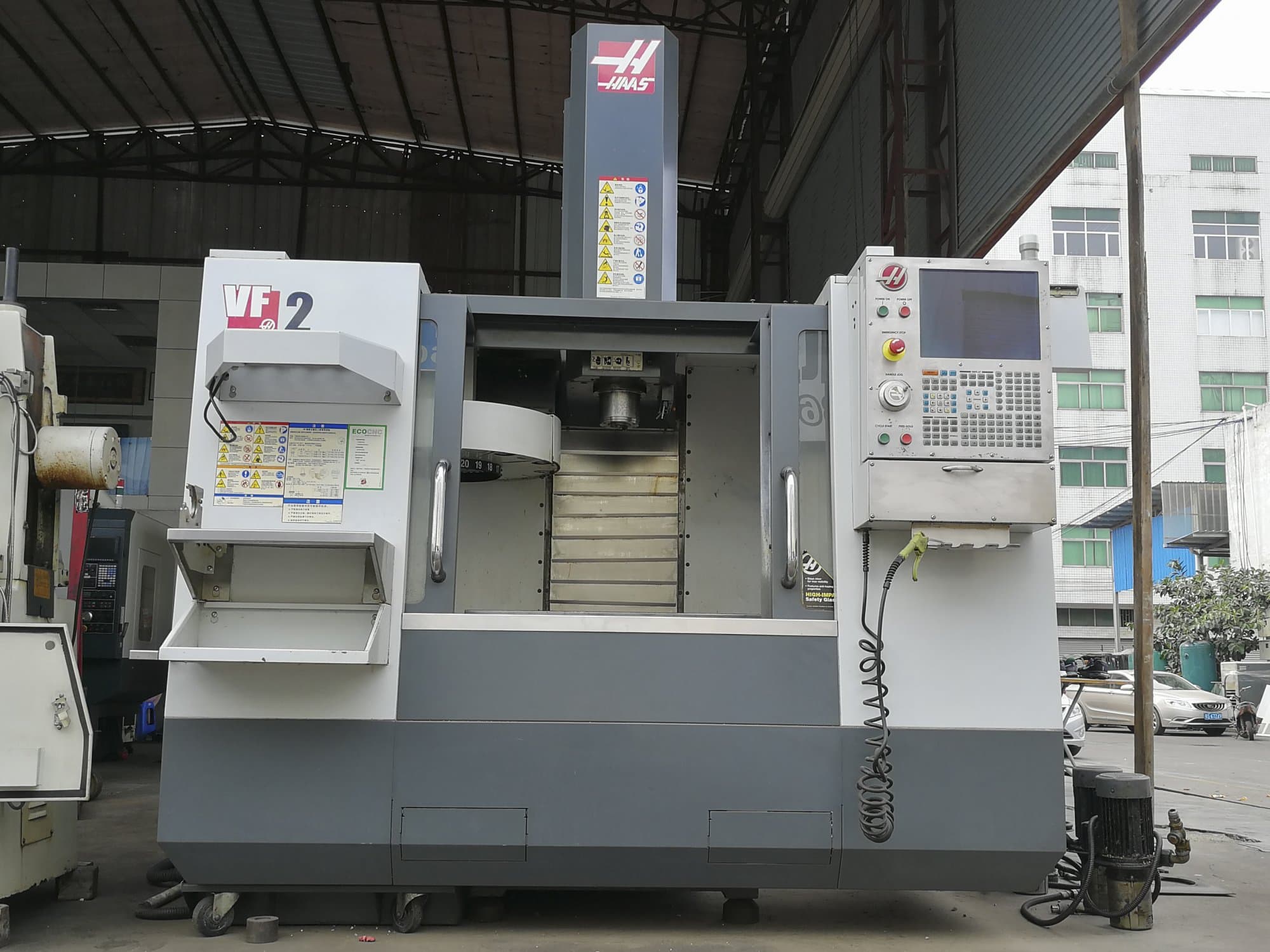

This HAAS VF-2 Machining Center was built in 2015 in United States and has been operative for approximately 4380 hours. The machine comes with a HAAS control unit, and stands in very good conditions.

Overview

brand: HAAS
year: 2015
MODEL: VF-2
production hours: 4380
application type: Milling
Location: China
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-2

General Data

Measurements width: 2789 mm
Measurements depth: 2357 mm
Measurements height: 2654 mm
Machine weight: 3221 kg

Control Unit

Brand: HAAS

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 1361 kg

Table

Outer length: 914 mm
Outer width: 356 mm
TSlots size: 125 mm
Number of tslots: 3

Tools

Slots in storage: 20
Max weight: 5.4 kg
Max tool diameter: 89 mm

Media

Power consumption: 14 kVA
Air pressure: 6.9 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
