HAAS VF 3 SS

Photo Gallery

HAAS - VF 3 SSSI-MIL-HAA-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

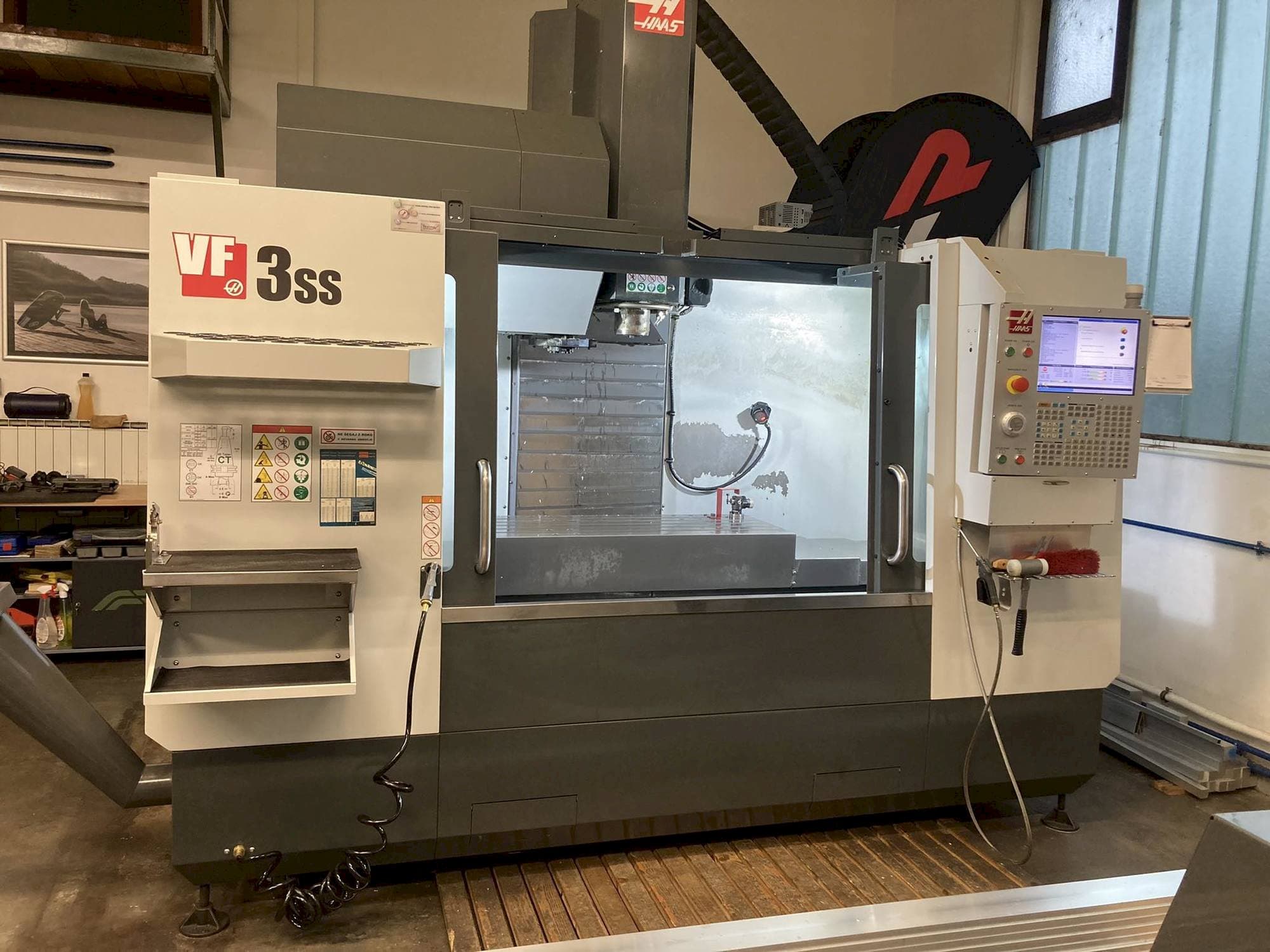

HAAS VF 3 SS Vertical Machining center

Show in original language

This HAAS VF 3 SS Vertical Machining center was manufactured in the year 2019 and has 28571 production hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2019
MODEL: VF 3 SS
production hours: 28571
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF 3 SS

General Data

Machine weight: 6124 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
X-AXIS Rapid traverse: 35.6 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 35.6 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 35.6 m/min

Table

Outer length: 1219 mm
Outer width: 457 mm
TSlots size: 15.90 mm to 16.00 mm
Table load: 794 kg

Tools

Slots in storage: 30+1
Max weight: 5.4 kg
Max tool diameter: 64 mm
Max tool length: 330 mm
Type of tool holder: SMTC

Additional equipment

- RENISHAW
- 10 powered tools for free

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool changers: high-speed 30+1 side-mount
- - Window air blast
- - 55-gallon coolant tank
- - Variable flow coolant
- - Media display m-code; m130
- - Haasconnect: remote monitoring
- - Ethernet interface
- - Early power-failure detection module
- - Safe run
- - Standard program memory, 1 gb
Qualitative Machine Benefits:
- - Power surge protection

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
