HAAS VF-3

Photo Gallery

HAAS - VF-3PT-MIL-HAA-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

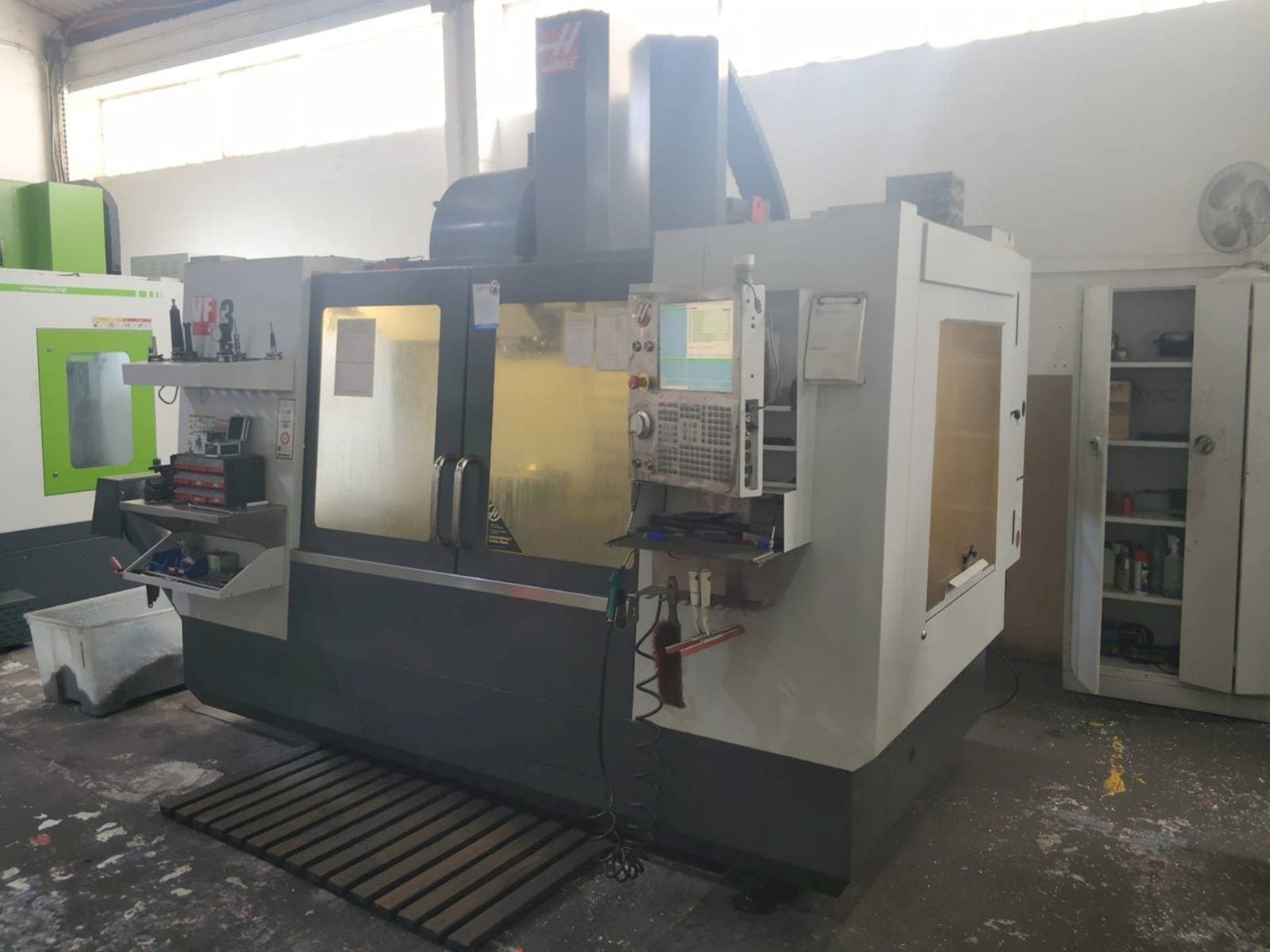

➤ Used HAAS VF-3 - 2014 - Vertical Machining Center

Show in original language

This HAAS VF-3 Vertical Machining Center was built in the year 2014. It is operated through a Haas control unit. This 3 axis machine works with a spindle speed up to 10000 rpm.

Overview

brand: HAAS
year: 2014
MODEL: VF-3
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HAAS VF-3

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1219 mm
Outer width: 457 mm
Table load: 1588 kg

Tools

Type of tool holder: BT-40

Additional equipment

- Rigid Threading
- Auger chip extractor conveyor (AUGER)
- High Speed Machining Module (HSM)
- 24+1 tools side storage (SMTC-24)
- Direct coupling 22kW / 30CV 10000rpm shaft (10K-40T-IN)
- Programmable air blow nozzle (AAG1)
- Multifunction detachable electronic steering wheel with 3.5” LCD display (RJH-C)
- Power failure pre-detection module (PFDM)
- User macros (MACROS)
- 750 Mb memory

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 22. 4kw / 30cv engine
- - Cooling tank

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
