HAAS VF-3SS

Photo Gallery

HAAS - VF-3SSPL-MIL-HAA-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ HAAS VF-3SS | Vertical Machining Center For Sale

Show in original language

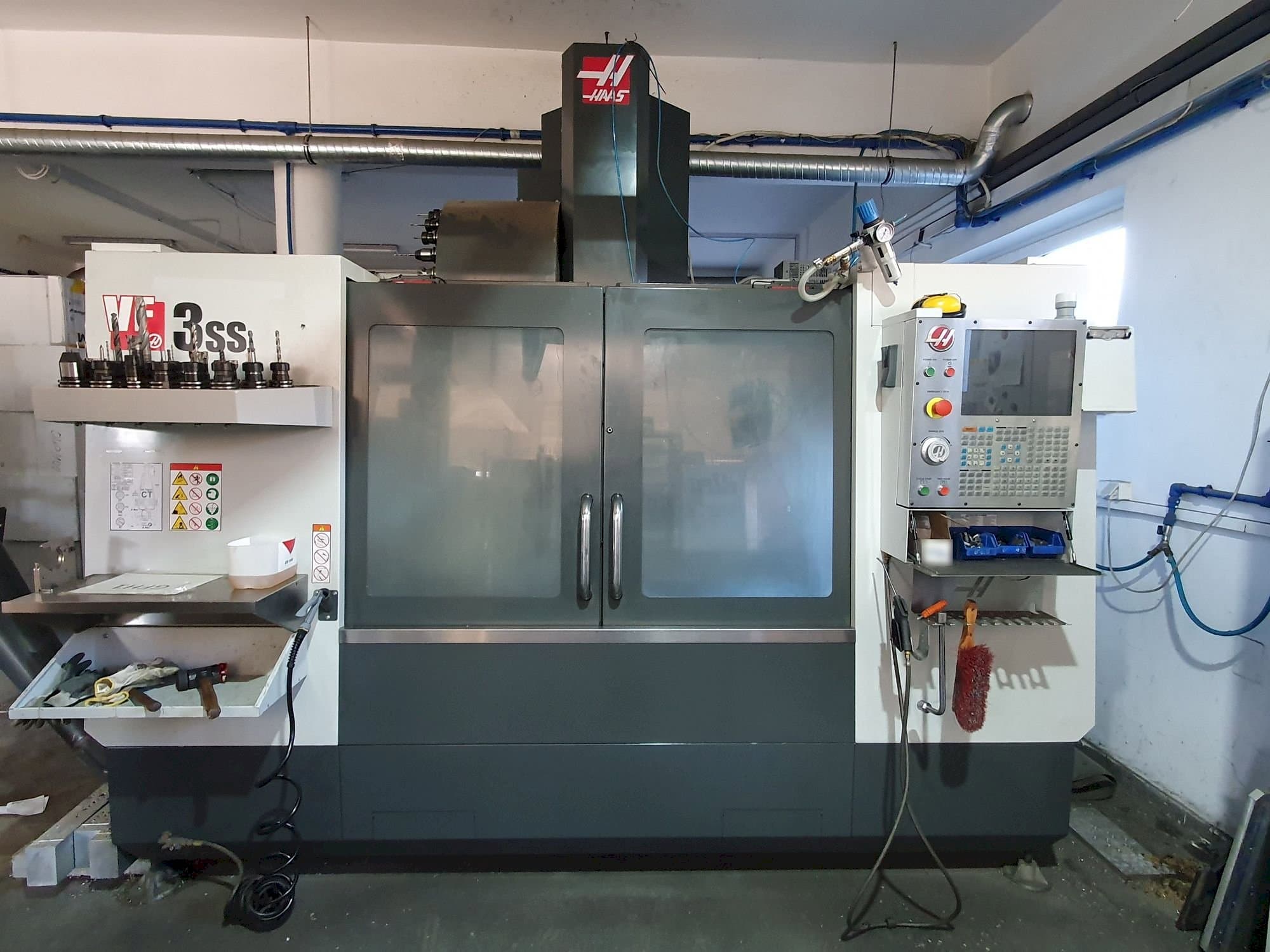

This HAAS VF-3SS Vertical Machining Center was manufactured in the year 2016 in Poland. It is equipped with a control unit of the same brand. This 3 axis machine operates with a spindle speed up to 12000 rpm and has been working for 16350 hours. It is in very good working conditions.

Overview

brand: HAAS
year: 2016
MODEL: VF-3SS
production hours: 16350
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-3SS

General Data

Measurements width: 3832 mm
Measurements depth: 2640 mm
Measurements height: 3108 mm
Machine weight: 5670 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1016 MM
Y-AXIS Movement: 508 MM
Z-AXIS Movement: 635 MM

Table

Outer length: 1219 MM
Outer width: 457 MM
Table load: 794kg

Tools

Number of index: 24
Max weight: 5.4 kg
Max tool diameter: 76 mm

Media

Main electronic connection: 3x400V/50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chip auger - chips from the machine
- - P-cool - programmable coolant nozzle
- - Wips-r - wireless probing system
- - Wifi - wireless connection
Qualitative Machine Benefits:
- - Very good working condition, ready for test
- - No tooling included
- - This machine worked with aluminum only

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
