➤ Used HAAS VF-3YT/50 - 2015 - Vertical Machining Center

Show in original language

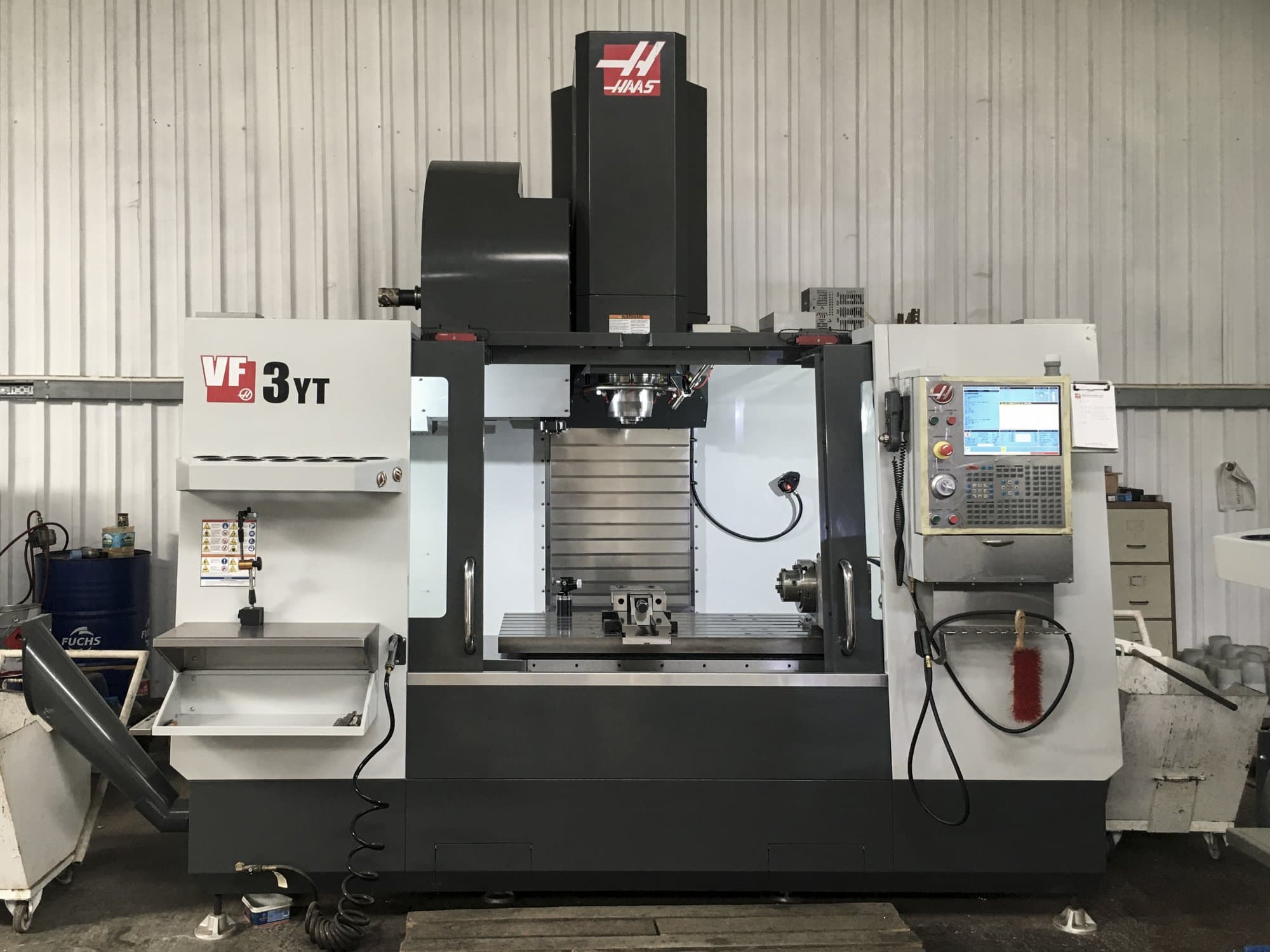

This HAAS VF-3YT/50 Vertical Machining Center was manufactured in 2015 in the United States and has a working record of not more than 465 production hours since then. This almost new machine is operated through a HAAS Control unit and stands out due to its rotary table with a maximum workpiece weight of 1814 kg. This system incorporates a spindle with 2-speed gearbox and has mainly worked with carbon and alloy steel during the past.

Overview

brand: HAAS
year: 2015
MODEL: VF-3YT/50
production hours: 465
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-3YT/50

General Data

Measurements width: 3810 mm
Measurements depth: 3429 mm
Measurements height: 3225 mm
Machine weight: 6350 kg

Control Unit

Remote control: Yes
Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/min
Tool taper: #50

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 584 mm
Outer width: 1321 mm
Min distance between vertical spindle and table: 178 mm
Max distance between vertical spindle and table: 813 mm

Tools

Max weight: 13.6 kg
Max tool diameter: 102 mm

Media

Main electronic connection: 200-250 V / 50 Hz / 3 P
Power consumption: 28 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

4th axis
HRC210 Roller Cam rotary table (210 mm)
Through spindle coolant
Wireless intuitive probing system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
