HAAS VF-5 / 50HE

Photo Gallery

HAAS - VF-5 / 50HEPL-MIL-HAA-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

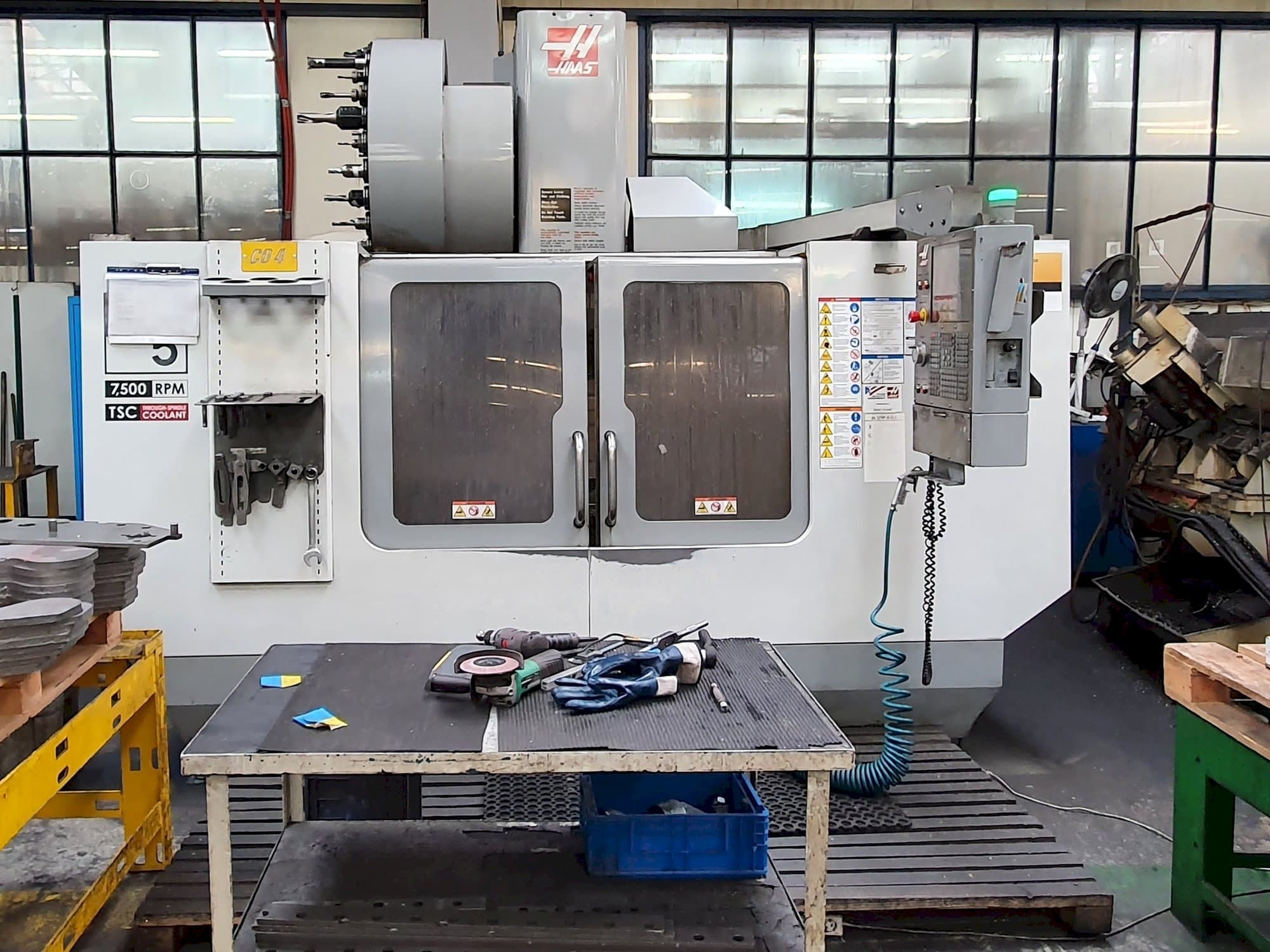

HAAS VF-5 / 50HE Vertical Machining Center

Show in original language

This HAAS VF-5 / 50HE Vertical Machining Center was built in the year 2007 in the United States. It has been working for 15604 hours since then. It is equipped with a HAAS control unit. This 3 axis machine can work with a spindle speed up to 7500 rpm. It presents very good working conditions, always serviced by HAAS agents.

Overview

brand: HAAS
year: 2007
MODEL: VF-5 / 50HE
production hours: 15604
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-5 / 50HE

General Data

Measurements width: 4270 mm
Measurements depth: 2600 mm
Measurements height: 3310 mm
Machine weight: 7300 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 7500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1321 mm
Outer width: 854 mm

Media

Main electronic connection: 360-480V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool storage: 30+1
- - Chip conveyor
Qualitative Machine Benefits:
- - Serviced always by haas service
- - Very good working condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
