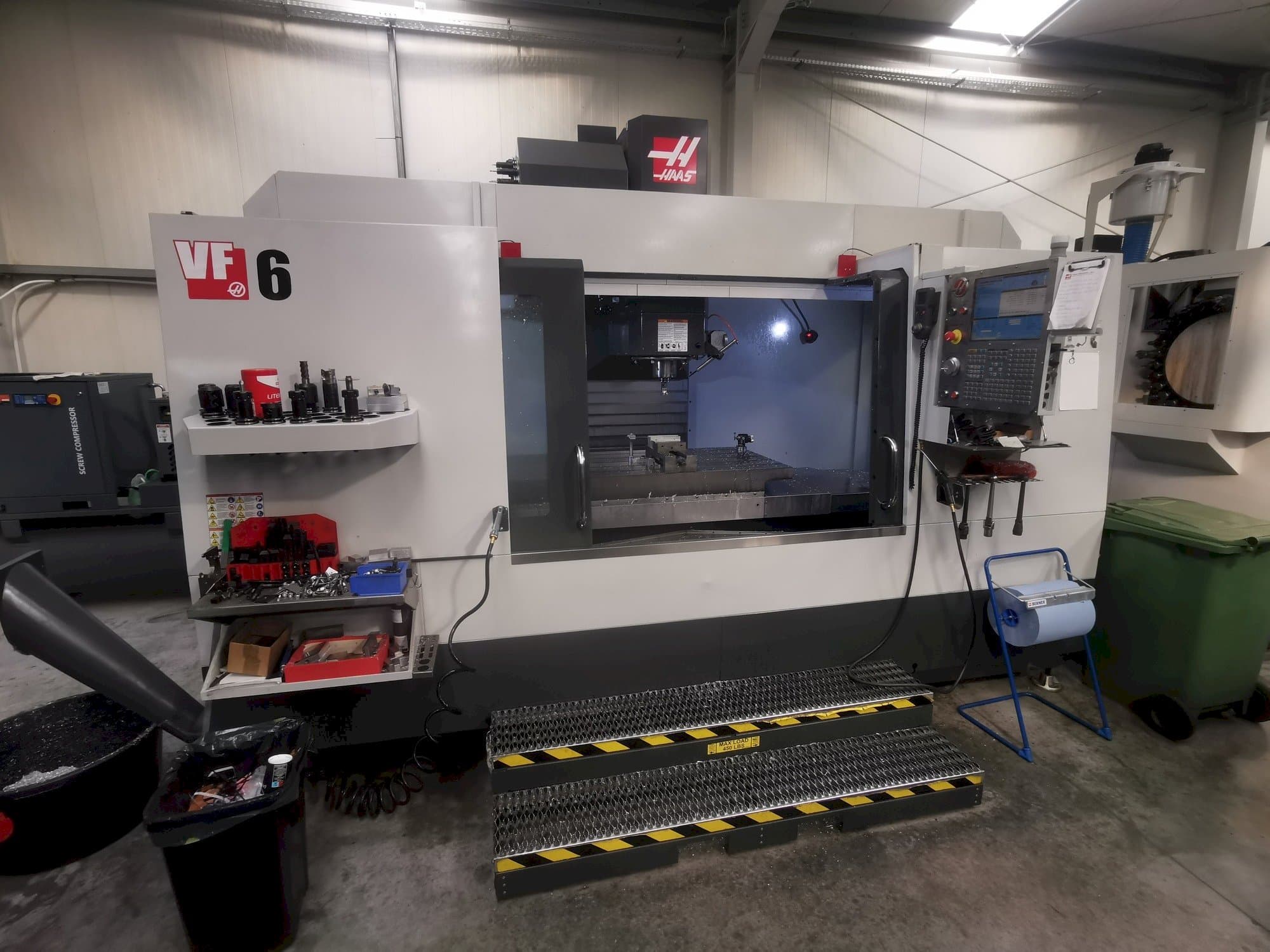

HAAS VF-6/40

Photo Gallery

HAAS - VF-6/40PL-MIL-HAA-2015-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-6/40 For sale | gindumac.com

Show in original language

This 5-axis HAAS VF-6/40 vertical machining center was manufactured in 2015. It features a 24+1 side-mounted tool changer, 15.2 m/min rapid traverse, and a dual-axis tilting rotary table. Equipped with a high-capacity 360 L coolant system and a rigid tapping function, the HAAS VF-6/40 machine we have for sale is designed for precision and efficiency. For more information about this vertical machining center, please reach out to us.

Overview

brand: HAAS
year: 2015
MODEL: VF-6/40
production hours: 1316
application type: Milling
Location: Poland
machine type: Vertical Machining Centre

Technical Information - HAAS VF-6/40

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 22.4 kw
Tool taper: CT or BT 40

Movement

X-AXIS Movement: 1626 mm
X-AXIS Working Feed: 12.7 m/min
X-AXIS Feed Force: 12.7 m/min
X-AXIS Rapid traverse: 15.2 m/min
Y-AXIS Movement: 813 mm
Y-AXIS Working Feed: 12.7 m/min
Y-AXIS Feed Force: 15124 N
Y-AXIS Rapid traverse: 15.2 m/min
Z-AXIS Movement: 864 mm
Z-AXIS Working Feed: 12.7 m/min
Z-AXIS Feed Force: 24910 N
Z-AXIS Rapid traverse: 15.2 m/min

Table

Outer length: 1626 mm
Outer width: 711 mm
TSlots size: 16mm
Number of tslots: 5
Distance between: 125 mm
Table load: 1850 kg

Tools

Max weight: 5.4 kg

Additional Information

Additional equipment

Spindle with 2-speed gearbox increasing speed to 10000 rpm [10K-40T-IN]
4-axis drive and wiring for rotary tables [4AXD]
5-axis drive and wiring for rotary tables [5AXD]
Tool probe for measuring tool length and part probe for measuring part length (both probes are used for referencing on the table) [WIPS-R]
Dual-axis tilting rotary table 210 mm [TR210]
Tailstock 6 [HTS6]
8" three-jaw chuck by Haas [LC8-B]
750 MB extended memory
Technology package

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
