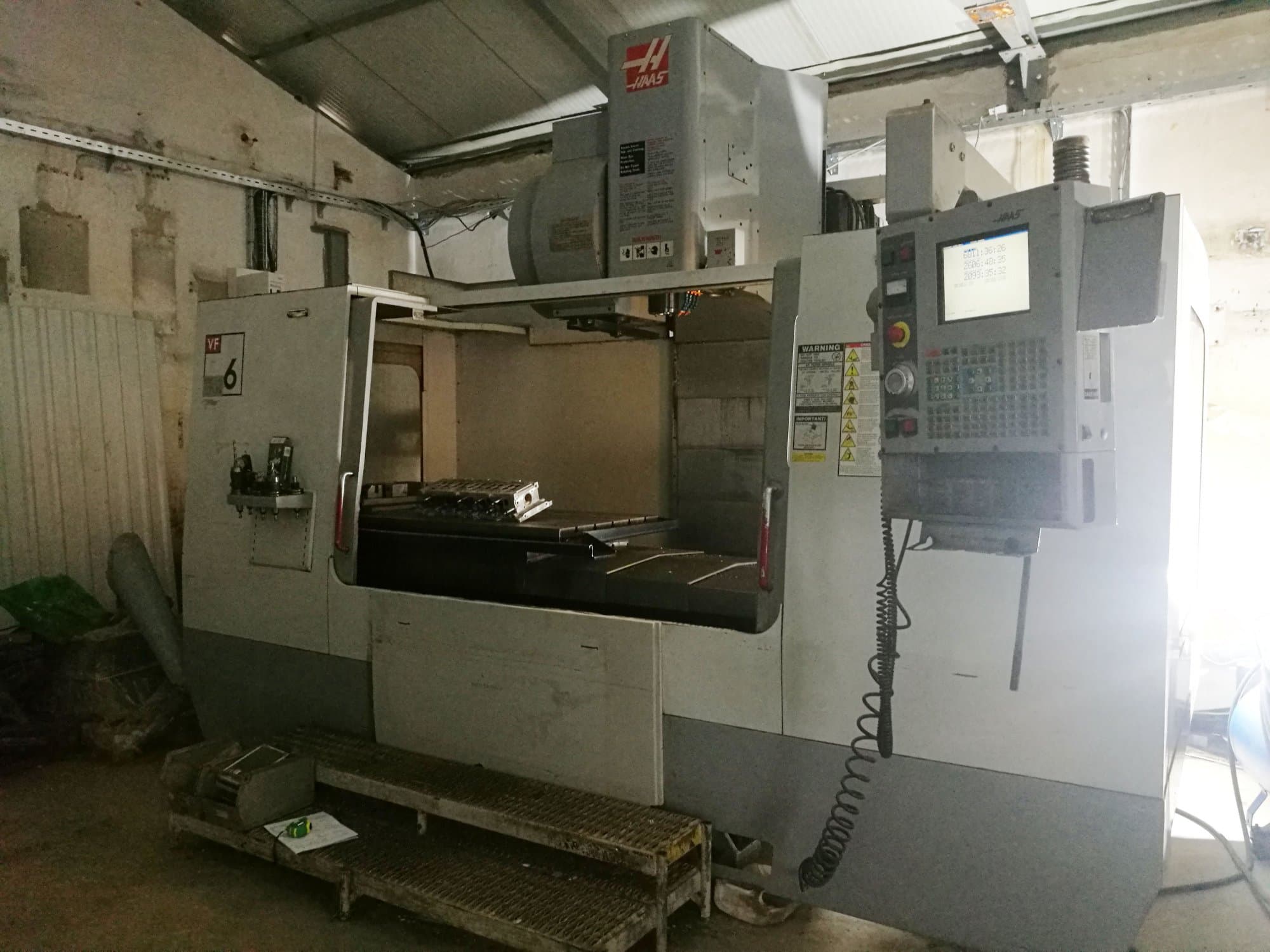

Front view of HAAS VF-6B/40HE Machine
Front view of HAAS VF-6B/40HE Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

HAAS - VF-6B/40HEHR-MIL-HAA-2003-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS VF-6B/40HE Vertical Machining Center, made in USA in 2003, has a production record of 6800 working hours. Equipped with a Control unit of the same brand, this model stands out due to its big table and for mainly working with steel during the past. Some additional equipment such as a tool changer and rotary units are included.

Overview

  • brand: HAAS
  • year: 2003
  • MODEL: VF-6B/40HE
  • production hours: 6800
  • application type: Milling
  • Location: Croatia
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: HAAS

Technical Information - HAAS VF-6B/40HE

General Data

  • Measurements width: 4260 mm
  • Measurements depth: 3300 mm
  • Measurements height: 3300 mm
  • Machine weight: 10200 kg

Control Unit

  • CNC main language: English
  • Brand: HAAS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8100 1/min

Movement

  • X-AXIS Movement: 1626 mm
  • Y-AXIS Movement: 813 mm
  • Z-AXIS Movement: 762 mm

Workpiece

  • Workpiece weight: 1814 kg

Table

  • Outer length: 1626 mm
  • Outer width: 711 mm

Tools

  • Max weight: 5.4 kg
  • Max tool diameter: 152 mm
  • Max tool length: 406 mm

Media

  • Main electronic connection: 460 V
  • Chip conveyor: Yes

    Additional equipment

    • - Automatic Tool Changer (24+1)
    • - HAAS Rotary unit 4th axis
    • - Machine Vice

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
