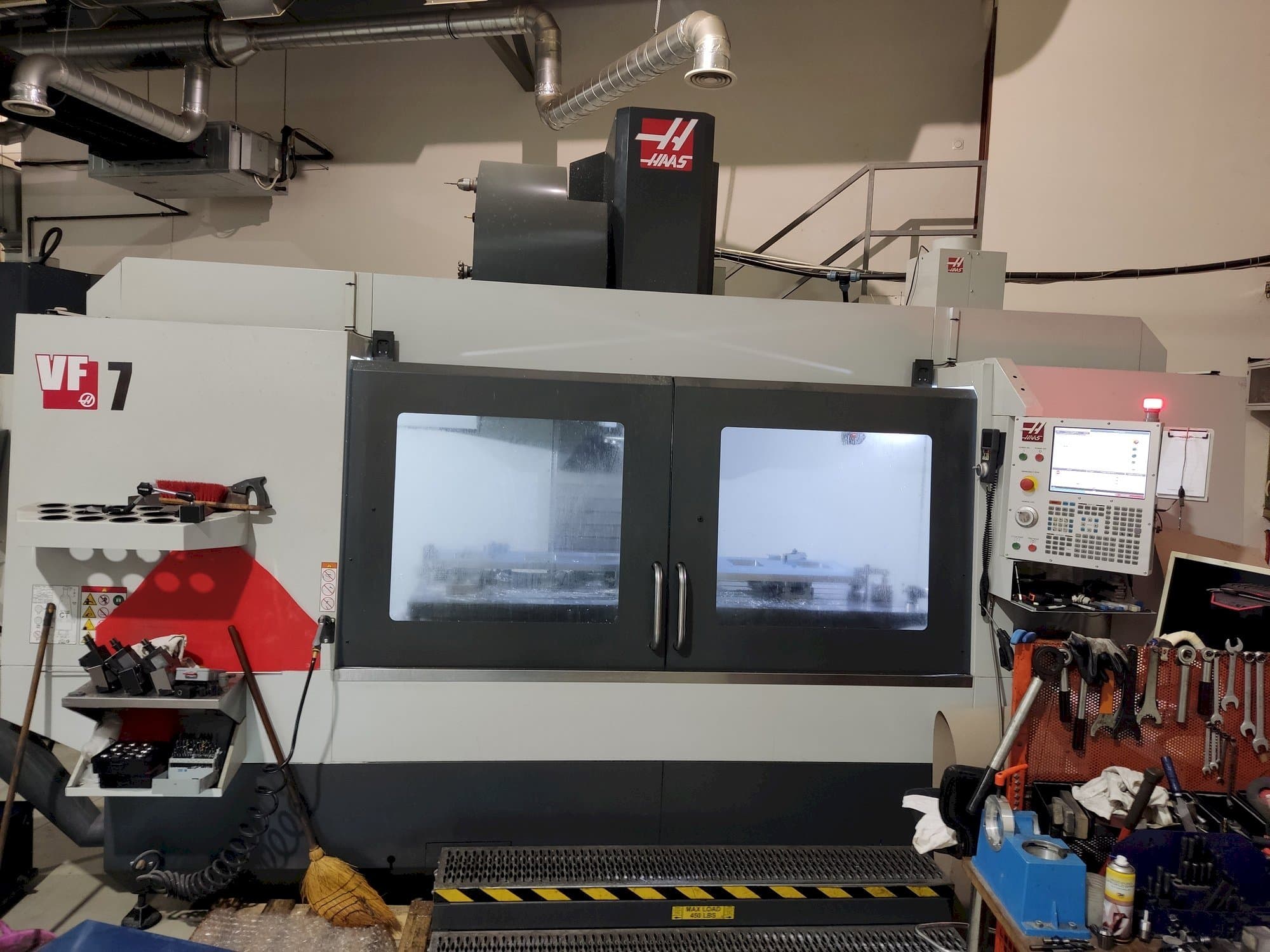

HAAS VF-7 Vertical Machining center

Show in original language

This HAAS VF-7 Vertical Machining Center was manufactured in the year 2019 and has 1696 production hours, of which 328 are cutting hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: HAAS
year: 2019
MODEL: VF-7
production hours: 1696
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-7

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2134 MM
Y-AXIS Movement: 813 MM
Z-AXIS Movement: 762 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table min/max: 127/889mm
- - Programmable coolant nozzle
- - Media display m-code; m130 is used within an nc program to call up media files (images, video, pdf)
- - Remote jog handle with color lcd
- - Rigid tapping, , machine lifting provision, ct option
- - Side mount tool changer, 50 taper, 30+1 slots, 1gb standard program memory,
- - Haasconnect: remote monitoring
- - Chip auger, 360 liter coolant tank with 0. 6kw pump, ethernet interface
- - Early power failure detection module, pre-configured to accept through spindle coolant system,
- - 50 taper, 22. 4 kw vector drive, geared head;
Qualitative Machine Benefits:
- - Wireless intuitive probing system; renishaw
- - Visual part programming system, user definable macros
- - Spindle orientation, coordinate rotation and scaling
- - Enclosure exhaust system, haas tool cart for 50 taper tools, four shelf unit holds 60 tools
- - Chip tray filter kit; supplemental chip strainer kit keeps chips from entering the coolant system. 200 micron filter
- - Wifi connection for haas control, haas window blast

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
