HAAS VF2SS

Photo Gallery

HAAS - VF2SSES-MIL-HAA-2015-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

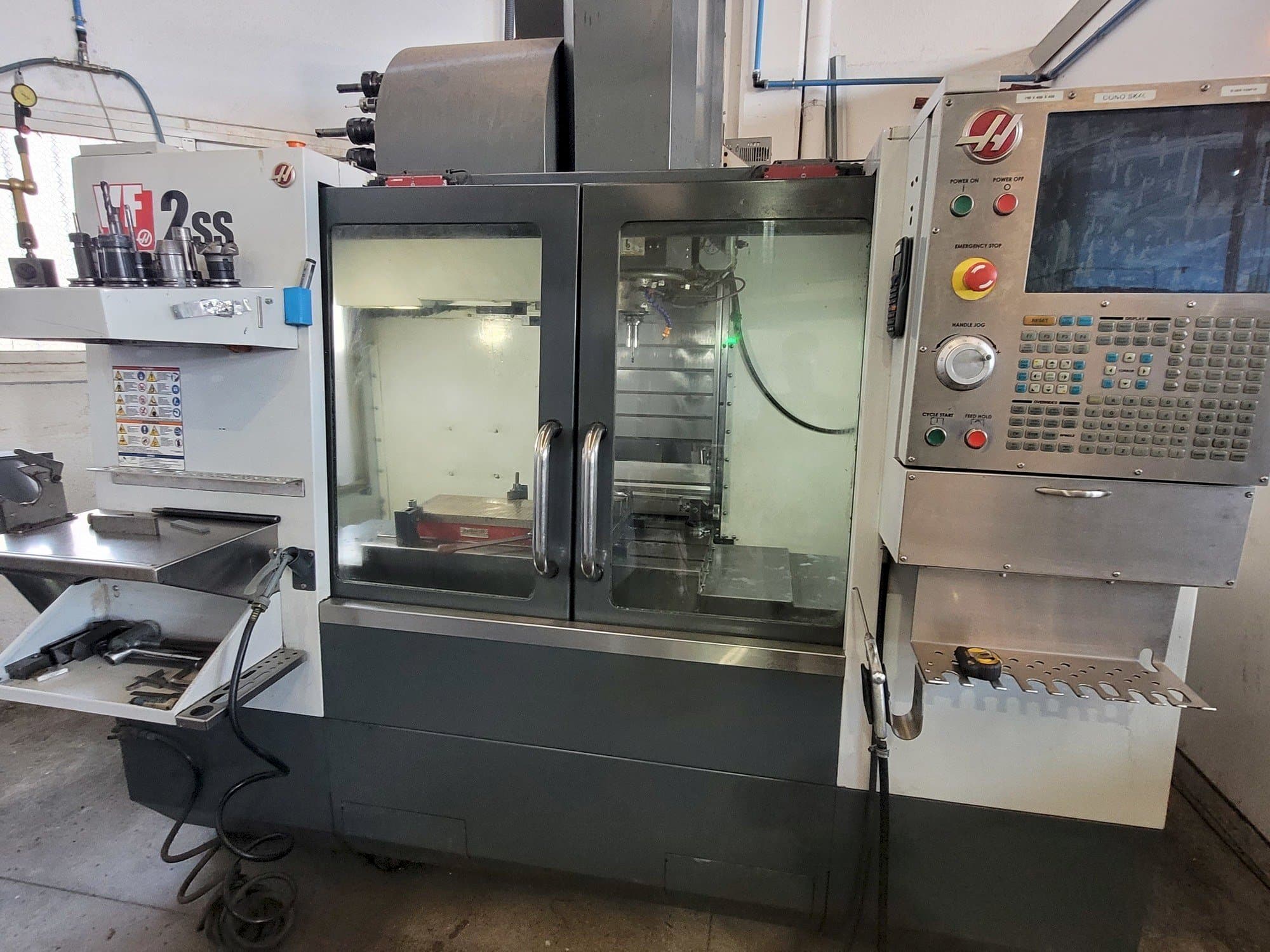

HAAS VF2SS Vertical Machining center

Show in original language

This HAAS VF2SS Vertical Machining center was manufactured in the year 2015 and has 7451 hours, of which 2748 are spindle hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2015
MODEL: VF2SS
production hours: 7451
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF2SS

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Tools

Type of tool holder: SK40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Extended hard disk
Programmable cooling
High-speed parameters
Chip extractor
Renishaw probe
Extended m functions

Technical Machine Benefits

Nose of spindle to table (~ max. ) 610 mm
Spindle nose to table (~ min. ) 102 mm
Max. Torque 122. 0 nm @ 2000 rpm, length 914 mm , width 356 mm
T-slot width 15. 90 mm to 16. 00 mm
Wheelbase with t-slot 125 mm
Number of standard t-slots 3
Max. Table weight (evenly distributed) 680 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
