➤ Used HAAS VF3 - 2003 - Vertical Machining Center

Show in original language

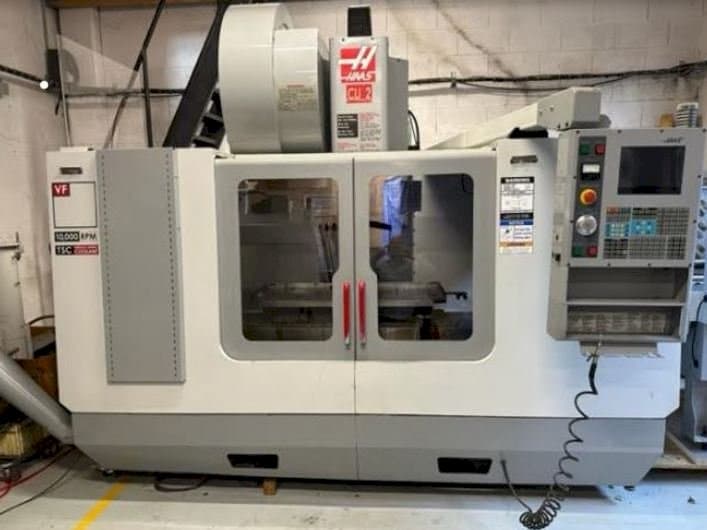

This HAAS VF3 Vertical Machining center was manufactured in the year 2003. It is equipped with a HAAS control unit. The machine has a spindle speed of 10000 rpm.

Overview

brand: HAAS
year: 2003
MODEL: VF3
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF3

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1372 mm
Outer width: 61 0mm
Table load: 800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle center coolant 15 bar
- - Magazine: 30 random tools bt 40
- - Pallet changer dimensions 1372 x 610 mm
- - Chip evacuation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
