HAMAI MC-6VA

Photo Gallery

HAMAI - MC-6VANL-MIL-HAM-1990-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

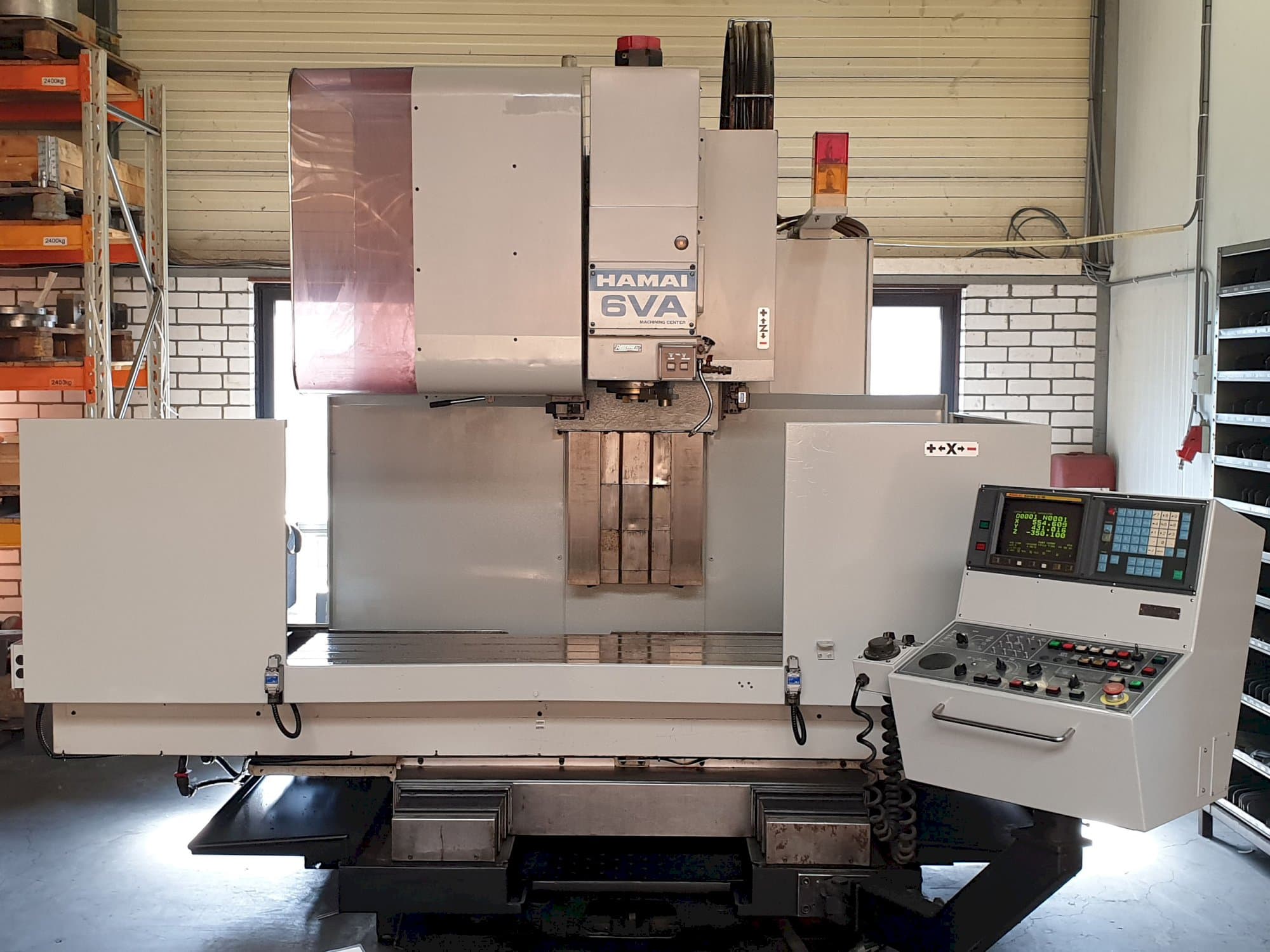

HAMAI MC-6VA Vertical Machining Center

Show in original language

This HAMAI MC-6VA Vertical Machining Center from 1990 was manufactured in Japan and has a production time of 7000 working hours since then. Operated through a FANUC Series O-M Control Unit, this machine counts with a twin arm for direct change. It has an excellent accuracy and a long life span, being notable for its well perfect conditions as it has been recently retrofitted. It comes with a wide range of movement and doors can be openend for long parts. Besides that, it incorporates a saddle mounting to the bedways. Additional equipment is included in the delivery.

Overview

brand: HAMAI
year: 1990
MODEL: MC-6VA
production hours: 7000
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - HAMAI MC-6VA

General Data

Measurements width: 4000 mm
Measurements depth: 3265 mm
Measurements height: 2975 mm
Machine weight: 11700 kg

Control Unit

Model: Series O-M
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 550 mm

Table

Outer length: 1800 mm
Outer width: 890 mm
Number of tslots: 18
Distance between: 250-800 mm

Tools

Slots in storage: 24
Max weight: 15 kg
Max tool diameter: 110 mm
Max tool length: 350 mm
Type of tool holder: Twin Arm Direct Change

Media

Main electronic connection: 380 V
Power consumption: 35 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

1x Electric Transformer
1x Air cooler

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
