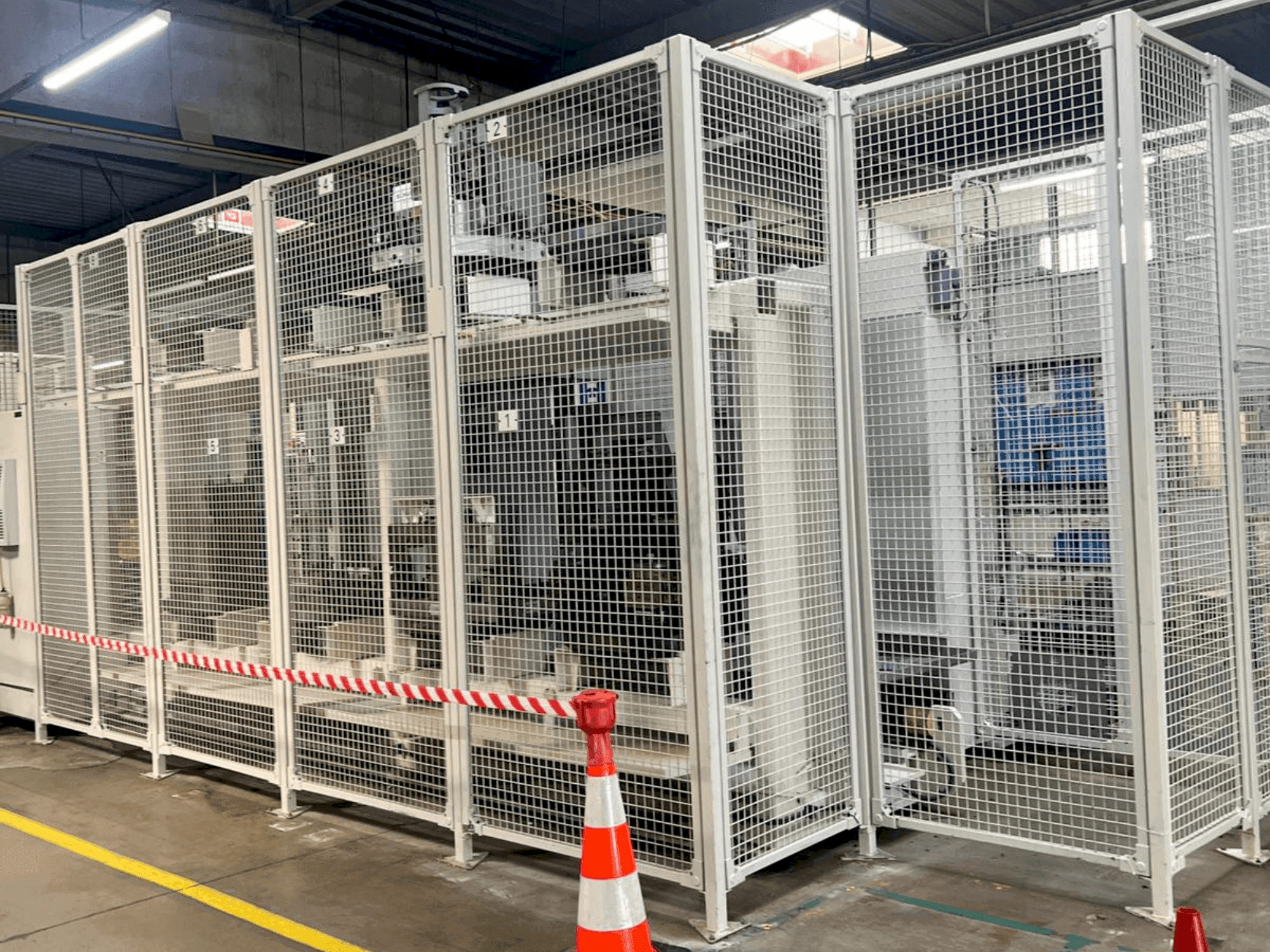

HELLER - MCH 250DE-MIL-HEL-2005-00004

Additional equipment

• Magazine type: Chain magazine / Magazine capacity: 50 to 100 tools (optional)
• Tool System and Magazine / Shelf Magazine: 234 slots (SK), increased tool weight capacity
• X- and Y-axis: 15,000 N (at S3 - 40% duty cycle) / Z-axis: 17,500 N (at S3 - 40% duty cycle)
• Speeds: Traverse Speed (X, Y, Z): 50,000 mm/min / Acceleration (dynamic package): 4.0 m/s² in X, Y, and Z / Rapid Traverse Speed: 60,000 mm/min / Maximum Acceleration: 7.0 m/s²
• Spindle Diameter (front bearing): 100 mm
• Extended Spindle Speed: 12,500 RPM
• Drive Unit: Power/Torque [max.] (at S6 = 40%): 43 kW / 822 Nm / Speed Range: 45-12,500 RPM (extended)
• Model: Siemens GRM rotary table with precision package, including temperature compensation and precision cooler
• Division: 360 x 1° angles / Indexing Accuracy: 6 seconds / Swivel Times for 45°/180°: 2.7 s / 3.5 s
• High Precision Division (option): 360,000 x 0.001° angles, indexing accuracy 10 seconds, swivel times for 45°/180°: 0.9 s / 1.8 s
