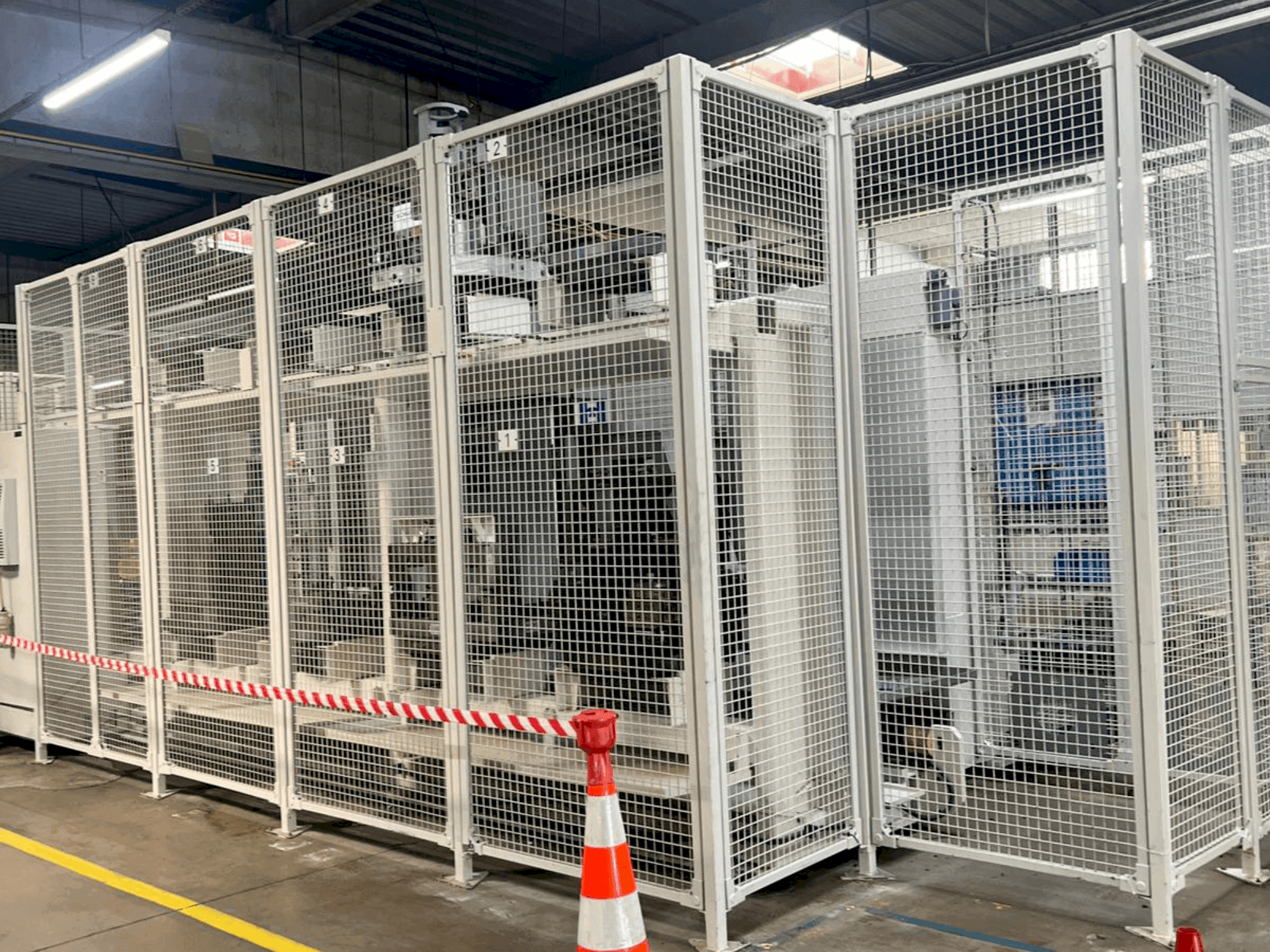

This 4-axis HELLER MCH 250 horizontal machining centre was manufactured in 2006. It features a robust 43 kW drive power with speeds up to 6000 RPM and a rapid traverse speed of 60,000 mm/min. The machine includes a chain magazine with a capacity of up to 100 tools and supports a maximum tool weight of 25 daN. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 machine we have for sale. Contact us for more information.
Overview
- brand: HELLER
- year: 2006
- MODEL: MCH 250
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER MCH 250
Control Unit
- Control Brand: SIEMENS
- Control Model: Siemens SINUMERIK 840 D
Dimensions
- Machine Weight: 19000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 43 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Magazine type: Chain magazine
- Magazine capacity: 50 to 100 tools (optional)
- Rotary Table: Rotary Axis (high precision option) Division: 360000 x 0.001° angles // Indexing accuracy: 10 seconds // Swivel times for 45°/180°: 0.9 s / 1.8 s
- Coolant tank (basic): Approx. 1000 liters
- Coolant pump flow rate at 3 bar: 200 liters/min
- Coolant pump flow rate at 12 bar: 40 liters/min
- Coolant tank (extended): Approx. 1500 liters
- Coolant pump flow rate (extended) at 3 bar: 210 liters/min
- Coolant pump flow rate at 50 bar: 28 liters/min
- Coolant pump flow rate at 70 bar: 22 liters/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
