HERMLE - B 300 UGB-MIL-HER-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

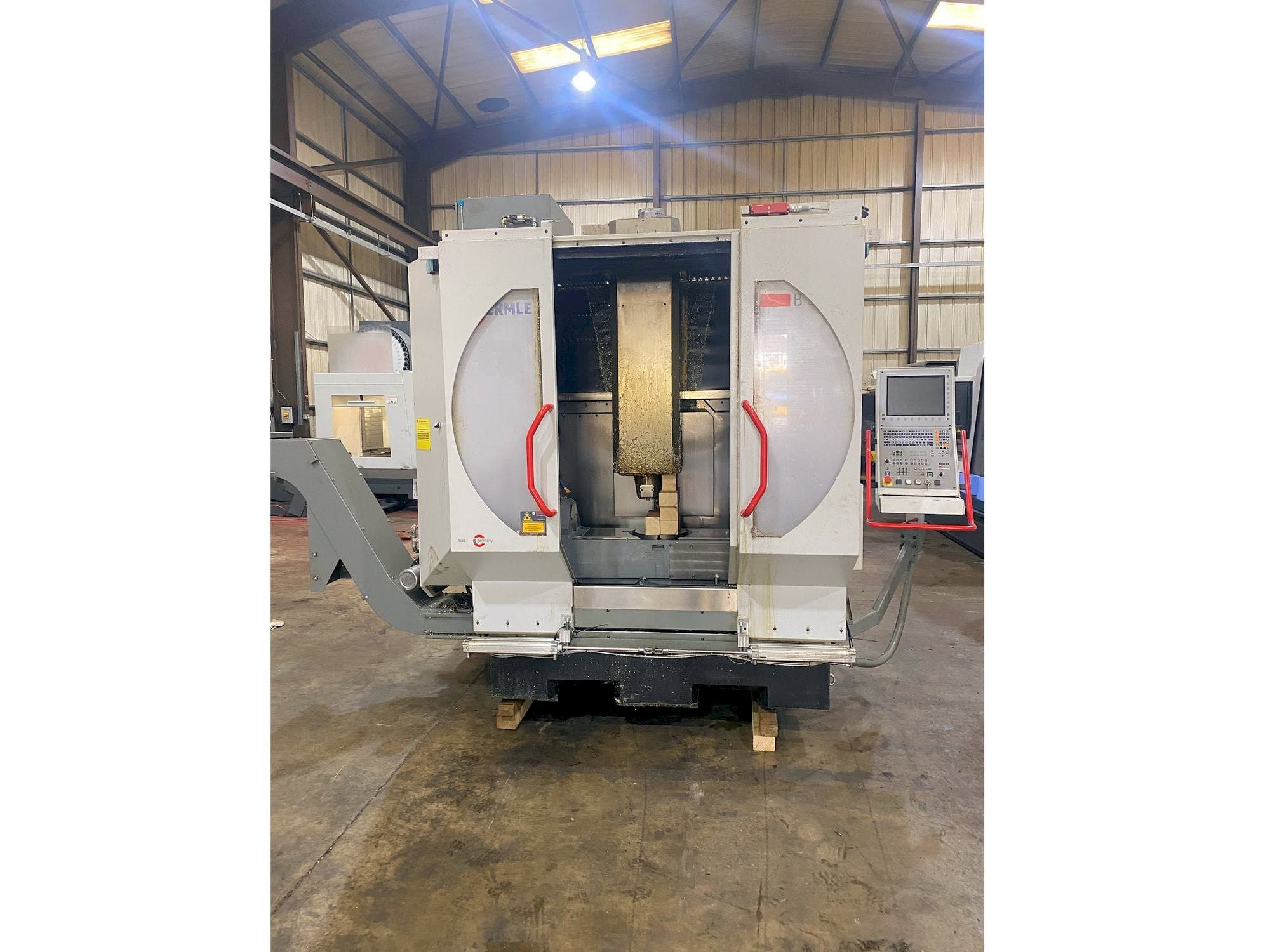

This HERMLE B 300 U Vertical Machining Center was made in the year 2011 in Germany. This machine has been on for 74148 hours, of which 23140 are spindle hours. It is operated through a Heidenhain iTNC 530 control unit. This 5 axis machine can work with a spindle speed of 15000 rpm and a table diameter 280 mm.

Overview

brand: HERMLE
year: 2011
MODEL: B 300 U
production hours: 74148
application type: Milling
Location: United Kingdom
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE B 300 U

General Data

Measurements width: 3340 MM
Measurements depth: 2700 MM
Measurements height: 2900 MM
Machine weight: 8500 KG

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 500 MM

Workpiece

Workpiece weight: 250 KG

Tools

Slots in storage: 30
Max tool diameter: 80/125 MM
Max tool length: 300 MM
Type of tool holder: HSK-A63

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 0. 001 degrees (360 degree full rotation)
- - A axis -/+ 110 degrees
- - Tool setter, workpiece probe
- - Table diameter 280 mm
- - Rapid feedrate 30 m/min.
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
