➤ Used HERMLE C 250 For Sale | gindumac.com

Show in original language

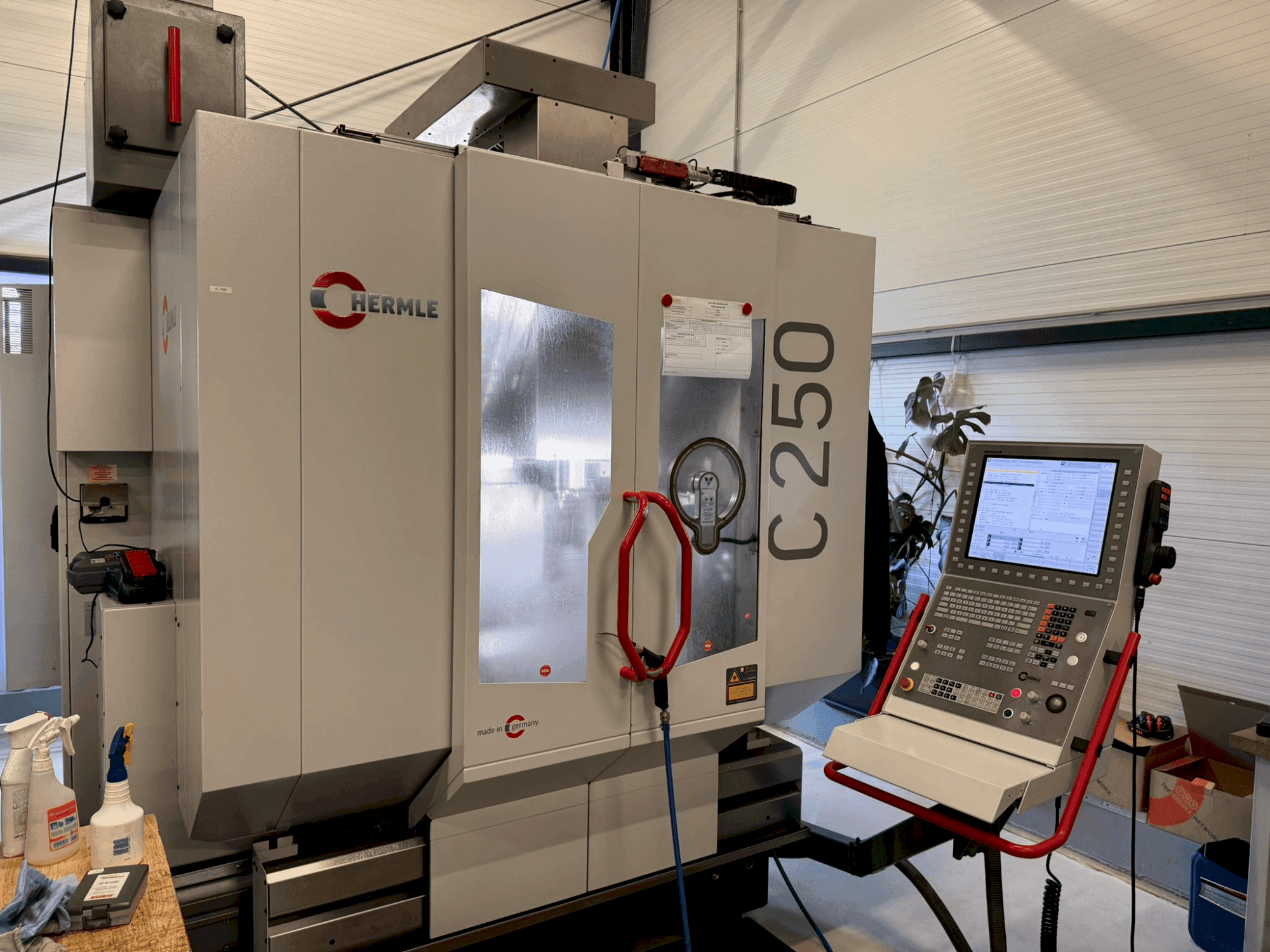

This 5-axis HERMLE C 250 vertical machining center was manufactured in 2016. It features a Heidenhain TNC 640 CNC control, dynamic efficiency and precision options, and a spindle with a maximum speed of 18,000 rpm. The tool magazine holds 30 tools, and the NC-controlled tilting rotary table measures Ø 450x360 mm. It also includes a through-tool coolant system at 40 bar and a scraper belt chip conveyor. For more information about this vertical machining center, please reach out to us.

Overview

brand: HERMLE
year: 2016
MODEL: C 250
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre

Technical Information - HERMLE C 250

Controller

Brand: Heidenhain
Model: TNC 640

Main drive

Spindle speed range: 18000 rpm 1/MIN
Tool taper: HSK-A63

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 550 MM
Z-AXIS Movement: 450 MM

Media

Chip conveyor: Yes

Additional Information

Additional equipment

number of tools: 30
Cooling trhough spindle yes
Through-tool coolant system (40 bar pressure)
Chip Conveyor: Scraper belt type with through-tool cooling
Air blast cooling (external)
Manual cabin door and roof
Polycarbonate protective windows, including a rotating inspection window
BLUM tool breakage monitoring and tool setting system (A2 type)
Coolant gun and emulsion mist extraction system
KinematicOpt: Hardware included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
