HERMLE C30 U

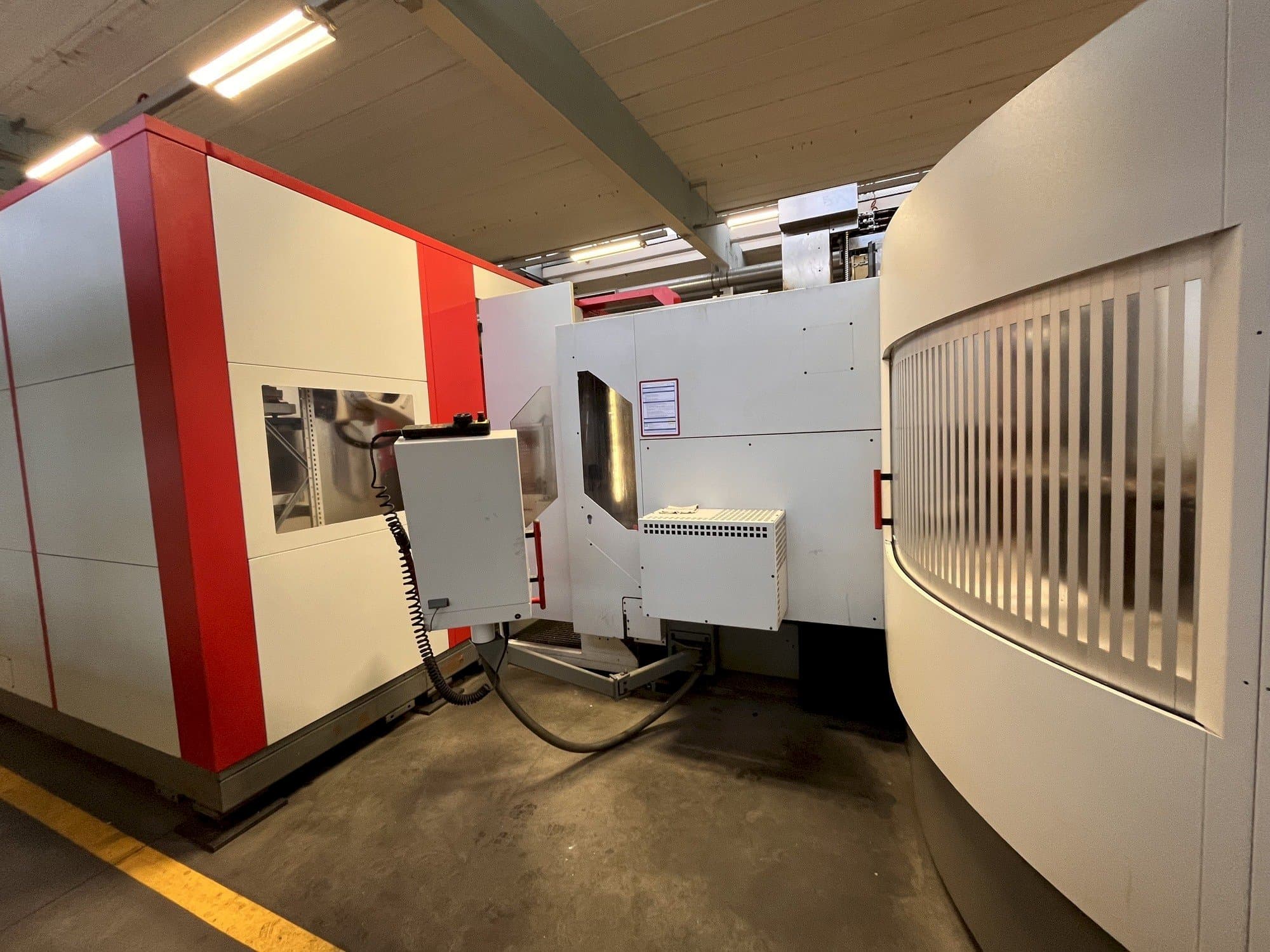

Photo Gallery

HERMLE - C30 UDE-MIL-HER-2009-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HERMLE C30 U Vertical Machining center

Show in original language

This HERMLE C30 U Vertical Machining Center was manufactured in the year 2009. It is equipped with a Heidenhain iTNC 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. 2 units are available.

Overview

brand: HERMLE
year: 2009
MODEL: C30 U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE C30 U

General Data

Measurements width: 3154 mm
Measurements depth: 2214 MM
Measurements height: 2722 mm
Machine weight: 9500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Tool taper: HSK A63
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm
A-AXIS Movement: +/- 115 º
B-AXIS Movement: 360°

Tools

Max weight: 8 kg
Max tool diameter: 300 mm
Max tool length: 125 mm
Type of tool holder: HSK A63

Additional Information

Additional equipment

come with Renishaw touch-probe
1 pallet
Chip conveyor is included
The inner coolant high pressure pump is not included
The robot is not included in the price

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
