- ➤ Used HITACHI SEIKI HT 40S Lathe For sale | gindumac.com

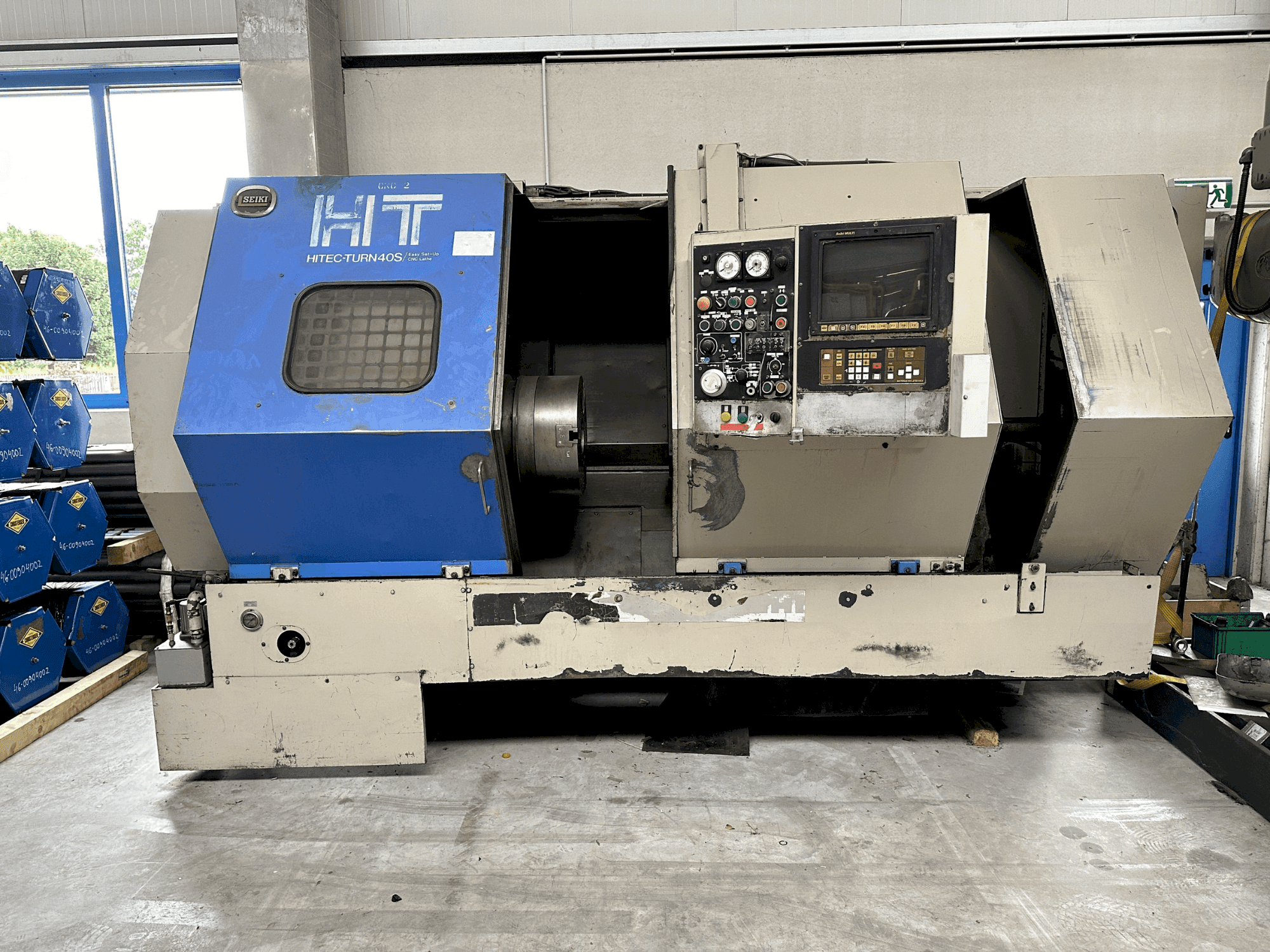

This HITACHI SEIKI HT 40S lathe was manufactured in 1990. It features a spindle through-hole of 120mm, a spindle speed range of 20-1800 rpm, and a spindle motor of AC30 KW. The machine can accommodate up to 12 tools and supports a maximum swivel range of 700mm. Ideal for detailed machining, the HITACHI SEIKI HT 40S machine we have for sale represents a robust addition to any workshop. Contact us for further details regarding this lathe.
Overview
- brand: HITACHI SEIKI
- year: 1990
- MODEL: HT 40S
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - HITACHI SEIKI HT 40S
General Data
- Machine weight: 7500 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 20-1800 rpm 1/MIN
- Spindle motor power: AC 30 KW
- Tool taper: MT-5
- Number of axis: 2
Movement
- X-AXIS Movement: 330 mm
- Z-AXIS Movement: 1120 mm
Additional Information
- Technical Machine Benefits:
- - Max swivel range: 700 mm
- - Shaft length: 700 mm
- - Spindle nose: a2-11
- - Rod diameter: 64 mm
- - Spindle diameter: 110 mm
- - Travel (quill): 120 mm
- - Directly programmable 4-digit s-function for speed change.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
