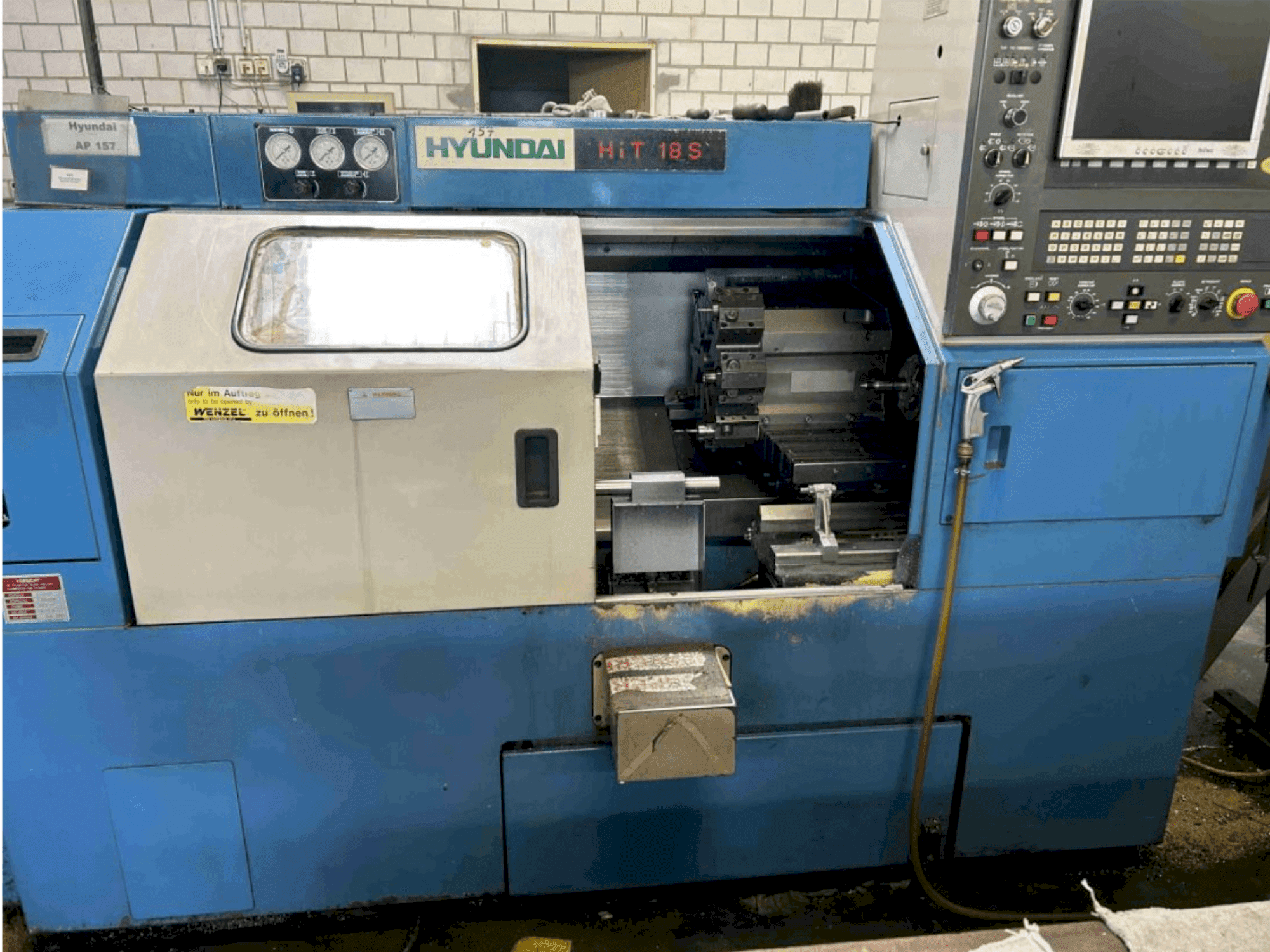

This Hyundai HIT-18S lathe was manufactured in 1998. It features a spindle speed of 3600 rpm, a spindle diameter of 70 mm, and a motor power of 15 kW. Equipped with a Siemens 840 C control, an 8-station turret, and a 3-jaw chuck, it is fully functional and ready for demonstration. Dimensions are 2600x1650x1830 mm, weighing 4300 kg. For more information about this lathe, please reach out to us.
Overview
- brand: Hyundai
- year: 1998
- MODEL: HIT-18S
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Hyundai HIT-18S
Control Unit
- Control Brand: SIEMENS
- Control Model: 840 C
Dimensions
- Machine Depth: 1650 mm
- Machine Height: 1830 mm
- Machine Weight: 4300 kg
Movement
- Number of Axes: 2
- X-axis Travel: 180 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 3600 RPM
Additional Information
Additional equipment
- 3-Jaw Chuck with Hollow Clamping Cylinder
- Fully Automatic Tool Presetter
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
