Hyundai Wia F400

Photo Gallery

Hyundai Wia - F400CZ-MIL-HYU-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia F400 Milling

Show in original language

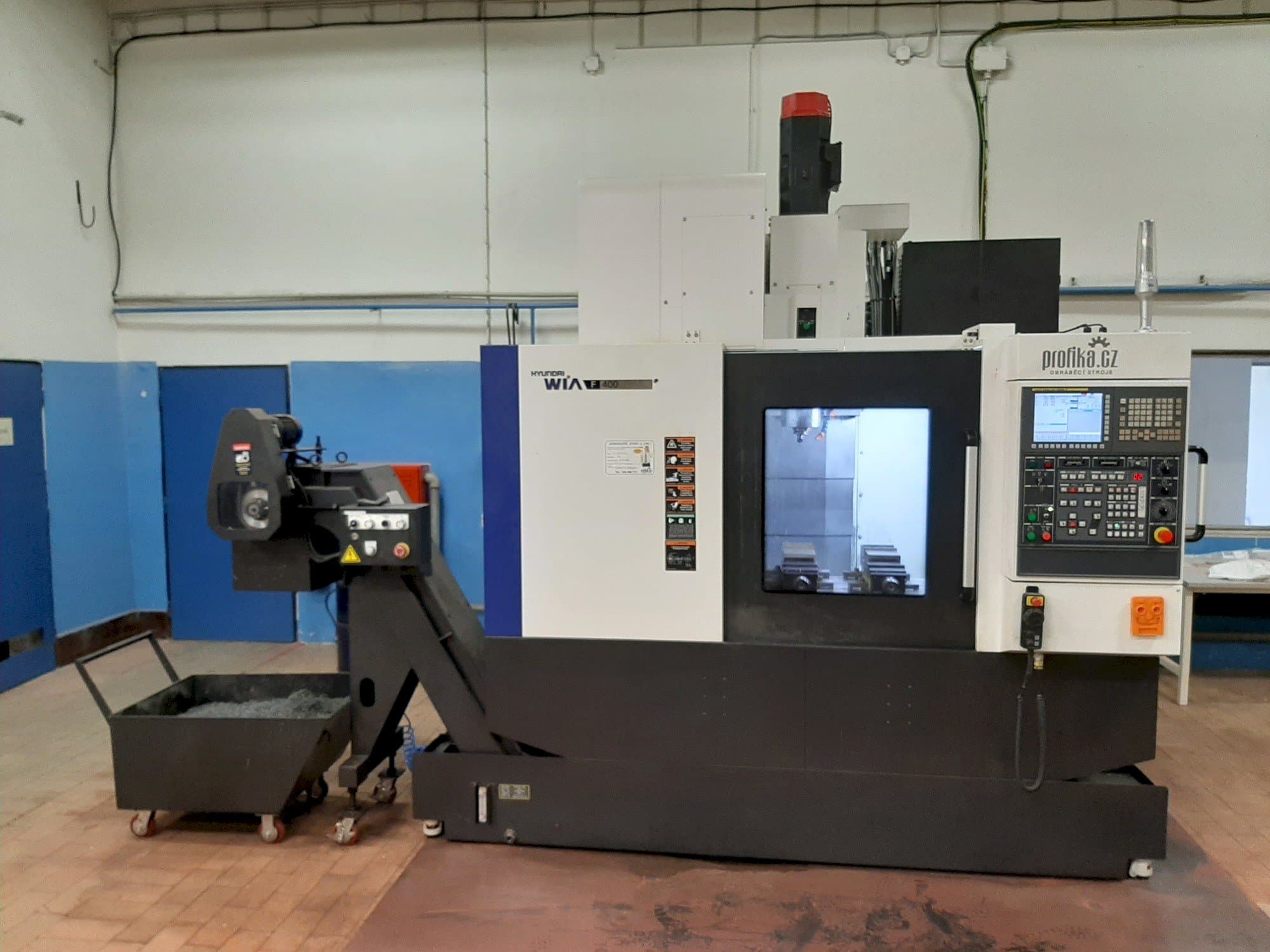

This Hyundai Wia F400 Vertical Machining Center was manufactured in 2016 in South Korea. It only has 997 working hours. This 3 axis machine operates through a Fanuc Series 32i control unit. It has a spindle speed up to 12000 rpm. The machine is like new, very low working hours.

Overview

brand: Hyundai Wia
year: 2016
MODEL: F400
production hours: 997
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Hyundai Wia F400

Control Unit

Model: Series 32i
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 11/7.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 520 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1000 mm
Outer width: 460 mm

Tools

Slots in storage: 24
Type of tool holder: #40

Media

Main electronic connection: 380 V
Power consumption: 20 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine like new

Technical Machine Benefits

Workpiece probe omp 60 renishaw
Cooling thru spindle 20 bars
Tool probe ts27r renishaw
Manual guide workshop programming
Software options: fanuc al contour control ii, hw-mcs, hw-afc
Set of tool holders
Transformer
Rapid feeds 32/32/32 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
