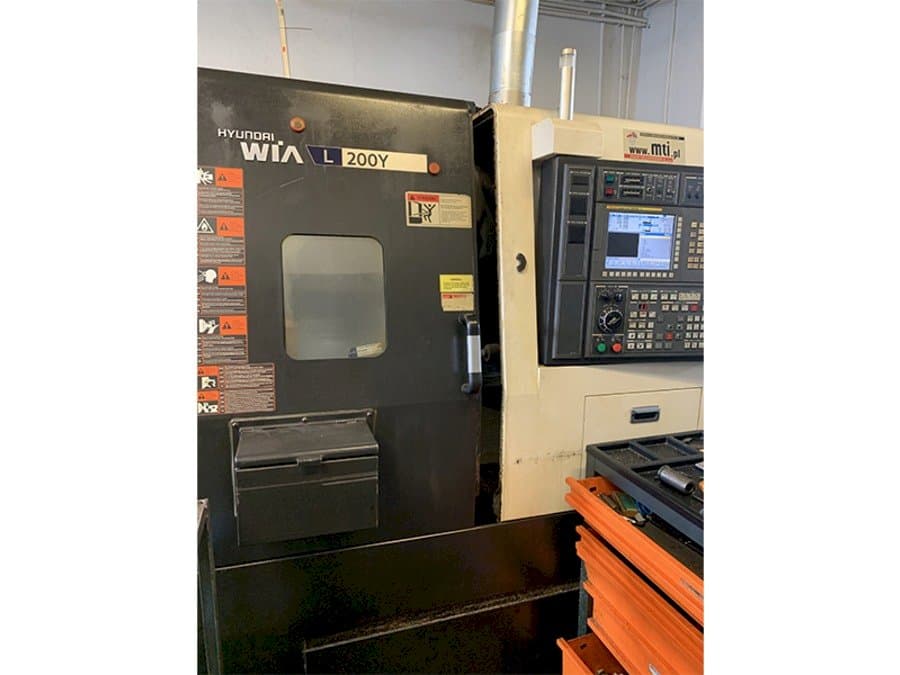

Hyundai Wia L200Y Lathe

Show in original language

This Hyundai Wia L200Y Lathe was manufactured in the year 2013 in Korea. It is operated through a FANUC Series 32i-Model A control unit. This 4 axis machine works with a spindle speed up to 4000 rpm. This machine is in very good working condition and ready for tests.

Overview

brand: Hyundai Wia
year: 2013
MODEL: L200Y
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia L200Y

General Data

Measurements width: 3045 mm
Measurements depth: 1705 mm
Measurements height: 2020 mm
Machine weight: 4500 kg

Control Unit

Model: Series 32i-Model A
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 4

Turret

Number of tool slots: 12 pcs

Media

Main electronic connection: 380V / 50Hz
Power consumption: 22 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning dia. : 240 mm
- - Max. Turning length: 530 mm
- - Swing over the bed: 550 mm
- - Swing over the carriage: 350 mm
- - Max bar capacity dia. : 65 mm
- - Chuck: kitagawa 210 mm
- - Probe included
- - Tailstock included
Qualitative Machine Benefits:
- - Some standard and driven tools included
- - Machine in very good working condition, ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
