Used Lathe INDEX ABC 42 - 1996 - for sale | gindumac.com

Show in original language

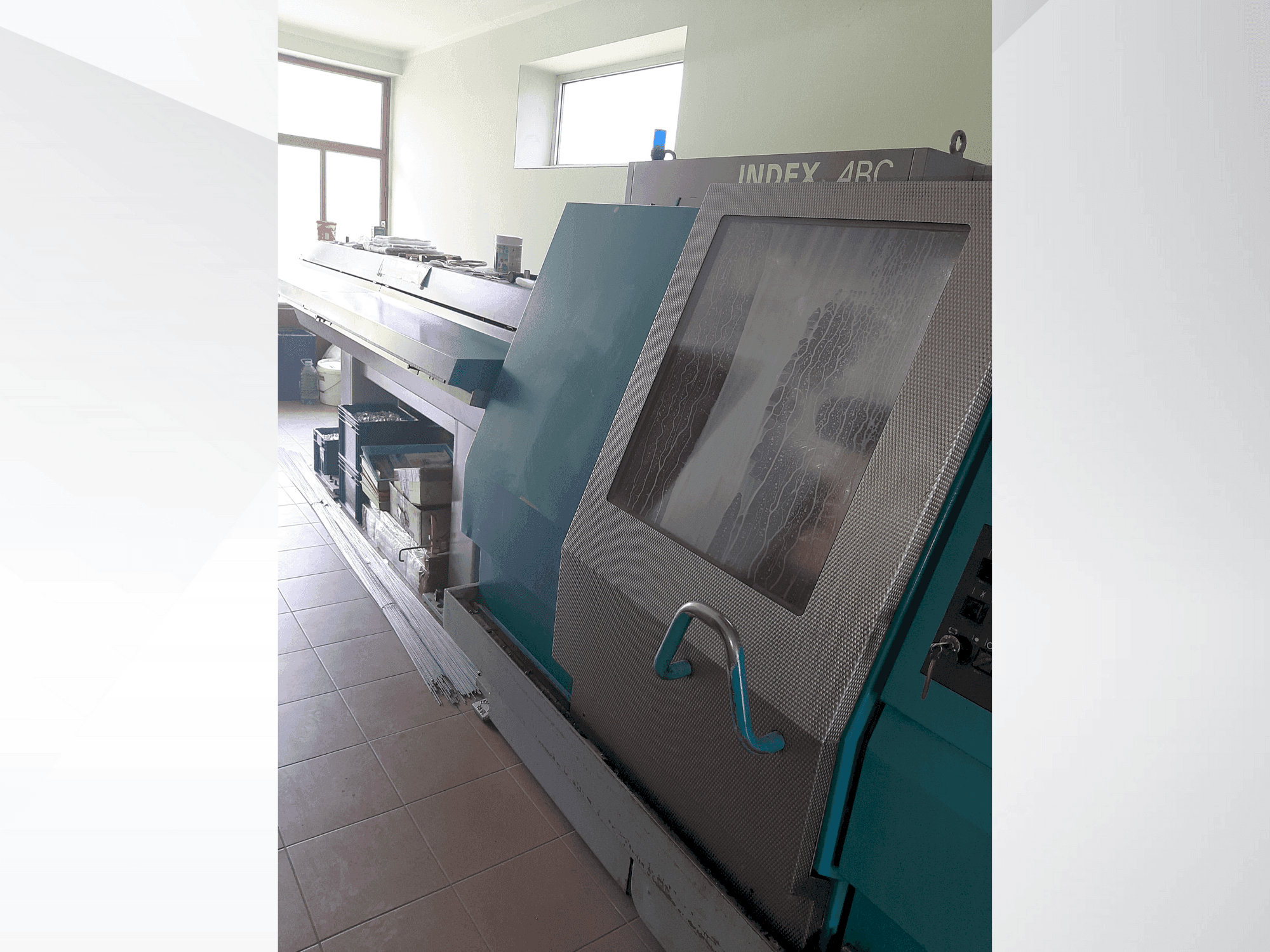

This 2-Axis lathe, manufactured in 1996, offers precision and versatility. With a turning diameter of 42mm and max. turning length of 280mm, it boasts a Siemens C200-4D control system. Equipped with 2 turrets and a bar loading magazine LM 3200, it facilitates efficient production. Notable features include backside machining in 3 positions and a synchronous spindle on turret 1. Thread milling and polygon turning capability enhance its functionality. For those seeking reliability and performance, consider this INDEX ABC 42 lathe. Contact us for further details.

Overview

brand: Index
year: 1996
MODEL: ABC 42
application type: Turning
Location: Serbia
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - Index ABC 42

General Data

Machine weight: 3000 kg

Control Unit

Model: C200-4D Index
Brand: SIEMENS

Main drive

Spindle speed range: 6300 rpm 1/MIN

Turret

Number of turrets: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of tool stations: 3
- - Total power requirement: 27 kw
- - Tool drive on turret 1 and turret 2 // synchronous spindle on turret 1
- - Bar loading magazine lm 3200
- - Turning diameter: 42 mm // turning length: max. 280 mm
- - Drive power - main spindle: 13 / 21 kw // torque: max. 62 / 102 nm
- - Spindle diameter in front bearing: 85 mm // spindle passage: 42 mm
- - C-axis: 2. 5 °
- - Turret 1 // number of tool stations: 7 + (1) // tool system: din 69880 / 25 mm
- - Turret 2 // number of tool stations: 6 x-axis: 81 mm // z-axis: 80 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
