➤ Index G200 | Lathe For Sale

Show in original language

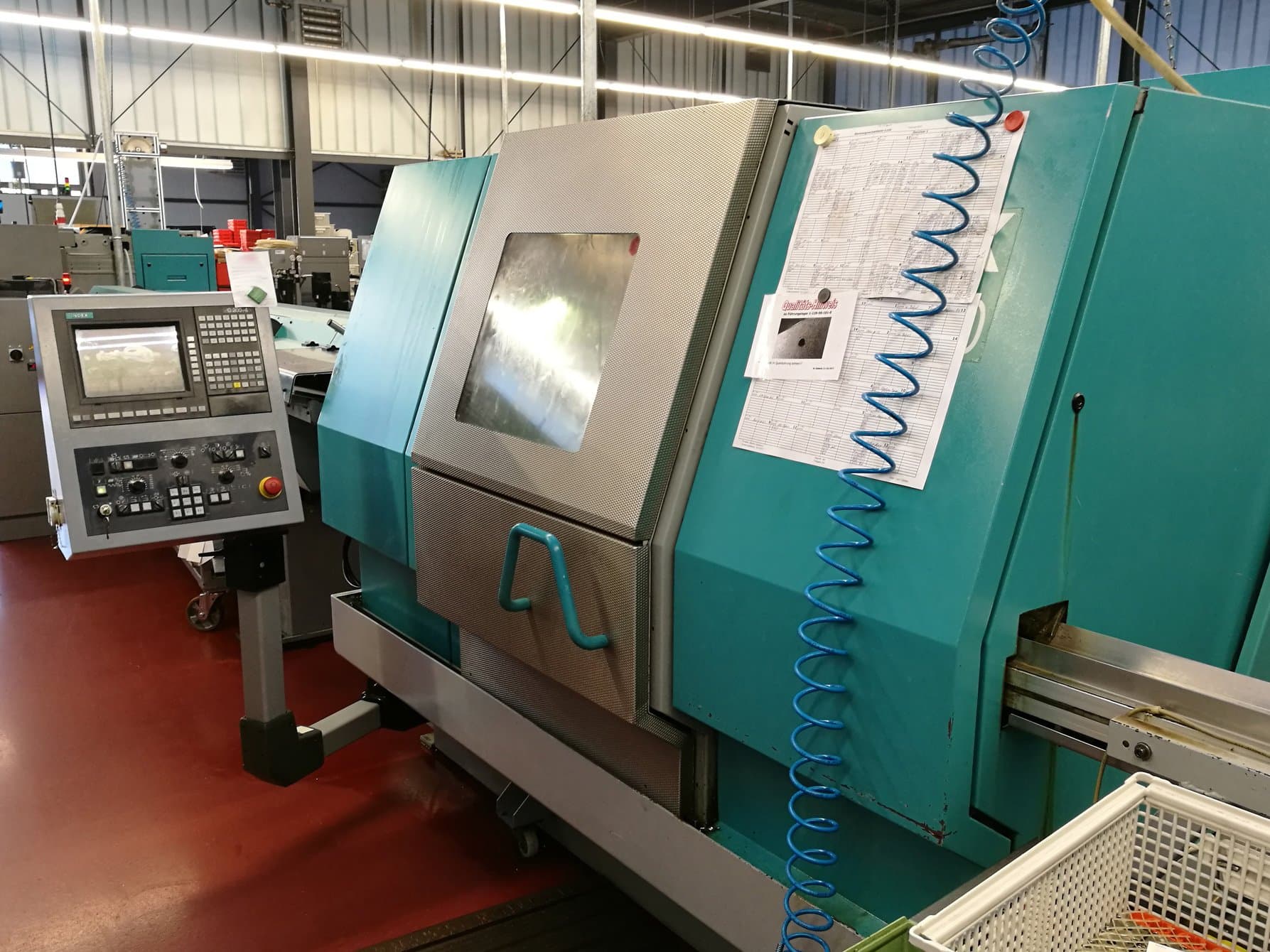

The Index G200, fabricated in the year 2000 in Germany, is a Lathe that has been operative for 49920 working hours. The Index G200 comes with a control unit by Index itself (Index C 200-4) and has the advantage of high reliable performance and a high durability. This machine comes with an Index MBL 65/3700 Bar loader.

Overview

brand: Index
year: 2000
MODEL: G200
production hours: 49920
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: INDEX

Technical Information - Index G200

General Data

Measurements width: 7000 mm
Measurements depth: 1600 mm
Measurements height: 1800 mm
Machine weight: 5300 kg

Control Unit

Model: C200-4
Brand: INDEX

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/min
Spindle motor power: 29 kW
Spindle bore: 65 mm

Movement

X-AXIS Movement: 155 mm
X-AXIS Feed Force: 5000 N
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 60 mm
Y-AXIS Feed Force: 10000 N
Y-AXIS Rapid traverse: 7.5 m/min
Z-AXIS Movement: 590 mm
Z-AXIS Feed Force: 5000 N
Z-AXIS Rapid traverse: 30 m/min
B-AXIS Movement: 360° MM

Turret

Number of turrets: 2
Number of tool slots: 14
Rotating tools: Yes
Tool taper: VDI 25

Media

Main electronic connection: 400 V / 50 Hz / 3P
Power consumption: 40 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Bar loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
