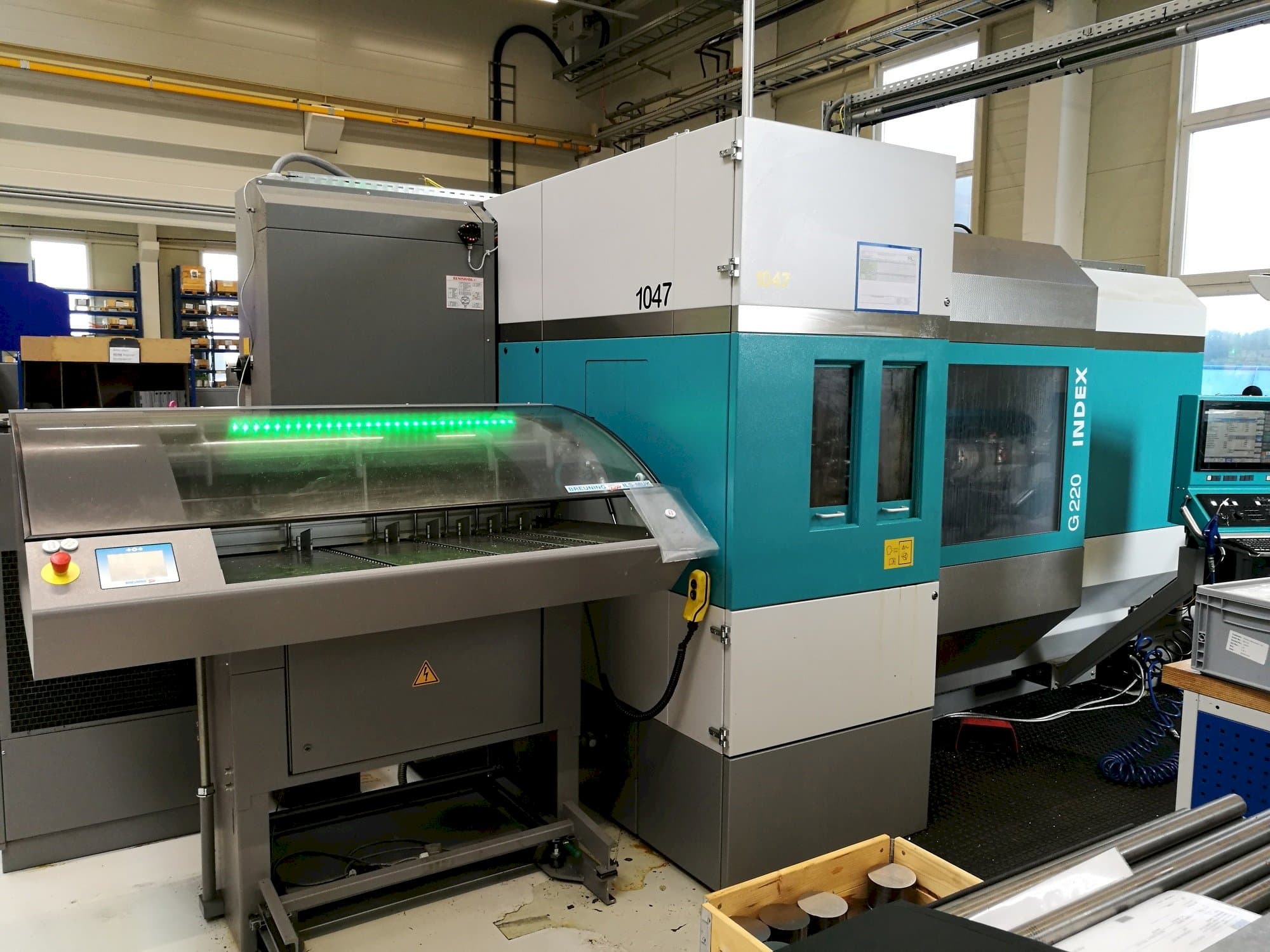

This Index G220 Lathe was built in 2016 in Germany. It has been operative for only 18400 hours since then. It is operated through a SIEMENS SINUMERIK 840D control unit. This machine is equipped with a IRCO bar loader and a high pressure pump 70 bar. It incorporates a C-Axis, as well as 2 turret.

Overview

brand: Index
year: 2016
MODEL: G220
production hours: 18400
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Index G220

General Data

Measurements width: 4325 mm
Measurements depth: 2340 mm
Measurements height: 2550 mm
Machine weight: 14000 kg

Control Unit

Model: Sinumerik 840D
CNC main language: German
Brand: SIEMENS

Main drive

Number of spindles: 3
Spindle speed range: 3500 rpm 1/MIN

Movement

X-AXIS Movement: 355 - 185 mm
Y-AXIS Movement: plus/minus 80 - 50 mm
Z-AXIS Movement: 1040 - 1000 mm
B-AXIS Movement: plus 50°, minus 230° MM
C-AXIS Movement: 1040 mm

Workpiece

Workpiece drm over bed: 1000 mm

Turret

Number of turrets: 2

Tools

Slots in storage: 2x50 HSK, 12VDI30
Type of tool holder: HSK63T & VDI30

Media

Main electronic connection: 400 V
Power consumption: 81 kVA

Additional equipment

- High pressure pump 70 bar
- IRCO bar loader

Additional Information

Machine history

Material type: Exotix materials (inconell 718)
End product: Aircraft parts (turbine, structure)
Industries: Aerospace

Machine Benefits

Technical Machine Benefits:
- - 9 axes machine
- - High pressure 70 bar cooling
- - Workpiece pick up with band logistic
Qualitative Machine Benefits:
- - As new
- - Little working hours

Extra information

- This Index G220 is a high quality multi axis Milling & Turning Center.
