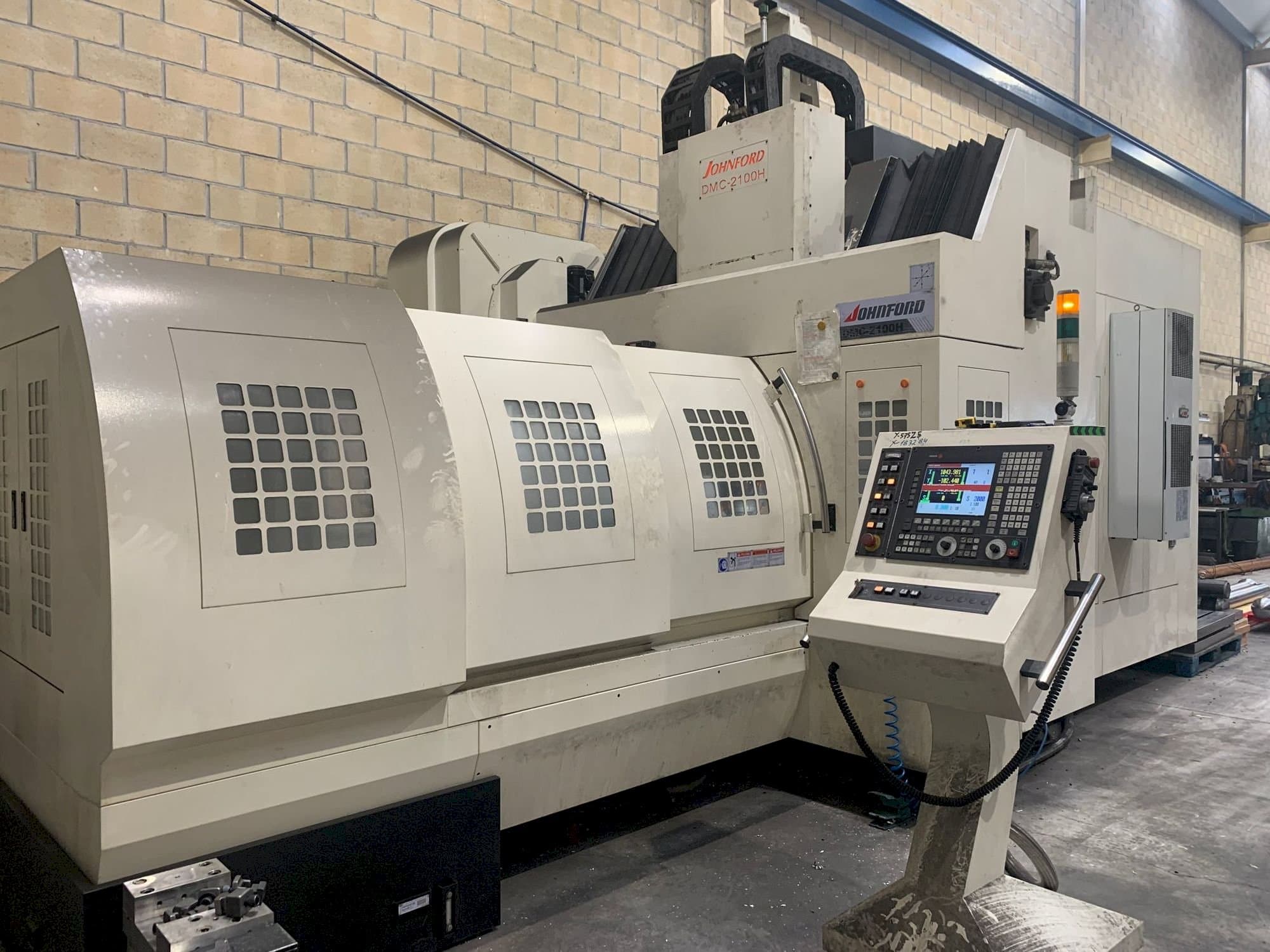

Front view of Johnford DMC-2100H machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Johnford DMC-2100H

Photo Gallery

Johnford - DMC-2100HES-MIL-JOH-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Johnford DMC-2100H Milling Machine

Show in original language

This Johnford DMC-2100H Milling Machine was manufactured in Taiwan in the year 2017. This 3 axis machine is equipped with a Fagor 8055 control unit. It can work with a spindle speed up to 6000 rpm. The machine is in good conditions, counts with low working hours.

Overview

brand: Johnford
year: 2017
MODEL: DMC-2100H
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FAGOR

Technical Information - Johnford DMC-2100H

General Data

Measurements width: 6515 mm
Measurements depth: 3400 mm
Measurements height: 3800 mm
Machine weight: 23600 kg

Control Unit

Model: 8055
Brand: FAGOR

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2070 mm
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 10000 kg

Table

Outer length: 2100 mm
Outer width: 1100 mm

Tools

Slots in storage: 24
Max weight: 15 kg
Max tool diameter: 200 mm
Max tool length: 400 mm
Type of tool holder: ISO-50

Additional Information

Machine Benefits

Qualitative Machine Benefits

Little working hours
Very good condition

Technical Machine Benefits

Distance between columns 1300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
