Johnford VMC 650A

Show in original language

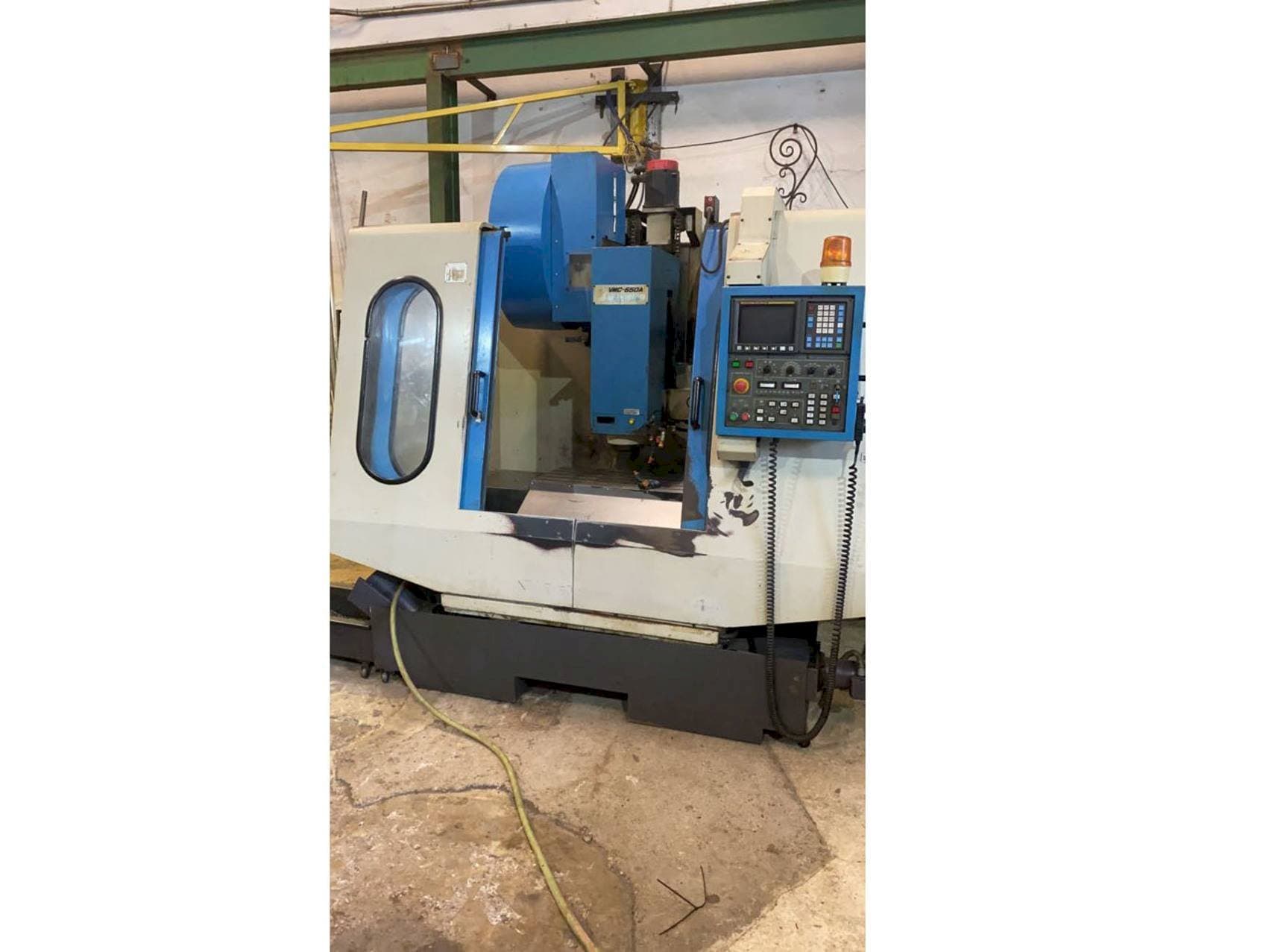

This Johnford VMC 650A Vertical Machining Center was built in the year 1998. It has a production history of approximately 38000 working hours. This 3 axis machine is operated through a FANUC Series O-M Control unit. It can work with a spindle speed up to 6000 rpm. This machine was mechanically and electrically rebuilt in October 2020.

Overview

brand: Johnford
year: 1998
MODEL: VMC 650A
production hours: 38000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Johnford VMC 650A

General Data

Measurements width: 2350 mm
Measurements depth: 2200 mm
Measurements height: 2600 mm
Machine weight: 4500 Kg

Control Unit

Model: Series O-M
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 800 Kg

Table

Outer length: 800 mm
Outer width: 450 mm

Tools

Slots in storage: 20
Type of tool holder: BT 40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Mechanically and electrically rebuilt in october 2020 (new electrovalves, cards, wiring, air hoses)

Technical Machine Benefits

Prismatic guide
20 tools random charger
Prepared 4º axis
External air blowing and through the tool

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
