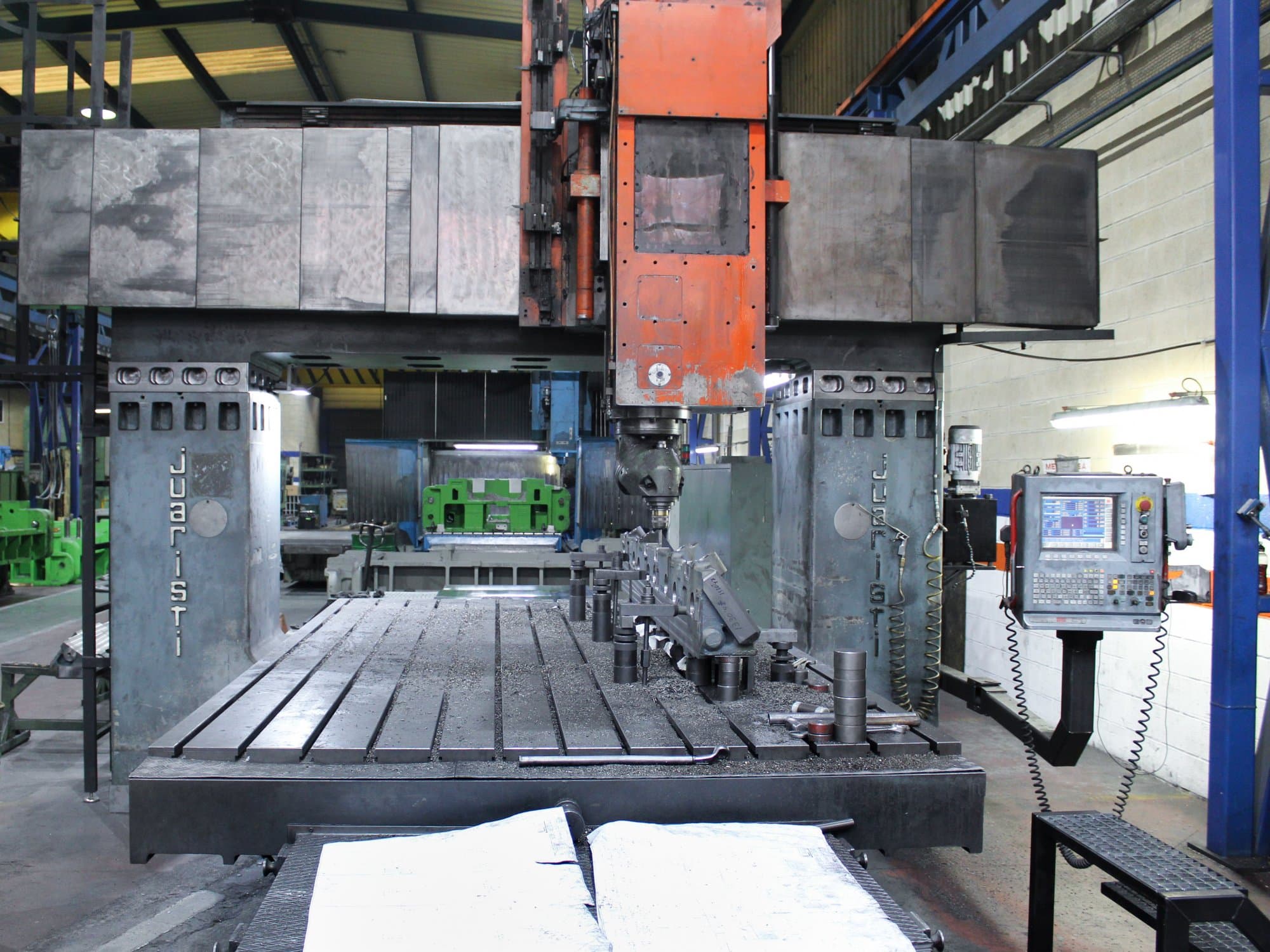

JUARISTI - FTF-1-CNC-COPES-MIL-JUA-1986-00001

General Data

• Measurements width: 4620 mm
• Measurements depth: 8144 mm
• Measurements height: 4873 + 300 mm
• Machine weight: 35000 Kg

Control Unit

• Model: C1
• Brand: FIDIA

Main drive

• Spindle motor power: 30 cv
• Tool taper: ISO 50

Movement

• X-AXIS Movement: 4000 mm
• X-AXIS Rapid traverse: 5000 mm/min
• Y-AXIS Movement: 2800 mm
• Y-AXIS Rapid traverse: 5000 mm/min
• Z-AXIS Movement: 1200 mm
• Z-AXIS Rapid traverse: 3000 mm/min
• U/V Movement: +/-75 x +/-75 mm

Table

• Outer length: 4000 mm
• Outer width: 2500 mm
• Distance between: 2800 mm
• Min distance between vertical spindle and table: 100 mm + 300 mm
• Max distance between vertical spindle and table: 1200 mm + 300 mm
